This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.
- Trunk: lid, anchor plates for trunk hinges - welded mounting points
- floor pan crossbars and more
- seat supports
- front end: firewall welds, windshield frame, dash panel (panel behind dash)
- Rear quarter: rear quarter window gutter, folding top compartment, rear arm rest supports, rear quarter panels
- Roof: drip rail, lamp supports, inner and outer rails, convertible top roof locking rails, roof panels
- center pillar

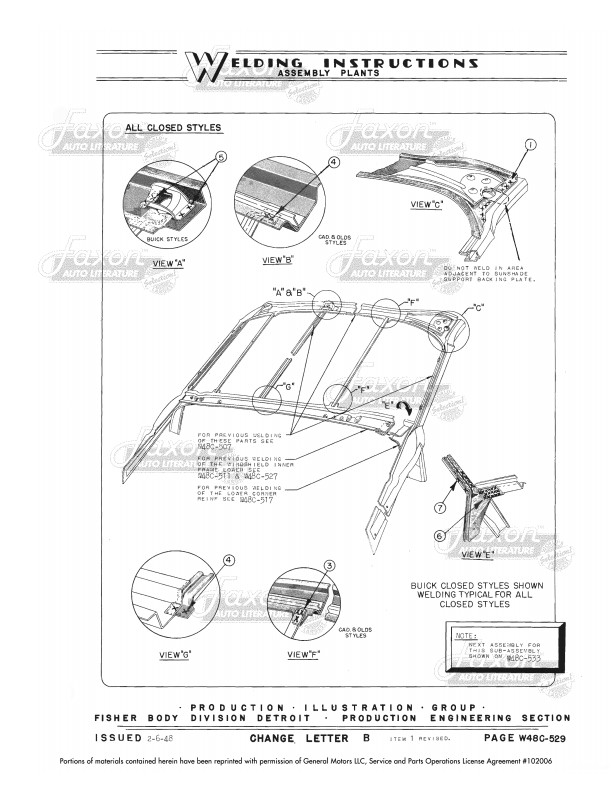

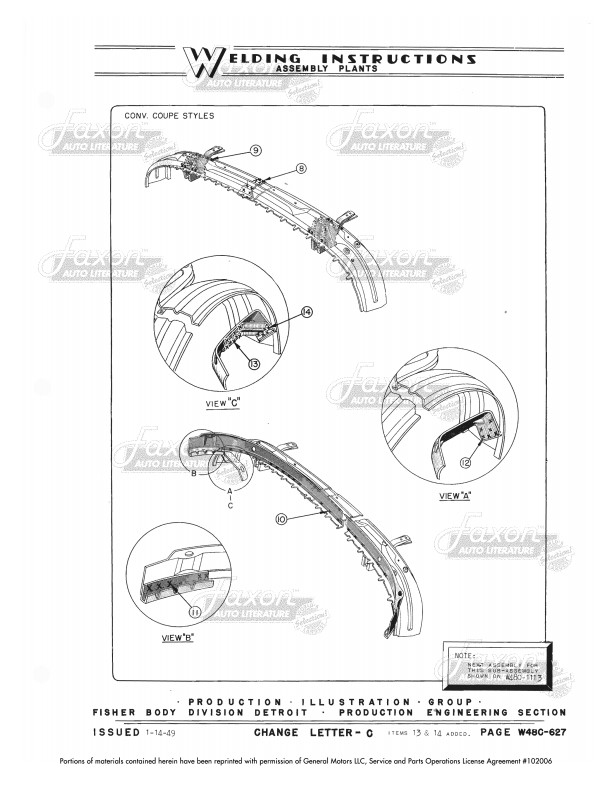

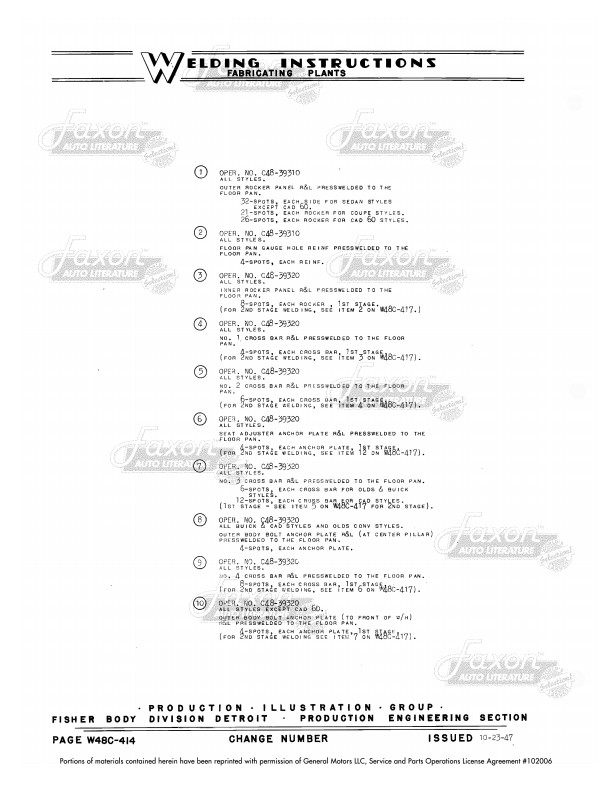

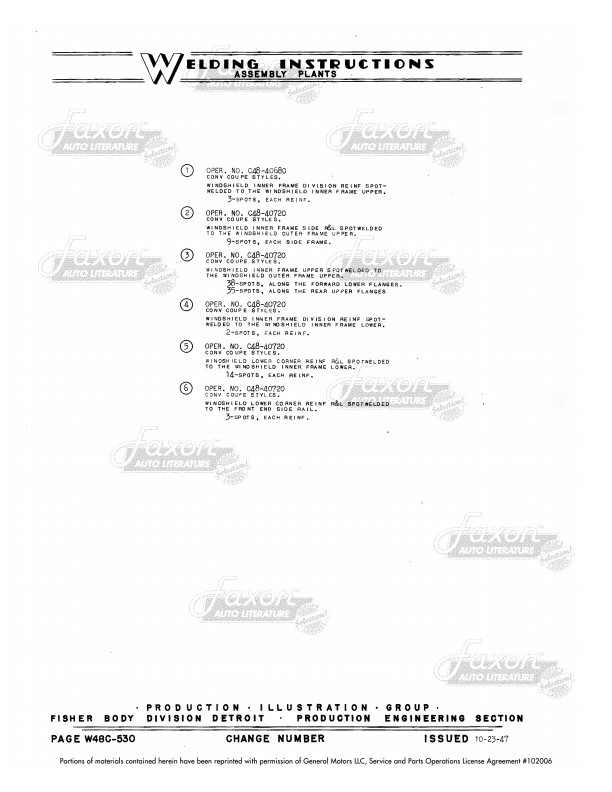

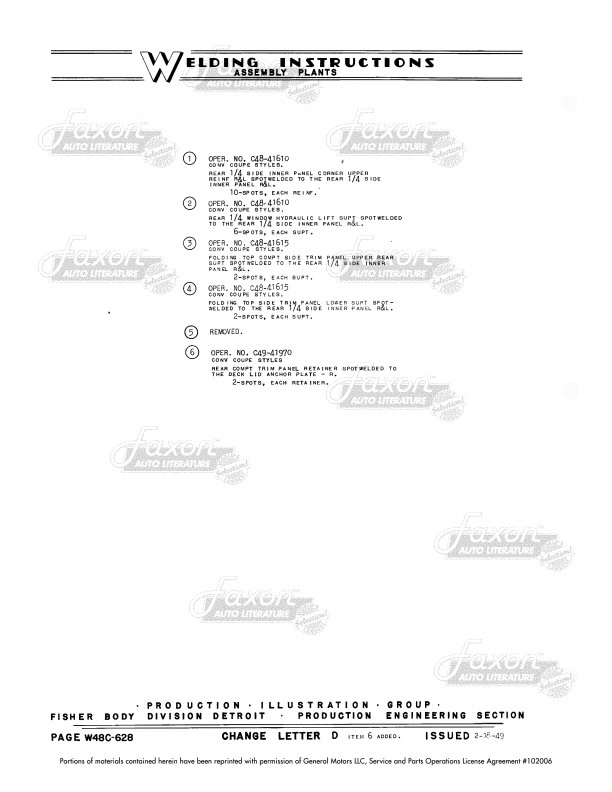

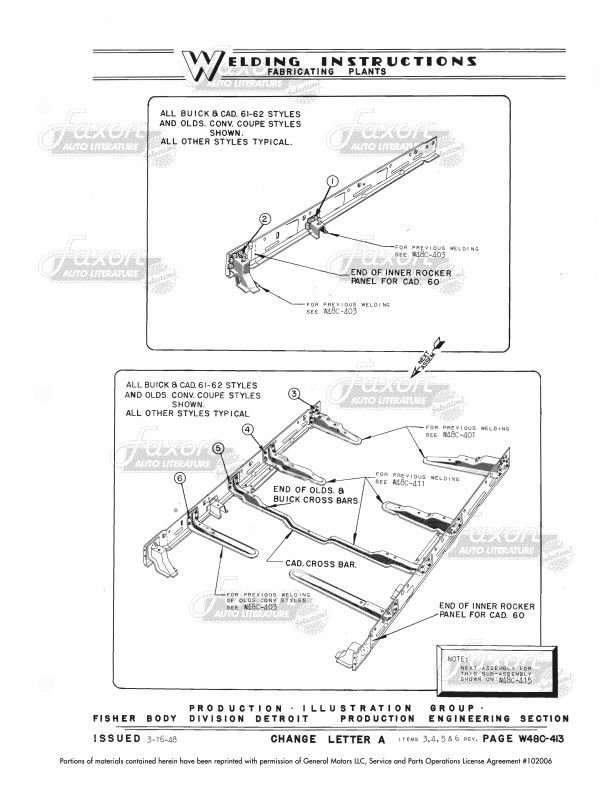

The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). The original that this book was made from was missing a few pages. All the topics listed above are covered in the book. Please see the sample page image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
Faxon Auto Literature
"Specifications Manual Cadillac 60, 61, 62 Oldsmobile 98 Buick Super & Roadmaster Body Welding Assembly Manual 1948-1949"
This item is a reproduction
8.50 x 10.75 x 0.50 inches
This manual covers 1948-1949 Olds 98, Buick Super, Roadmaster, Cadillac 60, 61, & 62 Series. Includes both convertible and closed cars. It shows both left hand drive and right hand drive models.
