1949-1960 Cadillac Engine Diagnosis Manual Reprint

Price: $20.00
  • Part #CC94960QCA11FLY1ED1
In stock now.
- +

This factory information shows you how to diagnose your engine. it explains how to carry out tests, sometimes with the aid of equipment such as a voltmeter or vacuum pressure gauge. You'll see step by step instructions for conducting the tests, with a diagram of the part and equipment, if needed. This manual is primarily for diagnosis. If a mechanical operation is required to correct the problem, you may need the shop manual for your vehicle in order to make the mechanical repair.

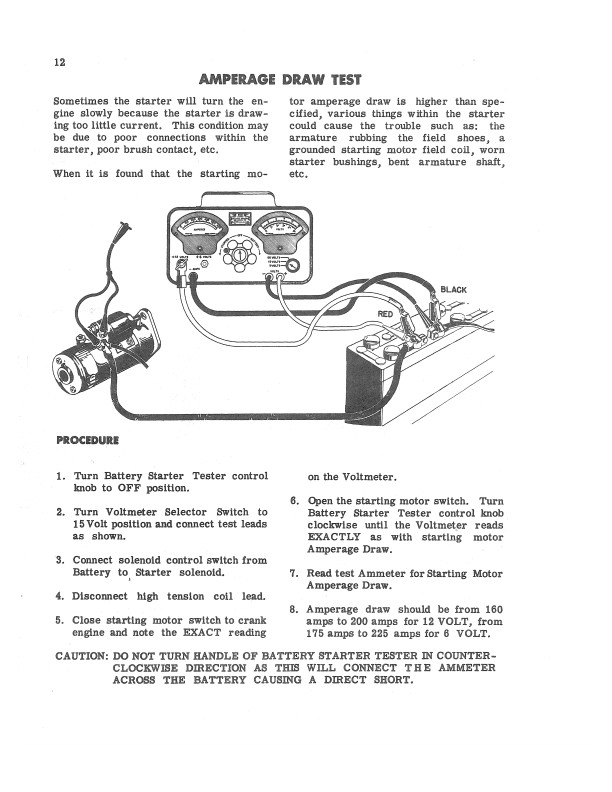

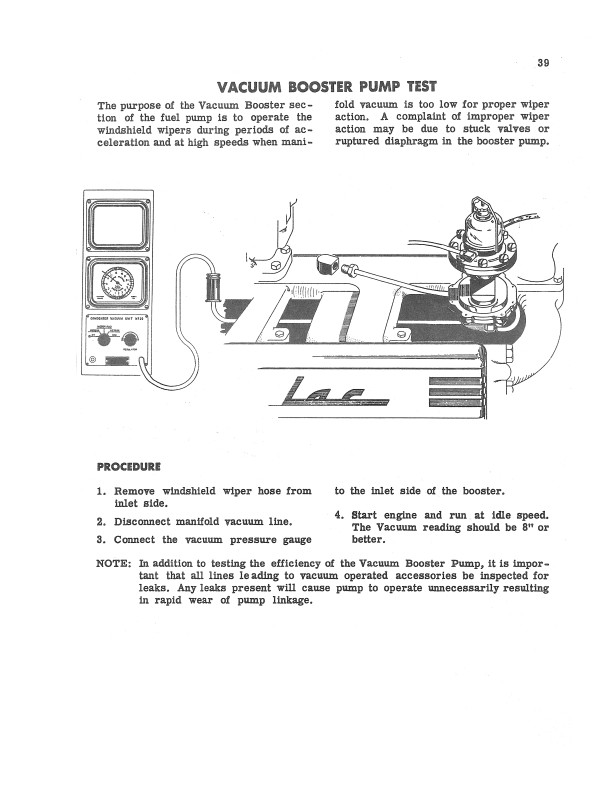

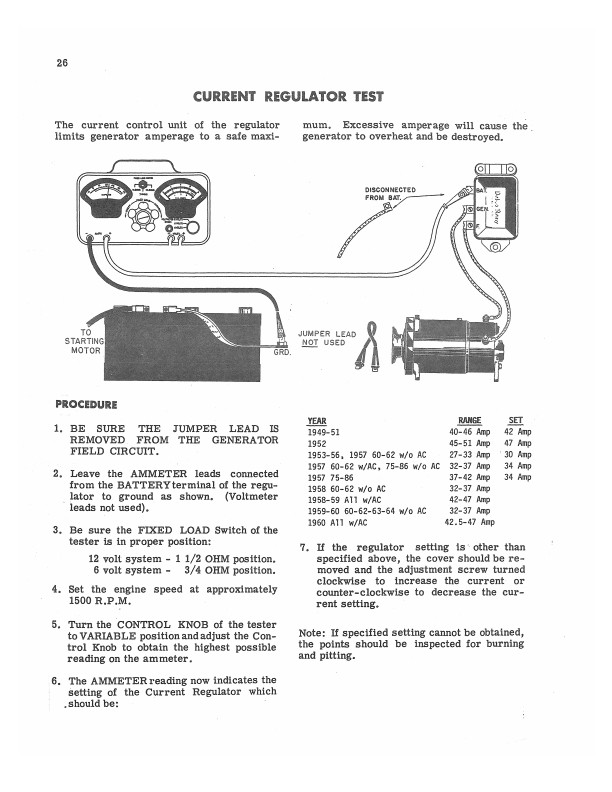

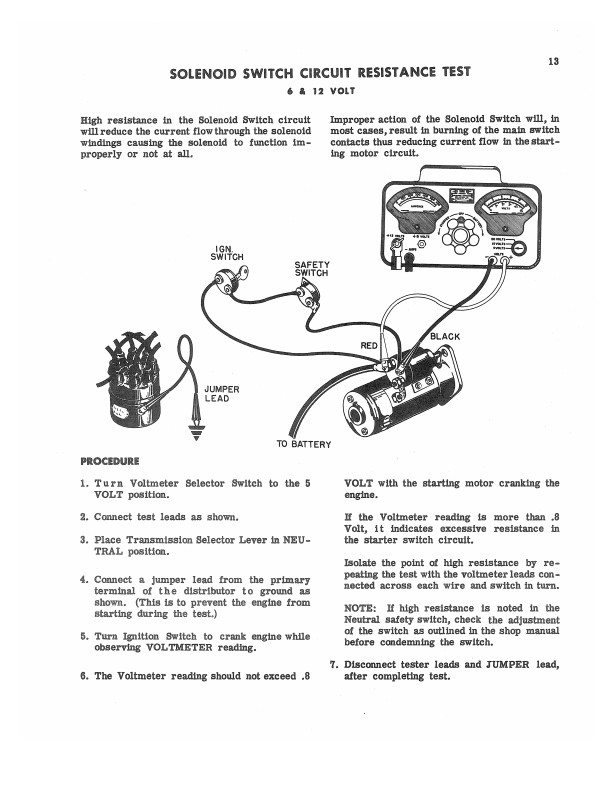

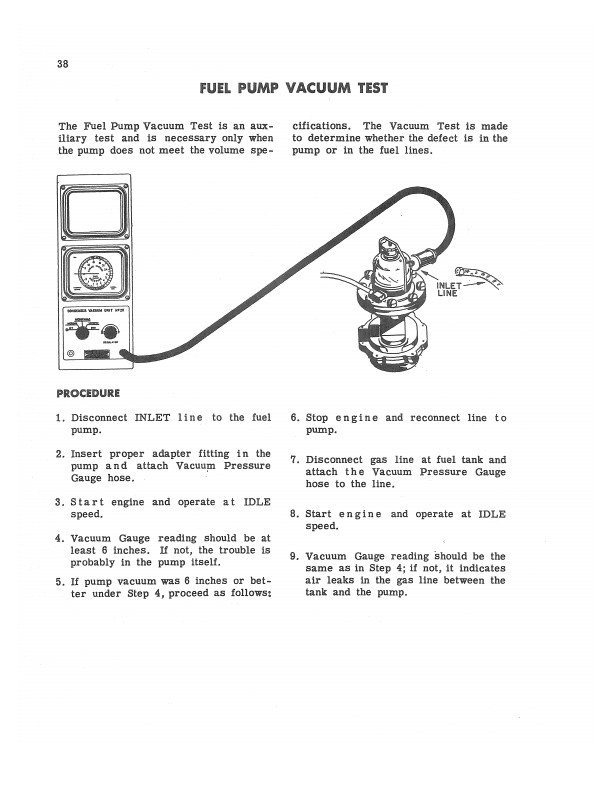

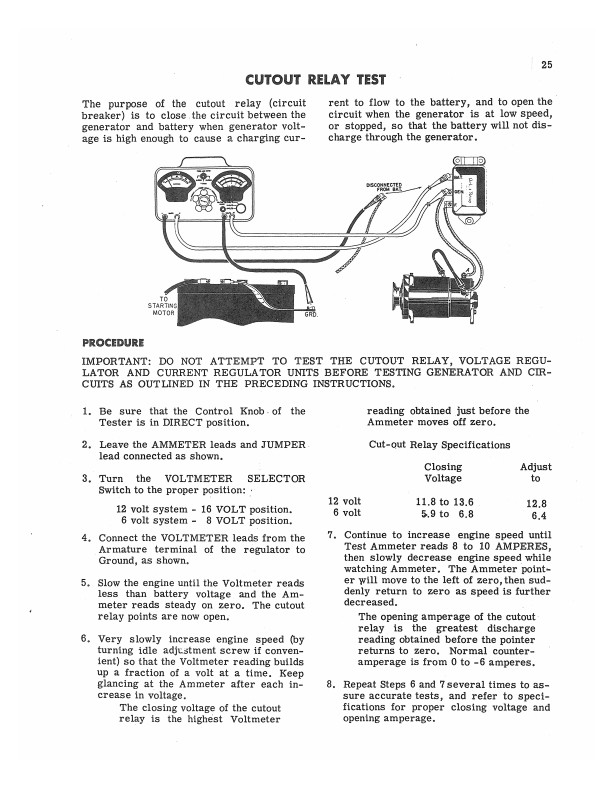

Test names include; battery, starting system, ground circuit, amperage draw, solenoid switch circuit, distributor point dwell, idle r.p.m, generator circuit resistance, regulator ground, accessory ground circuit, generator output, cutout relay, current regulator, voltage regulator, spark timing, manifold vacuum, secondary efficiency, cylinder balance, fuel system, air cleaner and automatic choke, idele speed circuit, accelerating system, fuel pump pressure and volume, fuel pump vacuum, vacuum booster pump, spark plugs, compression, ignition primary circuit resistance, ignition coil, coil secondary continuity, coil capacity, condenser, distributor, breaker point resistance, breaker plate spring tension, contact point dwell and cam, and vacuum advance..




Buy now to own this handy factory info.

Cadillac
"Cadillac thoro-Check 1949-1960 Engine Diagnosis Manual"
63
Sold Separately
This item is a reproduction
11.00 x 8.50 x 0.21 inches
CC94960QCA11FLY1ED1
Write a Review
1949 Cadillac Series 60 Special Fleetwood
1949-1951 Cadillac Series 61
1949-1960 Cadillac Series 62
1949-1960 Cadillac Series 75 Fleetwood
1950-1953 Cadillac Series 86 Commercial Chassis
1950-1960 Cadillac Commercial Chassis Hearse 2-Door
1950-1960 Cadillac Commercial Chassis Limousine 4-Door
1950-1960 Cadillac Commercial Chassis Sedan 4-Door
1950-1960 Cadillac Series 60 Fleetwood
1953-1960 Cadillac DeVille
1953-1960 Cadillac Eldorado
1957-1960 Cadillac Eldorado Brougham
1958 Cadillac Series 70 Fleetwood Eldorado
