1951 Fisher Body Welding Assembly Manual Reprint - Oldsmobile Super 88 Buick Special

Price: $29.00
In stock now.
- +

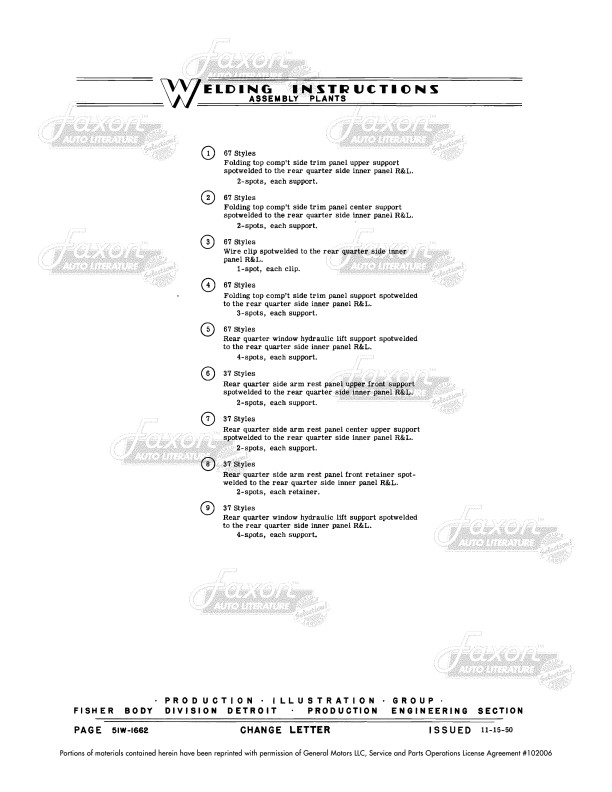

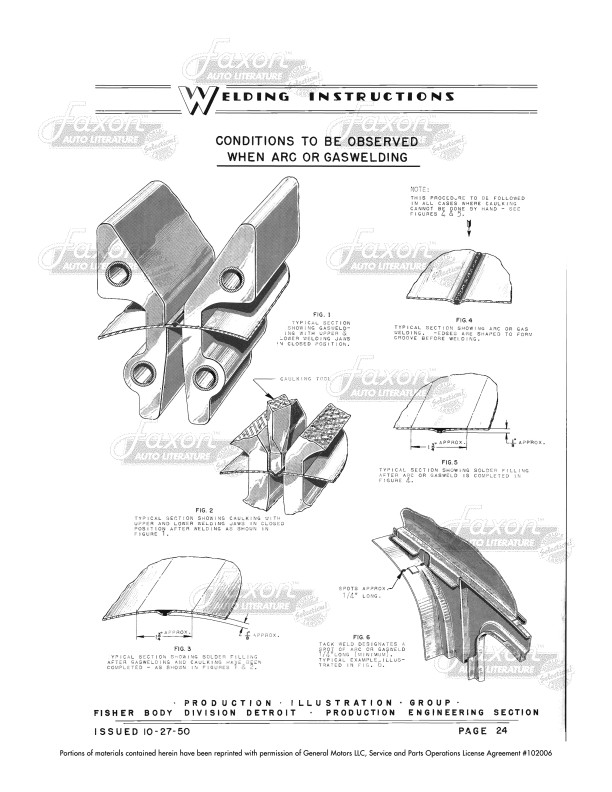

This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.

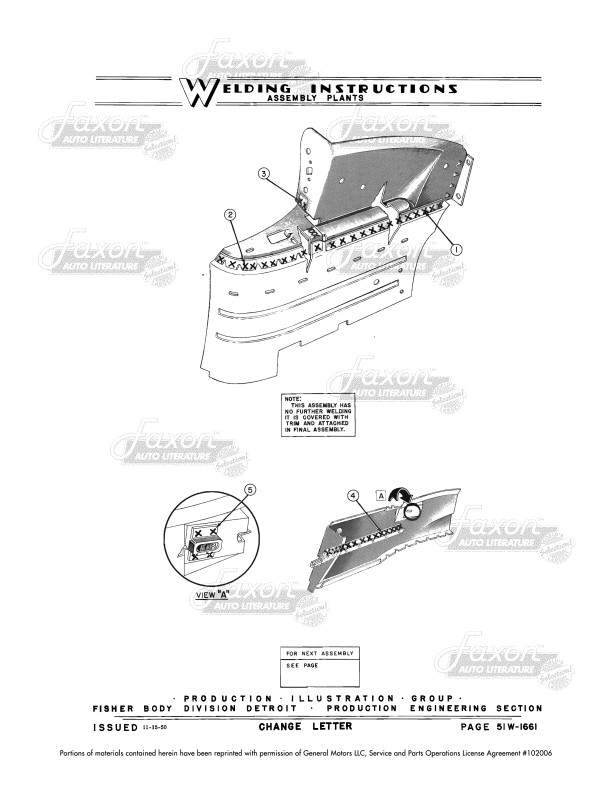

  • Rear quarter: wheelhouse, folding top compartment, lock pillar, inner and outer quarter panels
  • Seats: Front seat frame, rear seat back support.

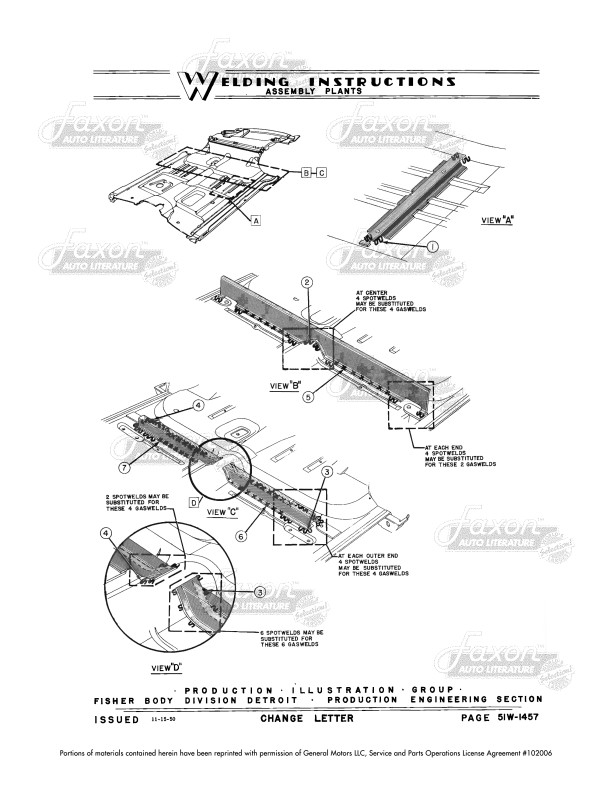

  • Underbody: how floor pan is welded in, and also how other parts are welded to floor pan
  • Roof: roof rails, dome lamp support
  • Final assembly: welding many of the above large parts to each other, glass channels, roof panels.

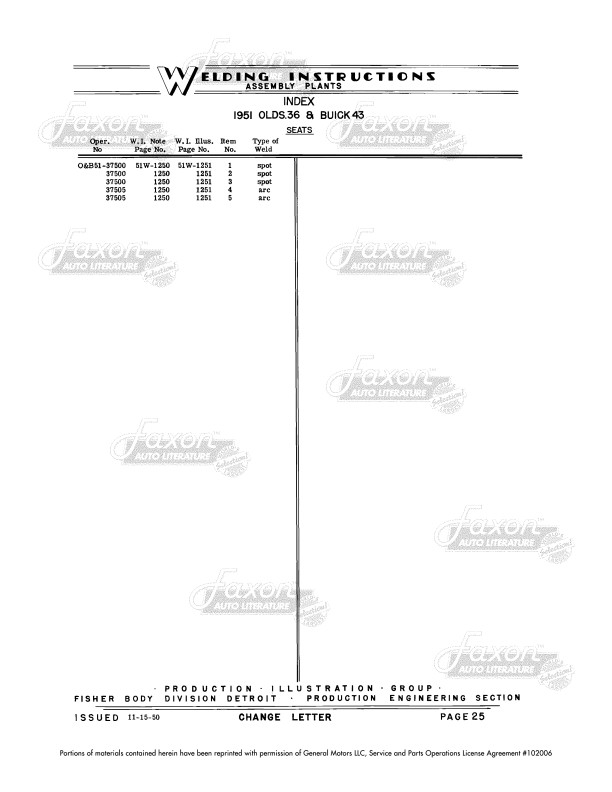

    The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the table of contents image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
  • "Specifications Manual Buick Special Oldsmobile Super 88 Body Welding Assembly Manual 1951"
    144
    Sold Separately
    This item is a reproduction
    10.75 x 8.30 x 0.25 inches
    BK95151SPA11FLY1EAW
    Write a Review
    This manual covers all body styles of 1951 Buick Special and Oldsmobile Super 88 (does NOT cover Olds Standard or Deluxe 88).
    1951 Buick Special
    1951 Oldsmobile Super 88
