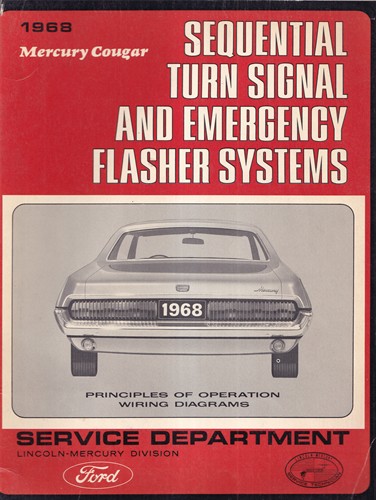

This book covers principles of operation and wiring diagrams. It shows color schematics of what wires have
power when the turn signal switch is in each position and when each light flashes. It is a supplement to the 1967 book, (that book NOT this one, has more pages and includes and extensive troubleshooting guide as well as illustrations of the connectors). For more complete information, use with the 1967 book.
You get in-depth explanations and wiring diagrams for each
stage of the sequencing operation. You will learn the color-codes and which wires
go to each connection.

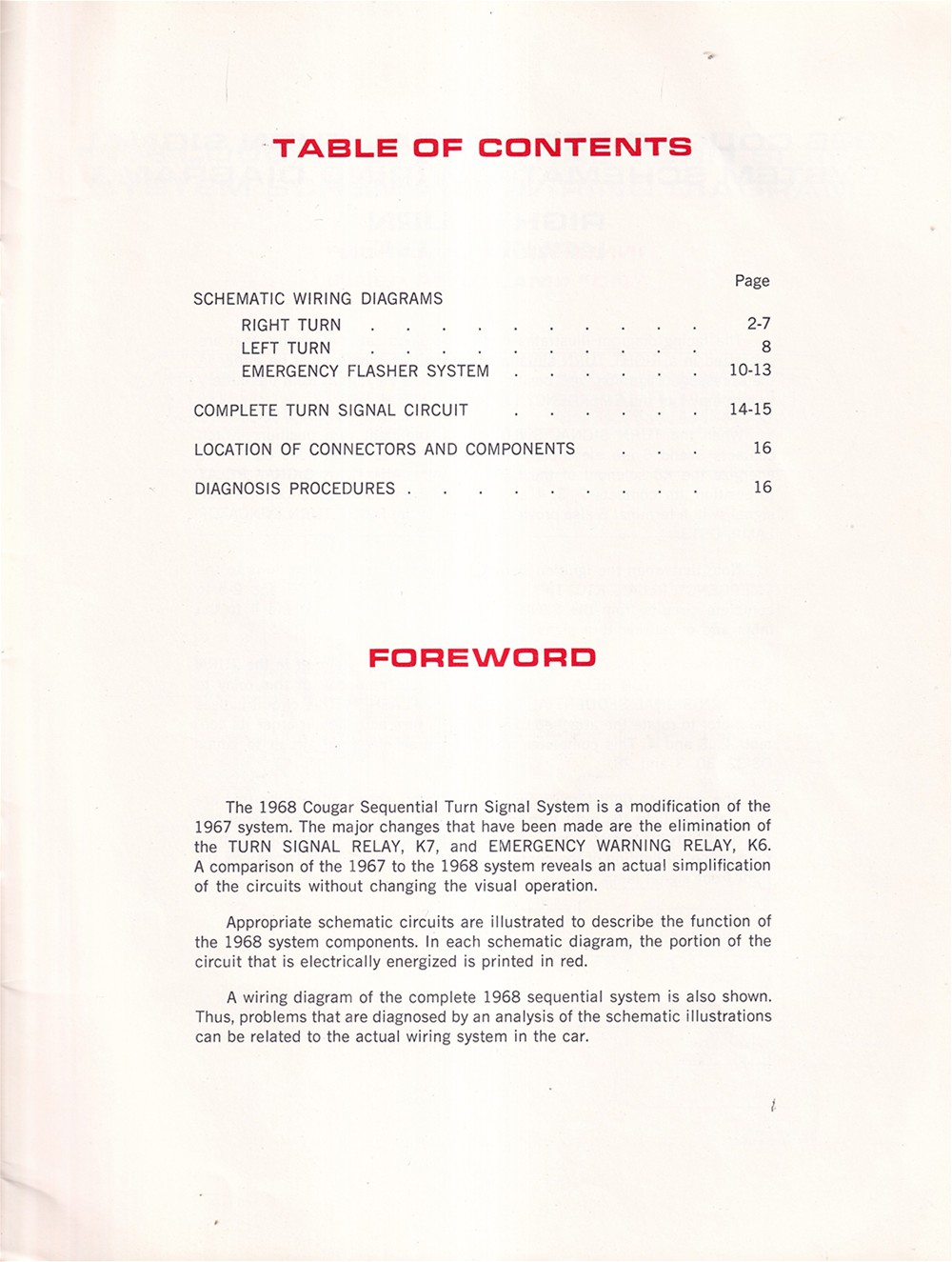

Book contents include:

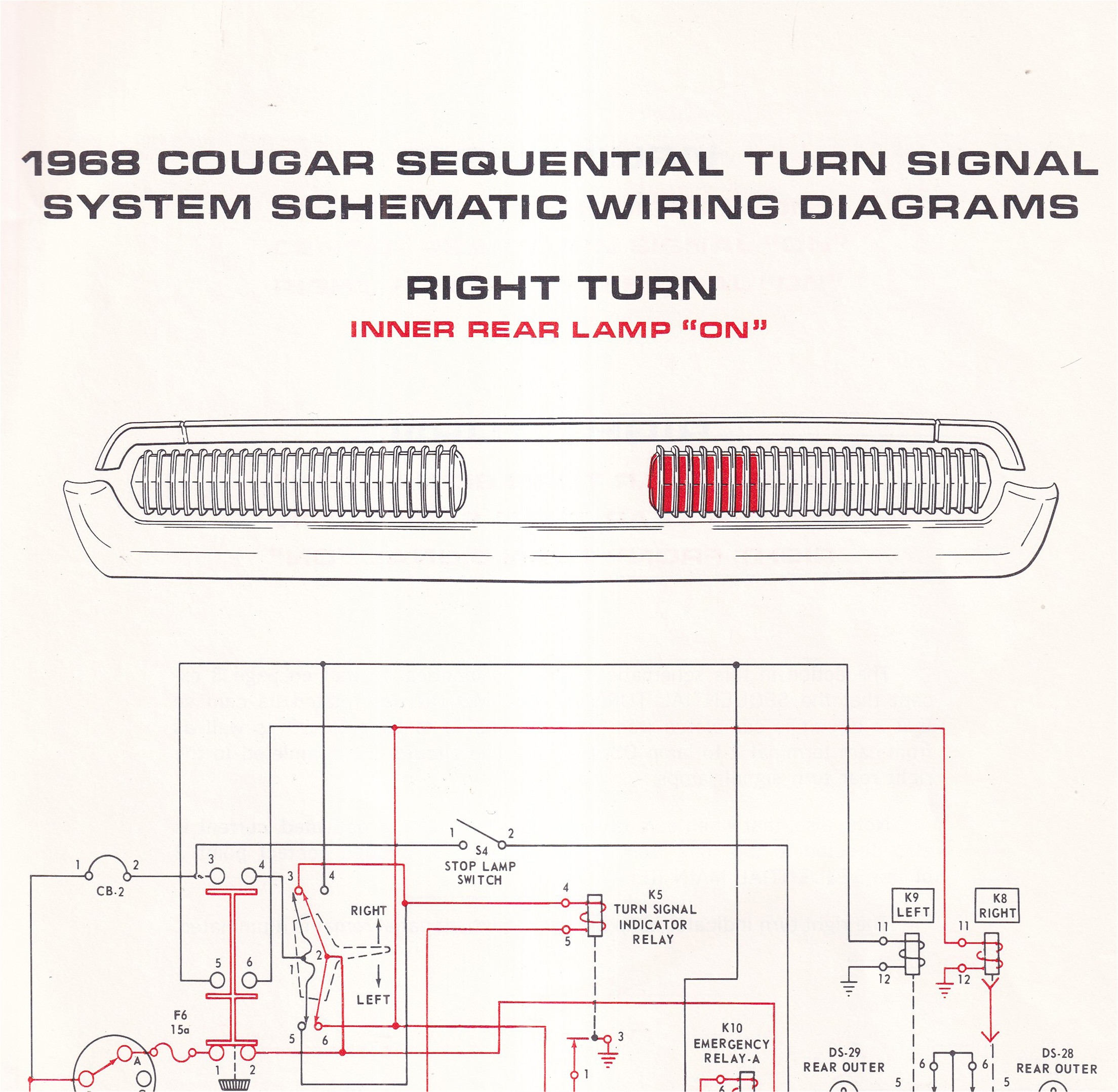

- Schematic wiring diagrams (13 pages)
- right turn

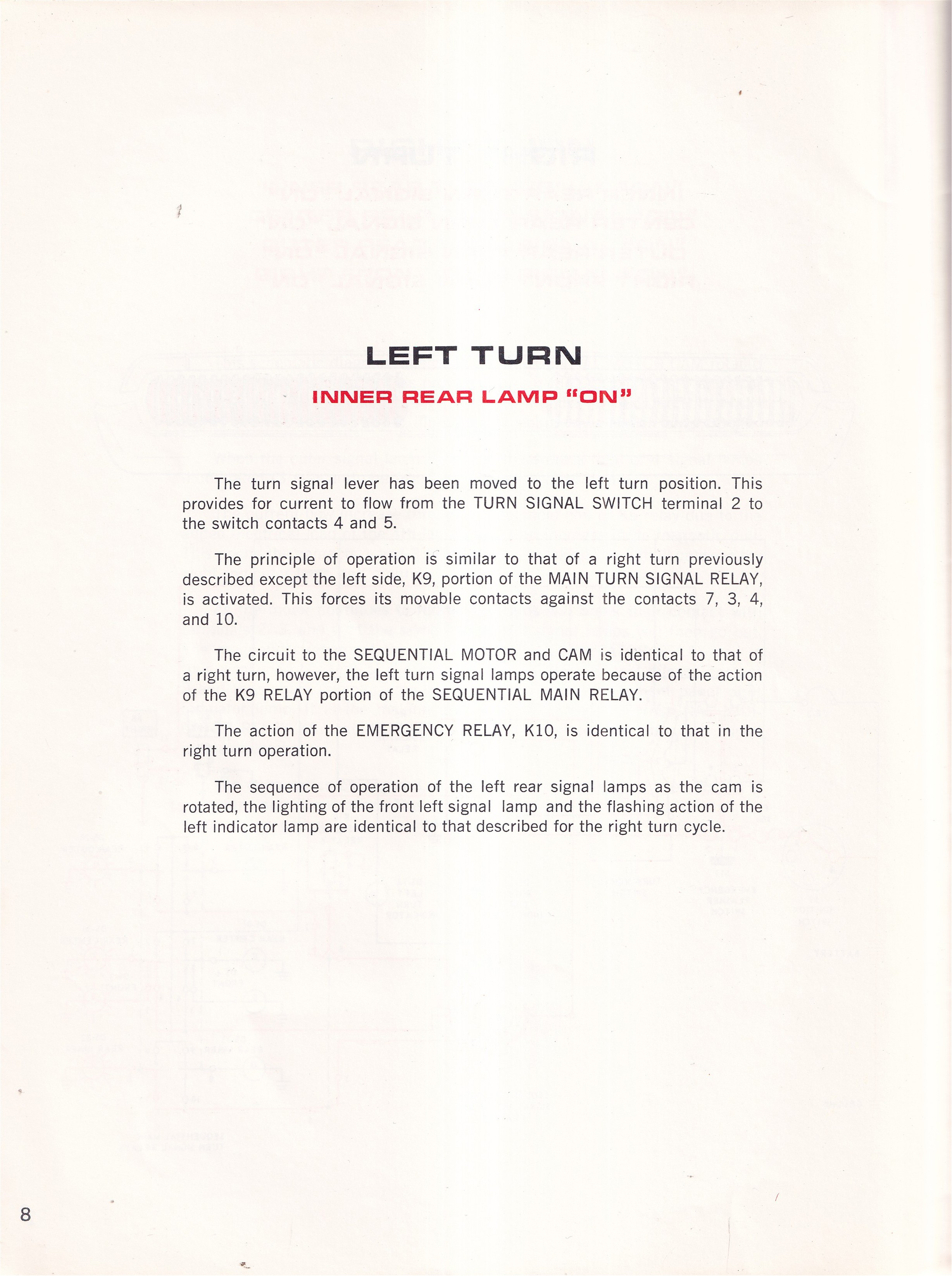

- left turn
- emergency flasher system

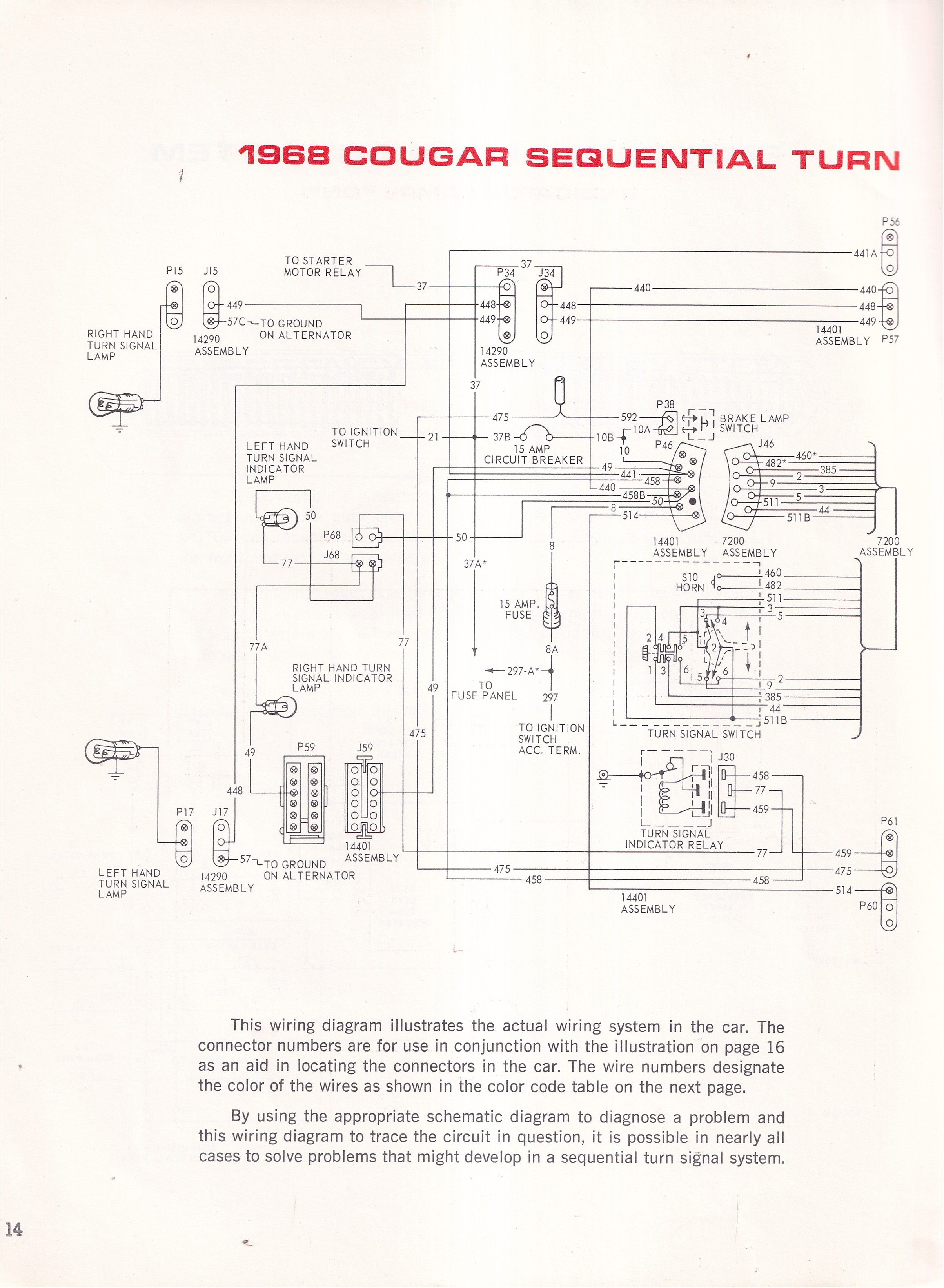

- Pictorial diagram of sequential turn signal system
This original Ford publication is printed in 3-color - black, white, and orange. Buy now to own the best manual for your turn signals.
