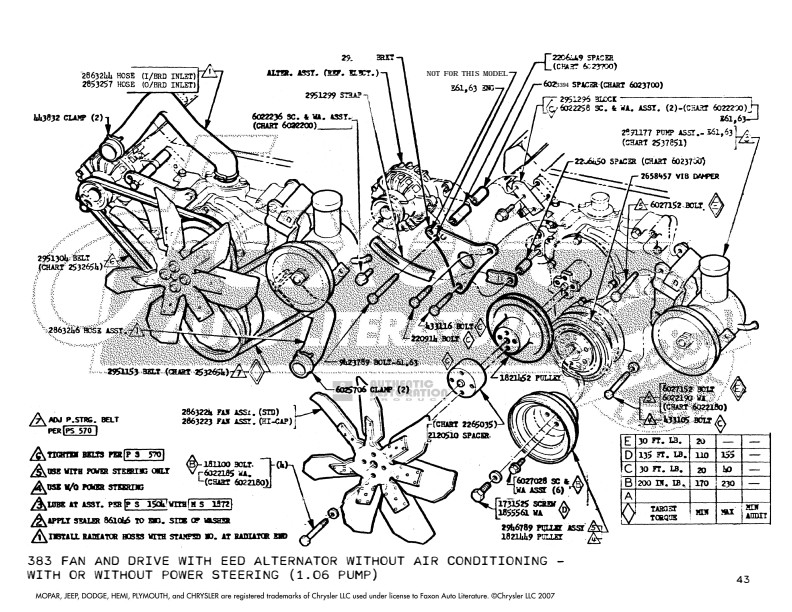

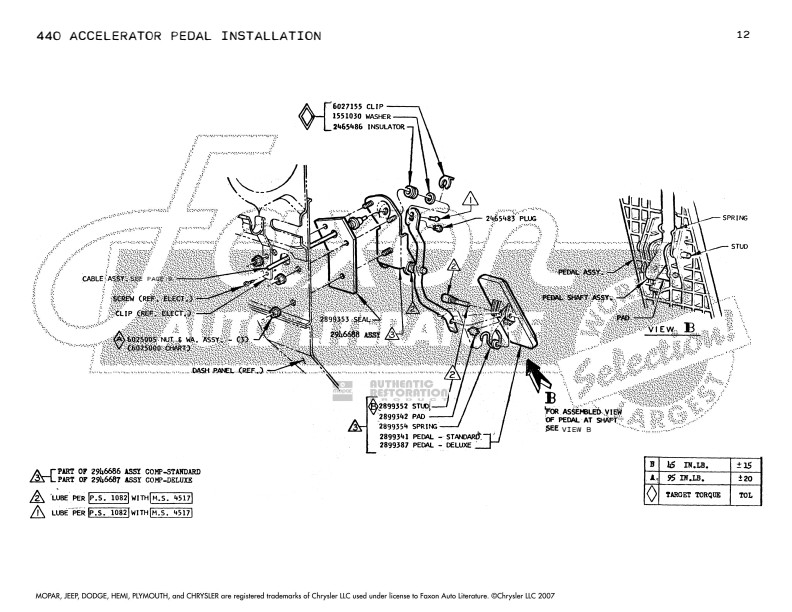

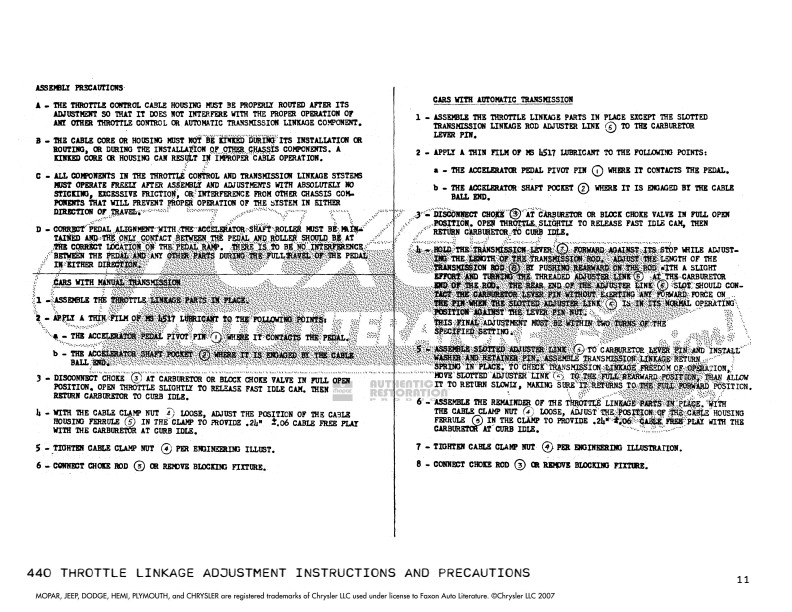

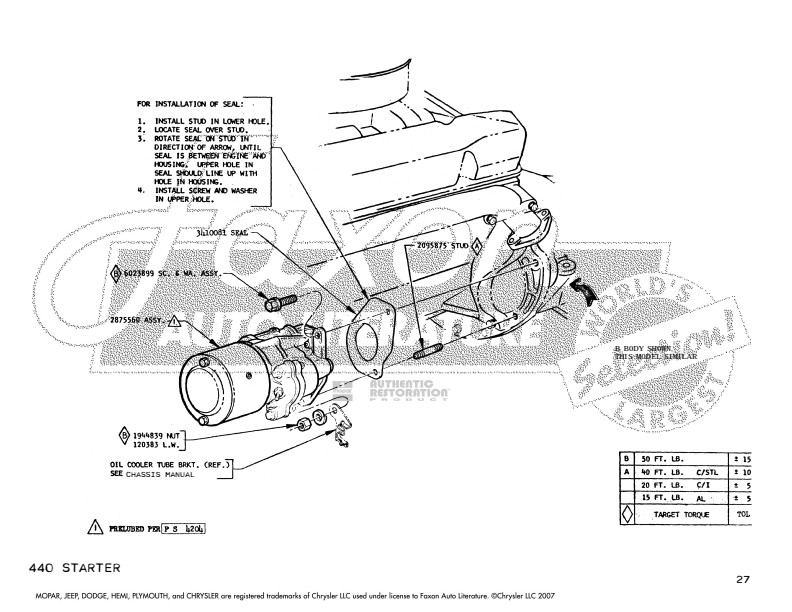

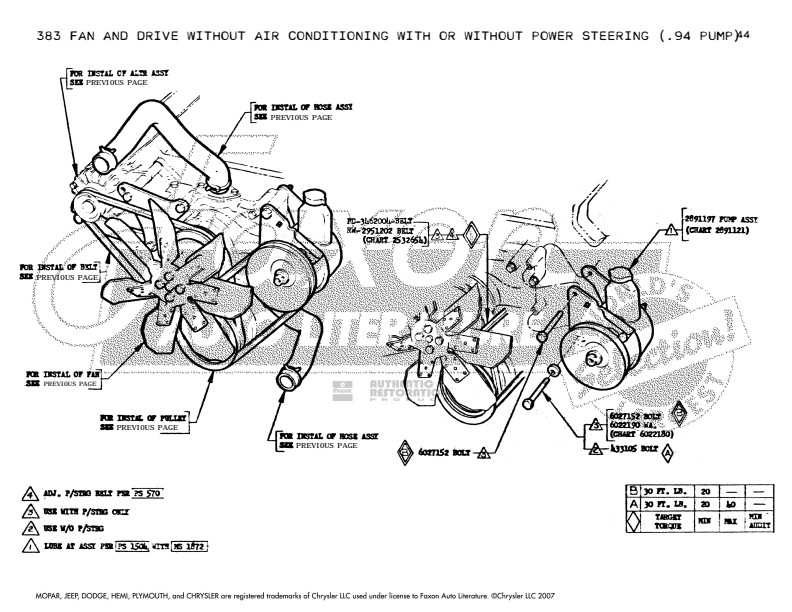

This book is a reproduction of a manual originally used by workers on the factory assembly lines putting cars together. You'll see page after page of detailed illustrations of how each part fits others. Use the part numbers and illustrations to help you verify original parts, to reassemble parts you are restoring, or to replace missing parts. You’ll find detailed parts illustrations and torque specs you haven’t seen anywhere else. This reprinted manual gives you assembly illustrations for attaching parts to your engine, including hoses, belts, lines, linkages, and mounts. It does NOT show internal engine parts (pistons, for example). You will find illustrations for assembly of carburetor (shows carburetor installation, but not internal carburetor parts), fuel lines, vacuum lines, throttle linkage (including adjustment instructions), accelerator pedal, fan and drive, engine mounts/supports, and starter. The book shows exploded views of these parts and includes original part numbers. There are illustrations on just about every one of the book's 75 pages. It shows all engines, including 318, 383, and 440. This book is in new condition. Like all assembly manuals, this is reproduced from a book made for use inside the factory, and never intended for the public. Therefore, the print (like the print in original assembly manuals) is occasionally light. We have made every effort to restore the book where possible. It includes a table of contents and a page title for each picture. Buy now to own this never before available book.
"1969 Dodge Engine Equipment Assembly Manual Polara, Polara 500, and Monaco"
This item is a reproduction
11.00 x 8.50 x 0.25 inches
This manual covers all 1969 Dodge Polara and Monaco models, including 500
1969 Dodge Monaco
1969 Dodge Polara
1969 Dodge Polara 500
1969 Dodge Monaco 1969 Dodge Polara
