Condtion Price Qty
Very Good $19.00

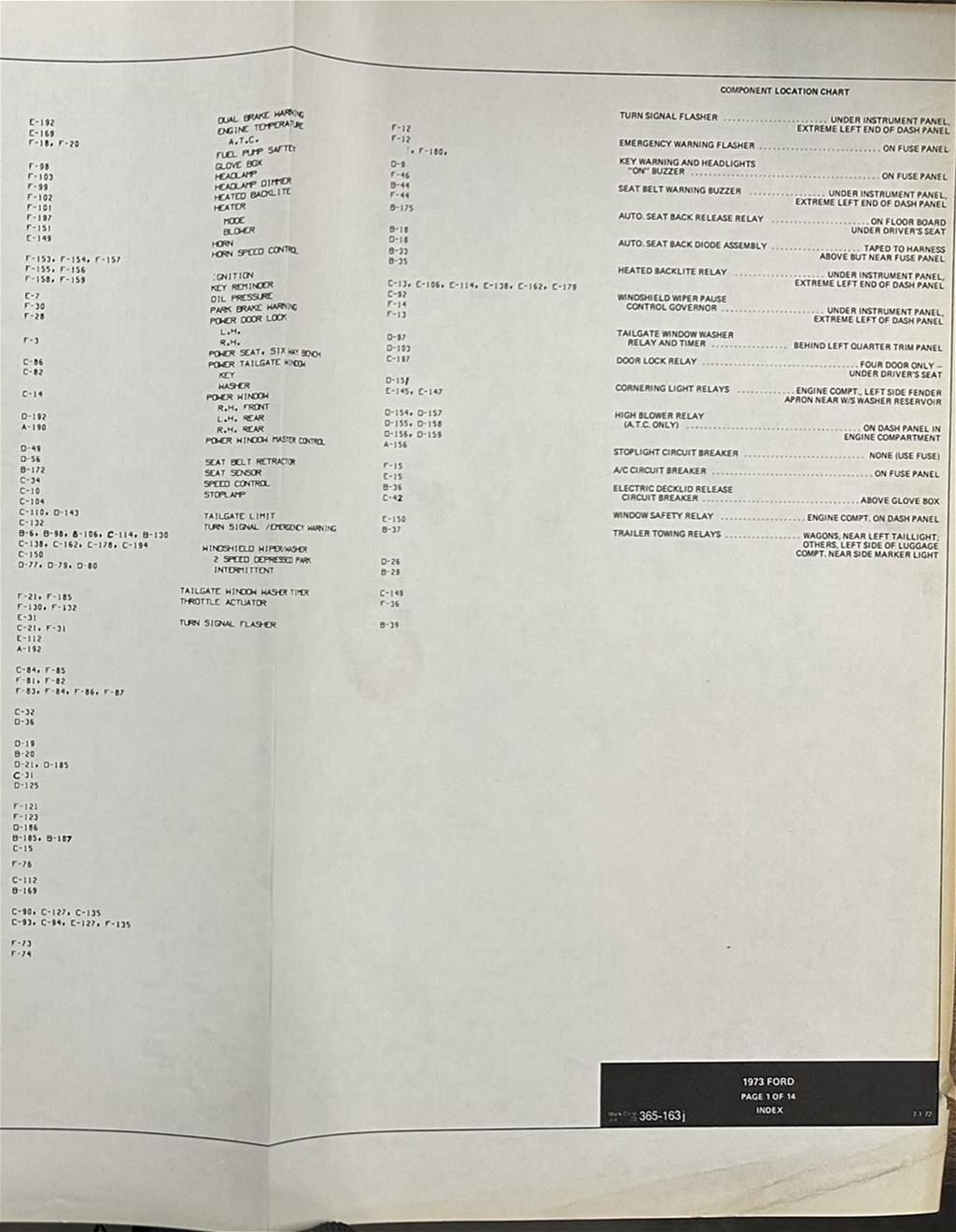

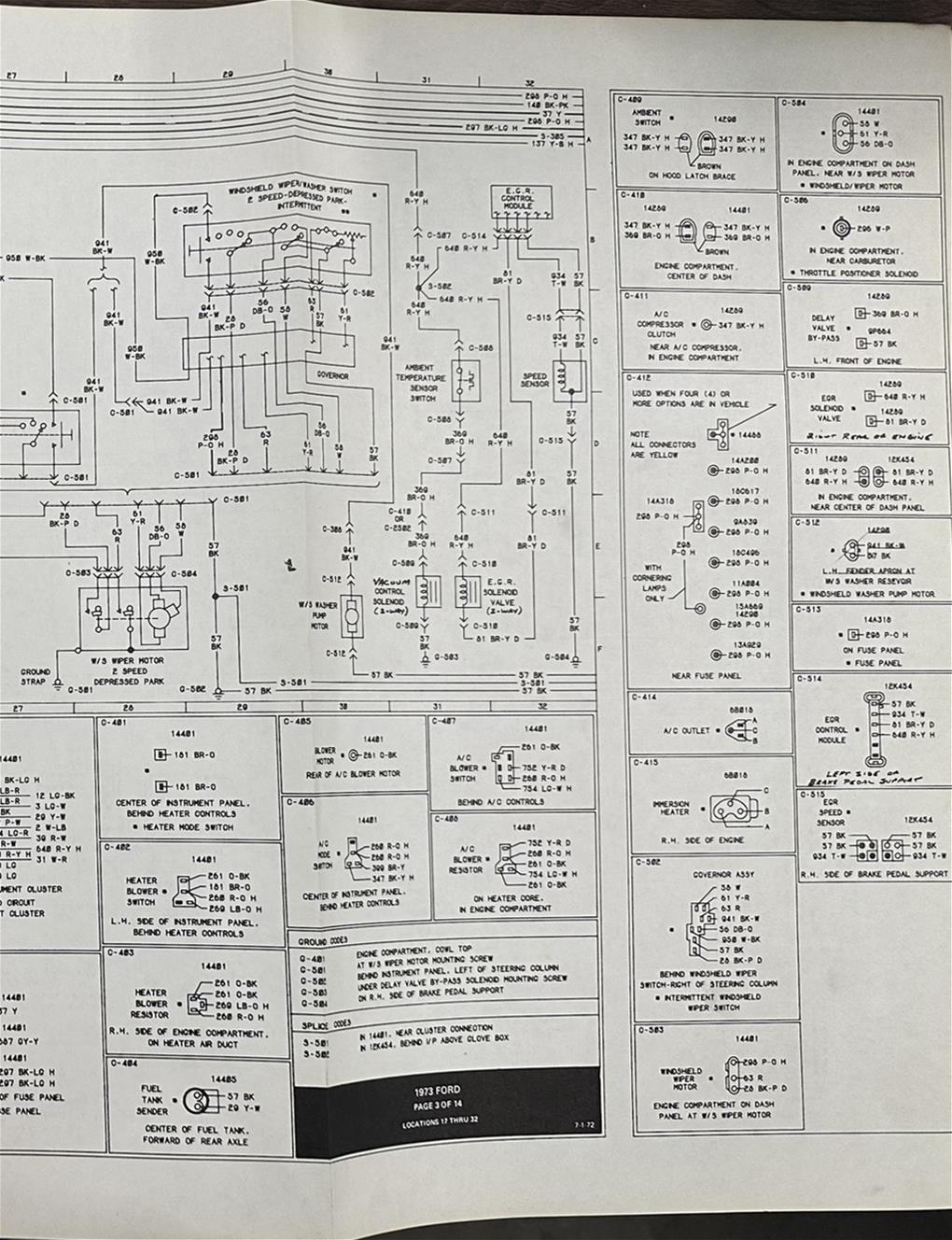

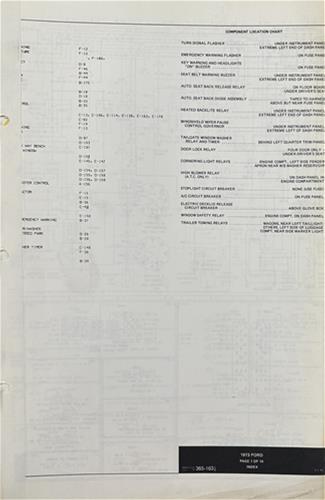

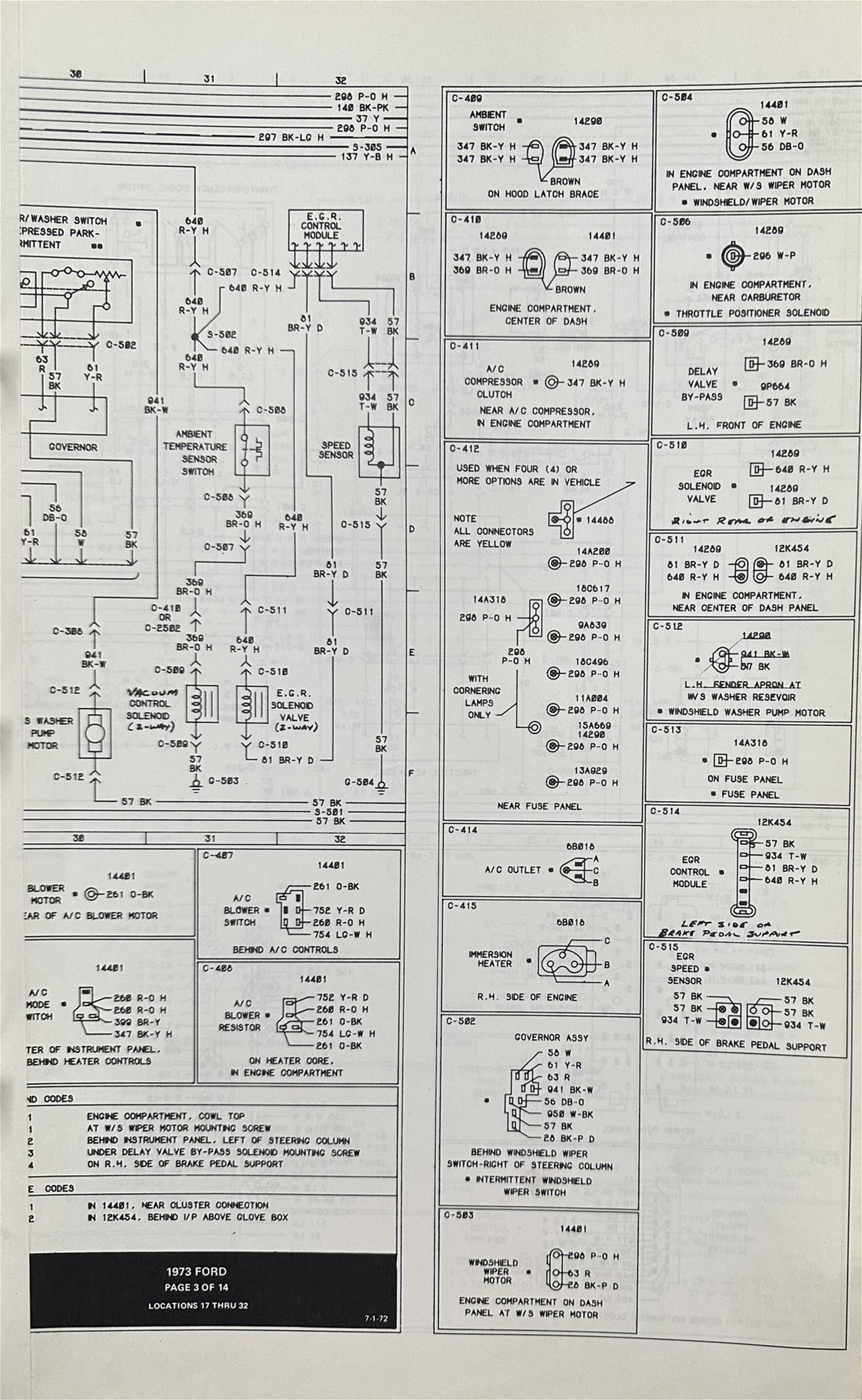

This is the original wiring diagram printed by Ford for dealer mechanics. You can follow all of the wiring in your vehicle from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 11" x 17" when folded up, and opens up to 11" by 27". Diagrams may be folded in half for shipping. The diagram pictured is an example of this type when unfolded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info—the factory wiring diagram.
1973 Car Wiring Diagrams Ford
14
Included
This item is original.
17.00 x 11.00 x 0.25 inches
365163JA
Write a Review
1973 Ford Country Sedan
1973 Ford Country Squire
1973 Ford Custom 500
1973 Ford Galaxie 500
1973 Ford LTD
1973 Ford LTD Brougham
1973 Ford Ranch Wagon
1973 Ford Country Sedan 1973 Ford Country Squire 1973 Ford Custom 500 1973 Ford Galaxie 500 1973 Ford LTD 1973 Ford Ranch Wagon
