This reprinted manual shows you exploded views of the interior of your car, and includes original part numbers. Use this manual to help you disassemble or reassemble the interior, and/or to help identify parts that may be missing or incorrect. See exploded views of:
- door panels
- arm rests
- scuff plates
- coat hooks
- handles & other interior trim
- window interior moldings
- trunk interior panels
- seat belts
- seats
- headliner
- sun visors
- quarter panel trim
- package tray trim
- carpet
- vinyl roof

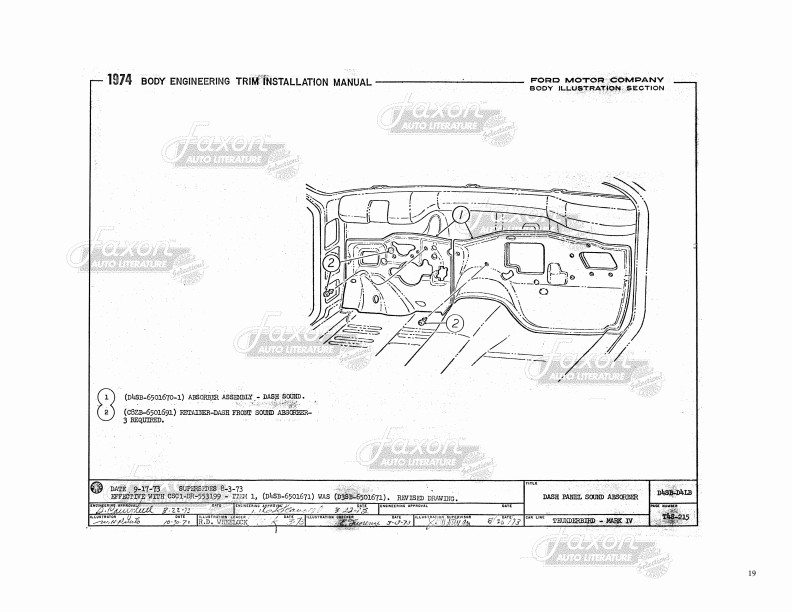

You will find out the locations of dozens of sound absorbers (insulation), water seals, and more. There are exploded views and illustrations on just about every one of the book's pages. Like all assembly manuals, this is reproduced from a book made for use inside the factory, and never intended for the public. Therefore, the print (like the print in original assembly manuals) is occasionally light. Some of the print in this book is small. Each page has a watermark in the background like the sample images shown here. New condition. Go on and tear that car apart! This book will help you put it back together.
