Condition Price Qty
Very Good $14.00

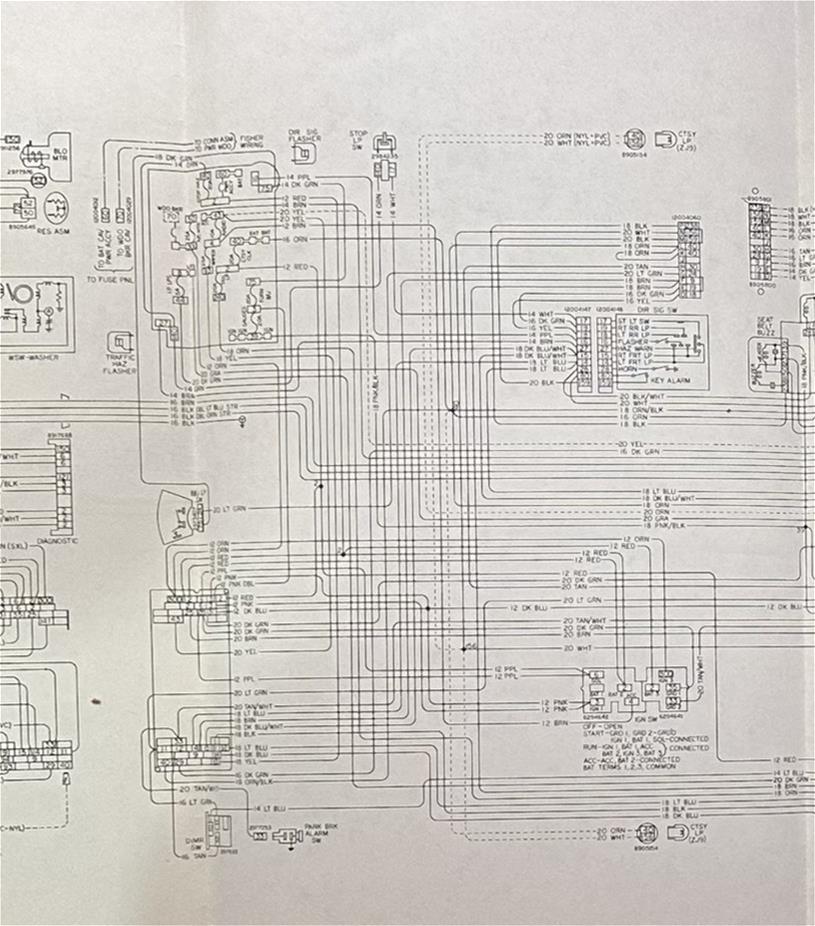

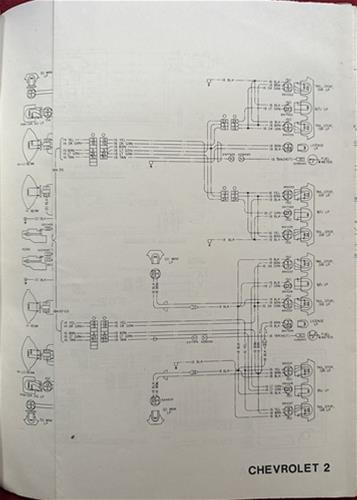

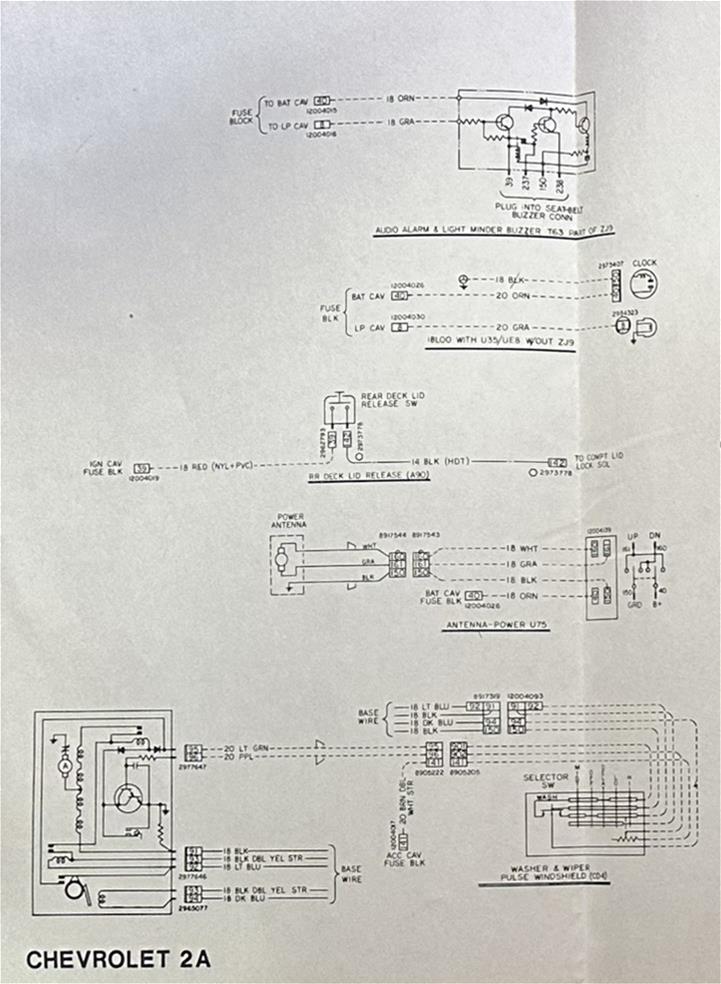

This is the original wiring diagram printed by GM for dealer mechanics. You can follow all of the wiring in your vehicle from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 8.5" x 11" when folded up, and opens up to 11" by 31". The diagram pictured is an example of this type when folded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info—the factory wiring diagram.
1977 Cars Wiring Diagram Chevrolet
1
Included
This item is original.
11.00 x 8.50 x 0.10 inches
ST35977-2
Write a Review
1977 Chevrolet Caprice Classic Coupe 2-Door
1977 Chevrolet Caprice Classic Estate Wagon 4-Door
1977 Chevrolet Caprice Classic Landau Coupe 2-Door
1977 Chevrolet Caprice Classic Sedan 4-Door
1977 Chevrolet Impala Custom Coupe 2-Door
1977 Chevrolet Impala Landau Coupe 2-Door
1977 Chevrolet Impala Sedan 4-Door
1977 Chevrolet Impala Wagon 4-Door
