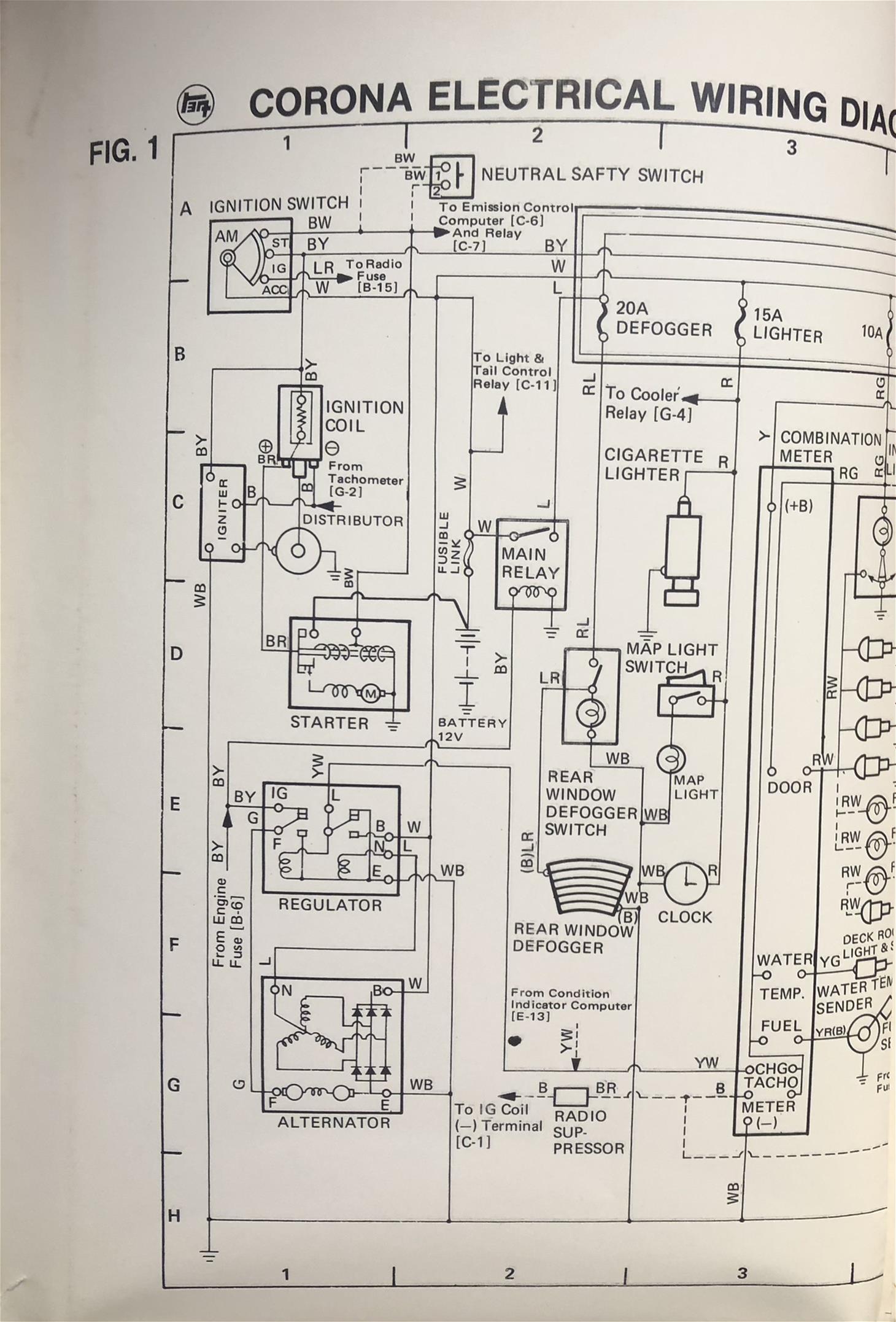

Written for Toyota dealership mechanics, this factory-printed wiring diagram shows you how to follow the wiring from bumper-to-bumper. It will help you understand connector configurations, and locate and identify circuits, relays, and grounds. You will not find these wiring diagrams in the factory shop manual. Wiring diagrams are black and white, but they frequently have color codes printed on each line of the diagram that represents a wire. Buy now to own the best wiring diagrams manual for your vehicle.

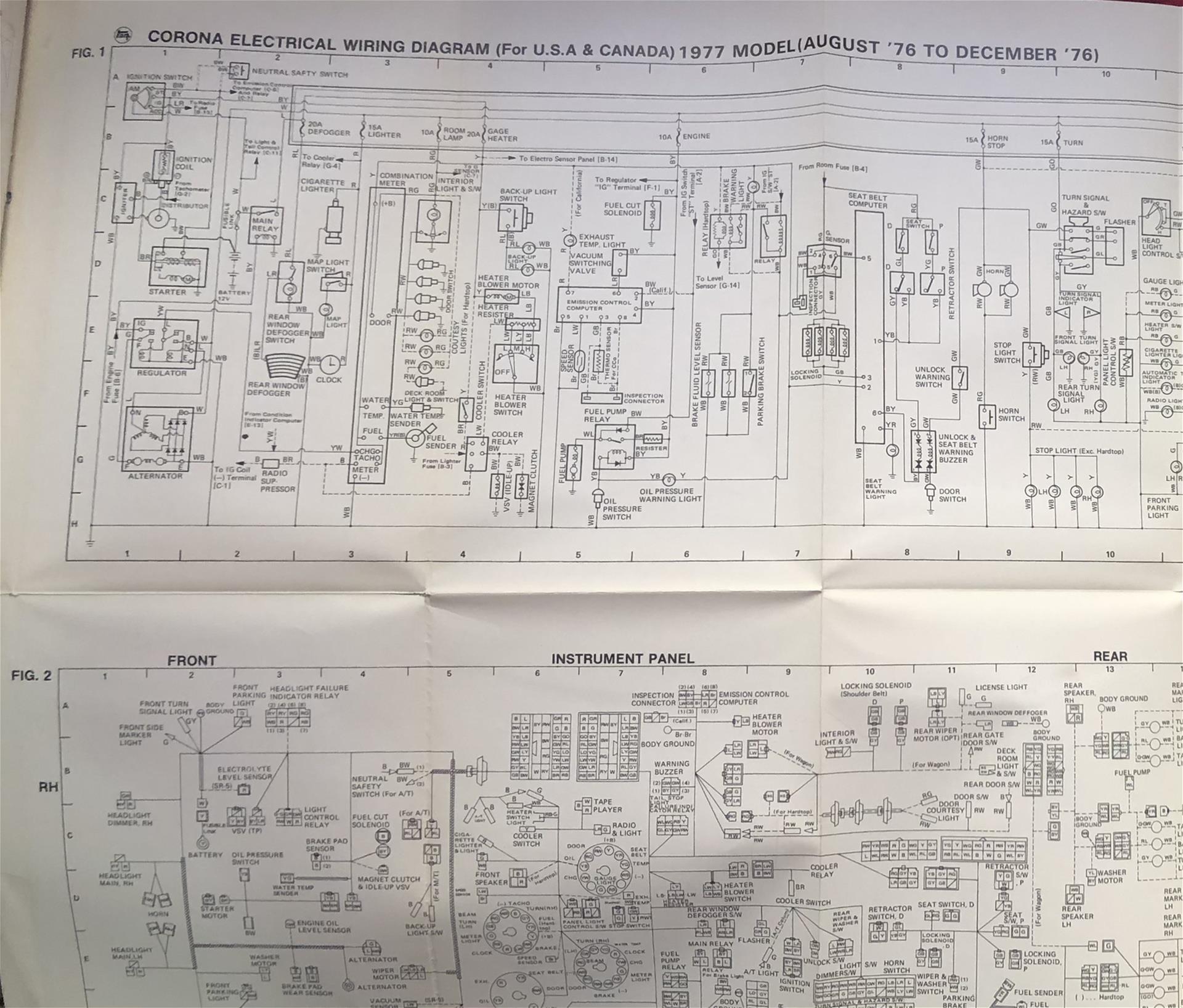

"Corona Electrical Wiring Diagram For U.S.A. & Canada 1977 Model"
This item is original.
22.25 x 35.25 x 0.05 inches
98922 CORONA 76
Covers Toyota Corona models built from August 1976 to December 1976 sold in the USA and Canada.
1977 Toyota Corona Custom Sedan 2-Door
1977 Toyota Corona DLX Hardtop 2-Door
1977 Toyota Corona DLX Sedan 4-Door
1977 Toyota Corona DLX Wagon 4-Door
1977 Toyota Corona SR5 Hardtop 2-Door
1977 Toyota Corona
