Condition Price Qty
Very Good $14.00

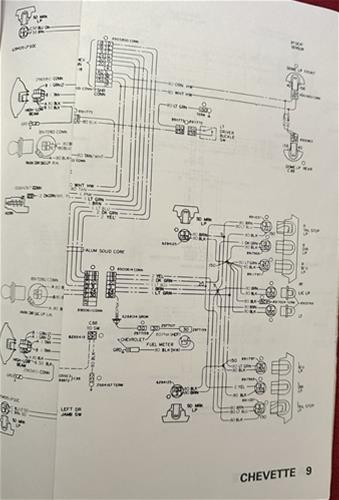

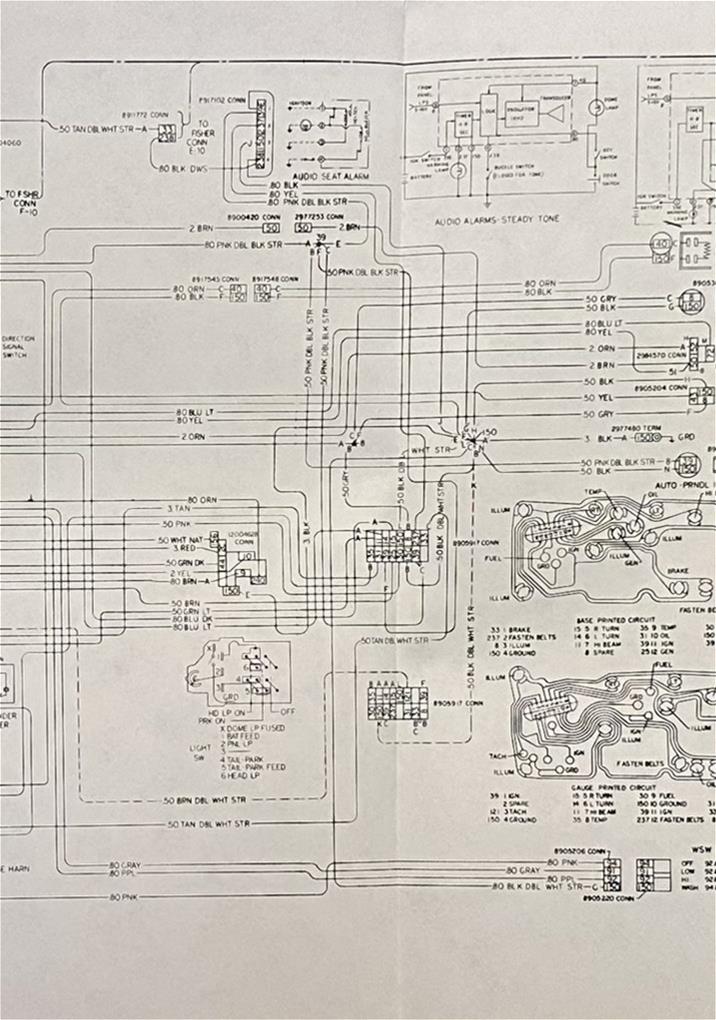

This is the original wiring diagram printed by GM for dealer mechanics. You can follow all of the wiring in your vehicle from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 8.5" x 11" when folded up, and opens up to 11" by 31". The diagram pictured is an example of this type when folded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info—the factory wiring diagram.
1979 Cars Wiring Diagram Chevette
This item is original.
11.00 x 8.50 x 0.10 inches
Write a Review
1979 Chevrolet Chevette Hatchback 2-Door
1979 Chevrolet Chevette Hatchback 4-Door
1979 Chevrolet Chevette Scooter Hatchback 2-Door
1979 Chevrolet Chevette
