1980-1984 Dodge Plymouth Van Chassis & Electrical Assembly Manual Reprint

Price: $34.00
In stock now.
- +

Available to the public for the first time, this assembly manual is unlike anything you've ever seen. You'll see page after page of detailed illustrations of how each body part fits others; this is a reproduction of the book that was originally used by workers on the factory assembly lines putting trucks together. Use the part numbers and illustrations to help you verify original parts, to reassemble parts you are restoring, or to replace missing parts. You’ll find detailed parts illustrations and torque specs you haven’t seen anywhere else.  This reprinted manual covers these topics:

Electrical:  Instead of conventional linear wiring diagrams, you get dimensional drawings of the wire routing plus pictures of the looms so that you can see exactly where the wires are situated in the van, where clips & connectors go, and what they look like. Includes color codes for wires. It includes images of the back side of the dash and instruments, as well as the wiring for both mechanical and body parts of the van.  Some of the topics covered include wipers, lights, power windows, power locks, radio, speakers, antenna, chassis, engine compartment, and more.

Chassis section shows installation of:

  • Cooling
    • Radiator
    • Shroud
    • Coolant recovery system
    • Radiator hoses
  • Steering
    • Power steering hoses
    • Steering gear
    • Linkage
    • Steering column
    • Steering wheel
  • Brakes
    • Master cylinder
    • Booster
    • Pedal
    • Lines and hoses
    • Parking brake
  • Axles
  • Suspension
    • Control arms
    • Springs
    • Shocks
    • Sway bar
  • Frame
  • Bumpers
  • Trailer hitch
  • Engine mounts
  • Jack stowage
  • Clutch pedal and linkage
  • Wheels and covers
  • Fuel tank and fuel lines

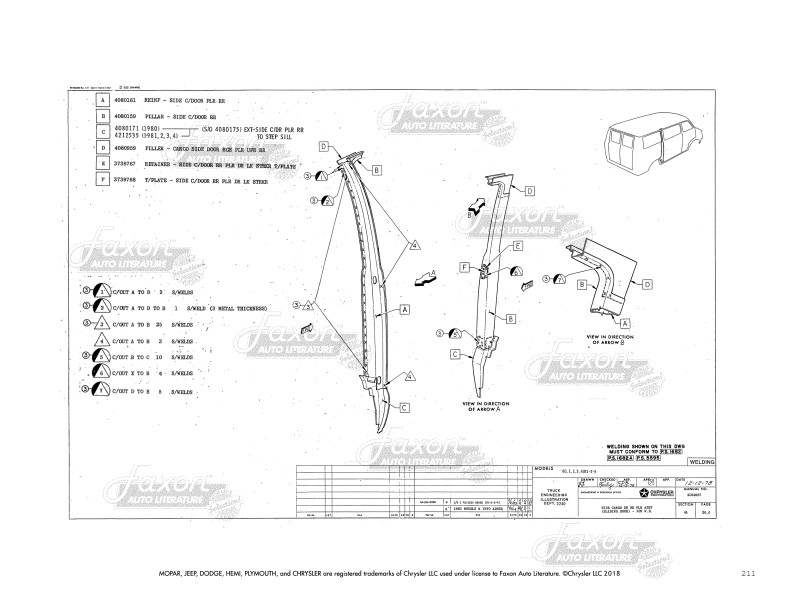

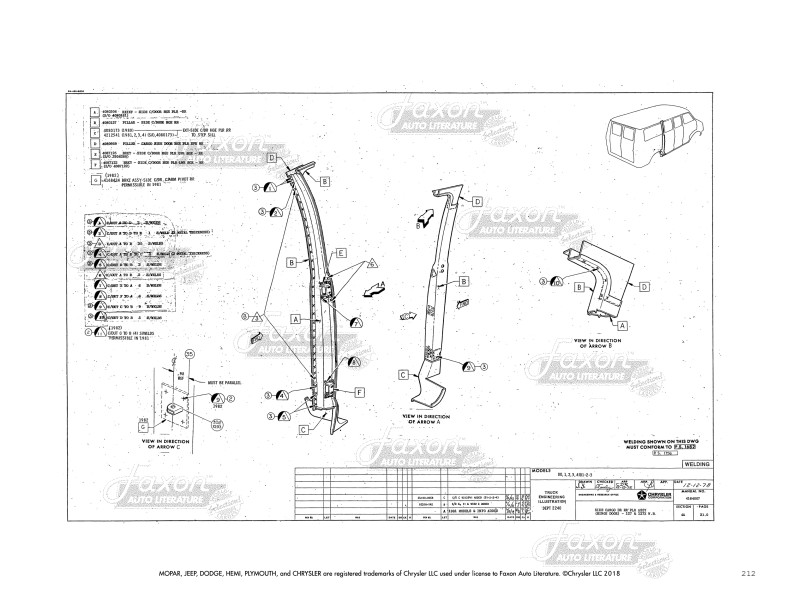

WeldingLearn how metal body parts are welded together.  It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. This is particularly useful if the vehicle has damage from a wreck.  You'll see welding for the underbody, cowl, pillars, roof panels, side panels, doors, and radiator & grill supports.

Anti-corrosion: Shows areas to be primed and sealed.

Sealer
: seal the cowl, underbody, doors, sides. dash, and roof against wind and water leaks.

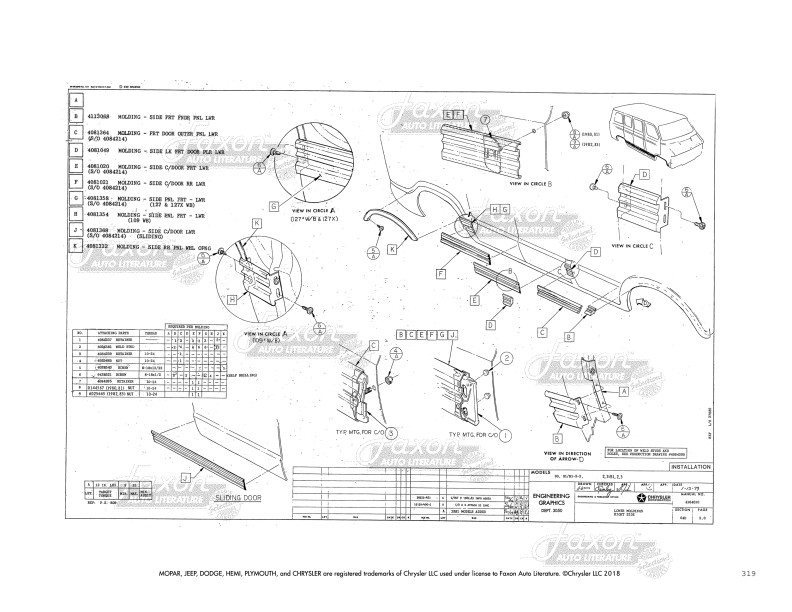

Body Installation Instructions:  Find out how to install glass, hood, and mirrors; assemble doors, locks, and window regulators; stow the jack, and put in the spare tire carrier. Interior assembly includes the headliner, seats, seat belts, interior transmission cover, carpet, insulation, interior trim, cowl air vent, and visors.  You'll see specifications for applying side moulding, chrome trim, chrome lettering, stripes, decals, woodgrain, two-tone paint, and weatherstripping.  You'll see gap tolerances for the front end, doors, and windshield.

Like all assembly manuals, this is reproduced from a book made for use inside the factory, and never intended for the public. Therefore, the print (like the print in original assembly manuals) is occasionally light.  There are a handful of spots in the book where some of the words are unreadable.  Buy now to own this never before available book. More assembly manuals coming soon.

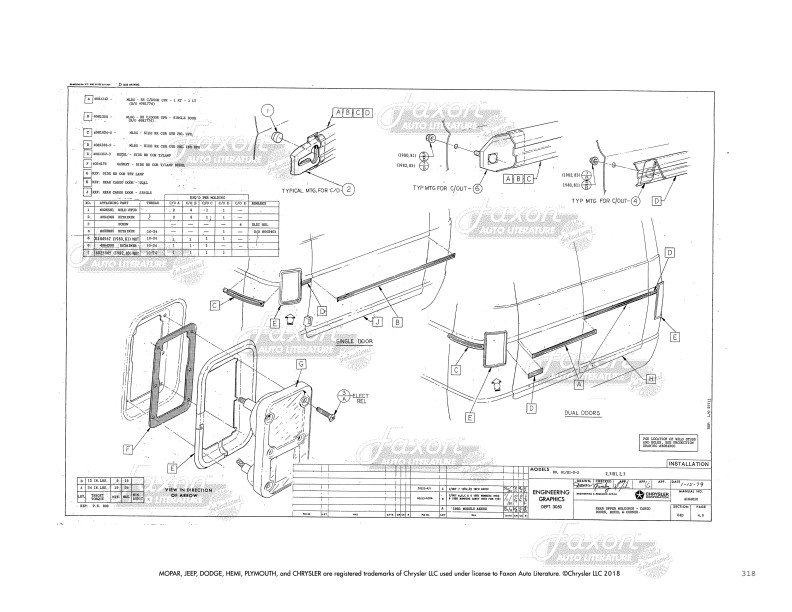

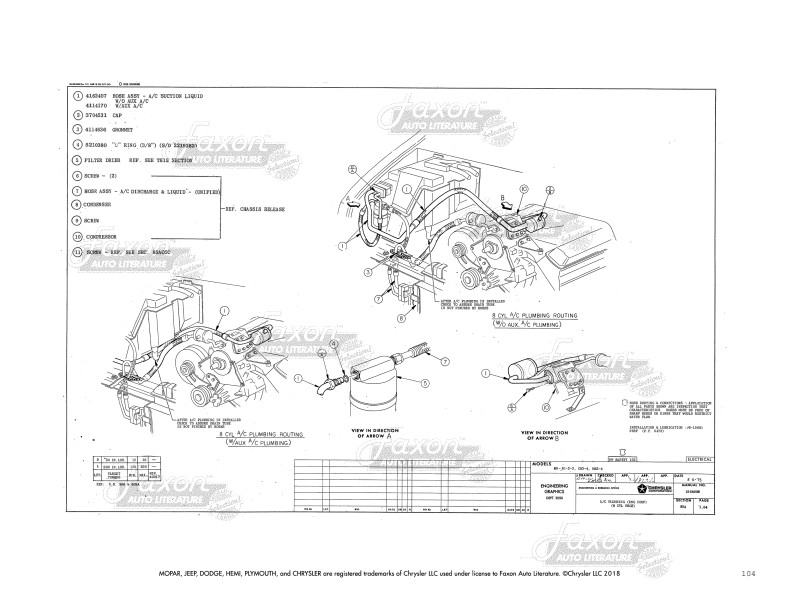

Please see the sample page image. All pages are watermarked with a background image like the sample page. There are exploded views and illustrations on just about every one of the book's pages. New condition.  Buy now to own this hard-to-find manual.

629
"1980-1984 Assembly Manual Body, Chassis, and Electrical Dodge Ram Van Plymouth Voyager"
Sold Separately
This item is a reproduction
10.80 x 8.35 x 0.95 inches
DB98084VNC11FLY1EAB
Body Installation Instructions:  Find out how to install glass, hood, and tailgate; assemble doors, locks, and window regulators; stow the jack, and put in the spare tire carrier (inside or outside). Interior assembly includes the headliner, seats, seat belts, interior transmission cover, carpet, cowl air vent, and visors.  You'll see specifications for applying side moulding, chrome trim, chrome lettering, stripes, decals, two-tone paint, and weatherstripping.  You'll see gap tolerances for the front end, doors, windshield, and tailgate.
Write a Review
This manual covers all 1980-1984 Dodge and Plymouth Van models including Voyager, Sportsman, maxivan, Wagon, half ton, three-quarter ton, one ton, B100, B200, B300, B150, B250, B350, CB300, CB400, MB300, MB400, CB350, CB450, MB250, MB350, MB450, PB100, PB200, PB300, PB150, PB250, and PB350. Includes van-based motorhome class C chassis; these motorhomes have van front ends on them. This book covers the part of the motorhome manufactured by Dodge and does not cover motorhome bodies. This is the full-sized rear wheel drive van. See my other items for the front wheel drive minivan.

1980 Dodge B100 Standard Cargo Van 3-Door
1980 Dodge B100 Standard Passenger Van 3-Door
1980 Dodge B200 Extended Cargo Van 3-Door
1980 Dodge B200 Extended Passenger Van 3-Door
1980 Dodge B200 Standard Cargo Van 3-Door
1980 Dodge B200 Standard Passenger Van 3-Door
1980 Dodge B300 Extended Cargo Van 3-Door
1980 Dodge B300 Extended Passenger Van 3-Door
1980 Dodge B300 Standard Cargo Van 3-Door
1980 Dodge B300 Standard Passenger Van 3-Door
1980 Dodge CB300 Cutaway Van 2-Door
1980-1982 Dodge Motorhome Chassis
1981-1984 Dodge B150 Standard Cargo Van 3-Door
1981-1984 Dodge B150 Standard Passenger Van 3-Door
1981-1984 Dodge B250 Standard Cargo Van 3-Door
1981-1984 Dodge B250 Standard Passenger Van 3-Door
1981-1984 Dodge B350 Extended Cargo Van 3-Door
1981-1984 Dodge B350 Extended Passenger Van 3-Door
1981-1984 Dodge B350 Standard Cargo Van 3-Door
1981-1984 Dodge B350 Standard Passenger Van 3-Door
1982-1984 Dodge B250 Extended Cargo Van 3-Door
1982-1984 Dodge B250 Extended Passenger Van 3-Door
1980 Plymouth PB100 Voyager Standard Passenger Van 3-Door
1980 Plymouth PB200 Voyager Extended Passenger Van 3-Door
1980 Plymouth PB200 Voyager Standard Passenger Van 3-Door
1980 Plymouth PB300 Voyager Extended Passenger Van 3-Door
1980 Plymouth PB300 Voyager Standard Passenger Van 3-Door
1981-1983 Plymouth PB150 Voyager Standard Passenger Van 3-Door
1981-1983 Plymouth PB250 Voyager Extended Passenger Van 3-Door
1981-1983 Plymouth PB250 Voyager Standard Passenger Van 3-Door
1981-1983 Plymouth PB350 Voyager Extended Passenger Van 3-Door
1981-1983 Plymouth PB350 Voyager Standard Passenger Van 3-Door
