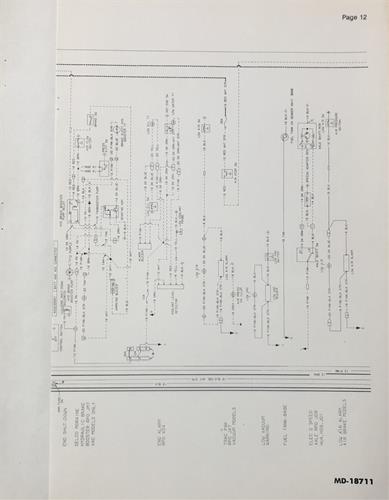

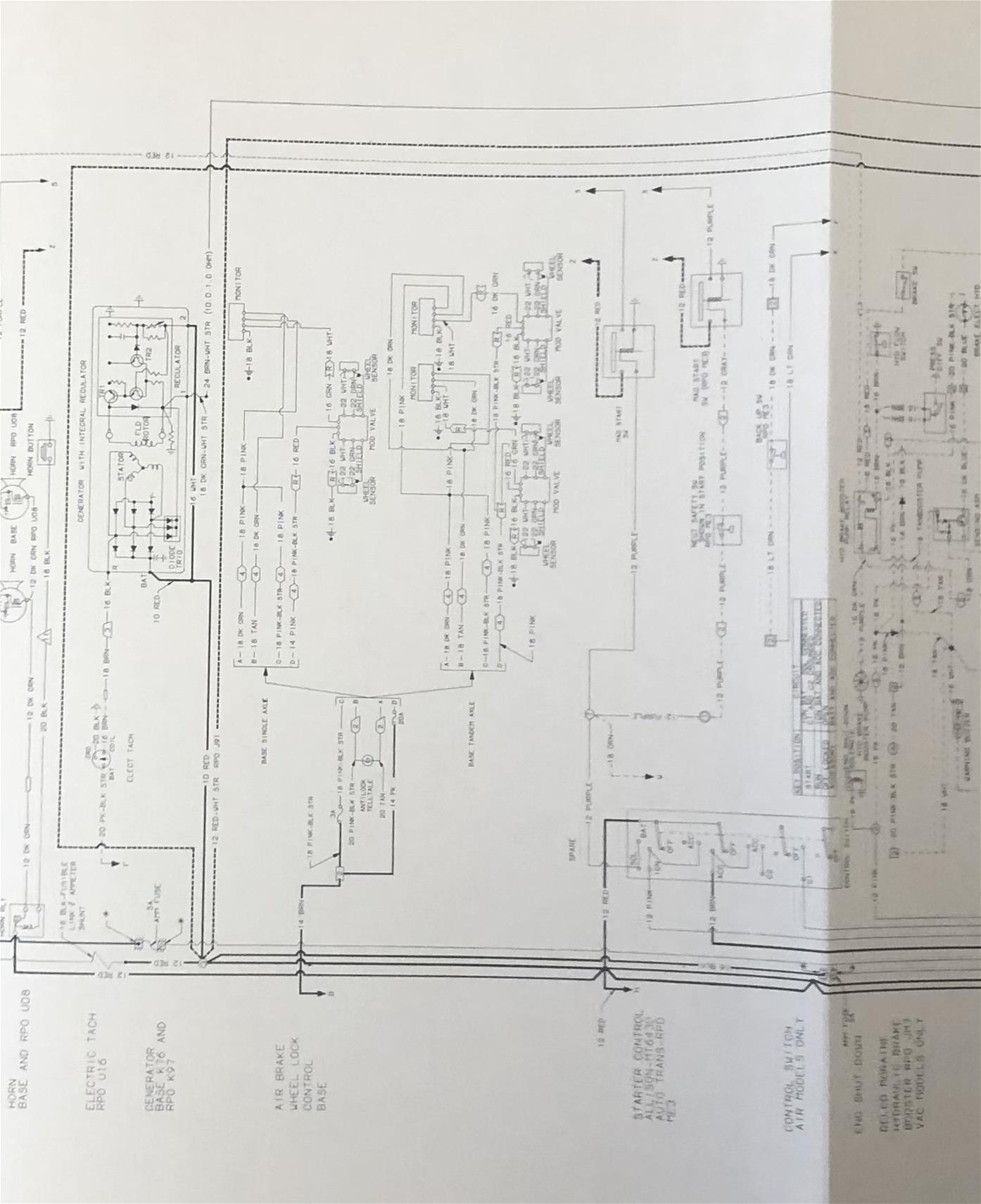

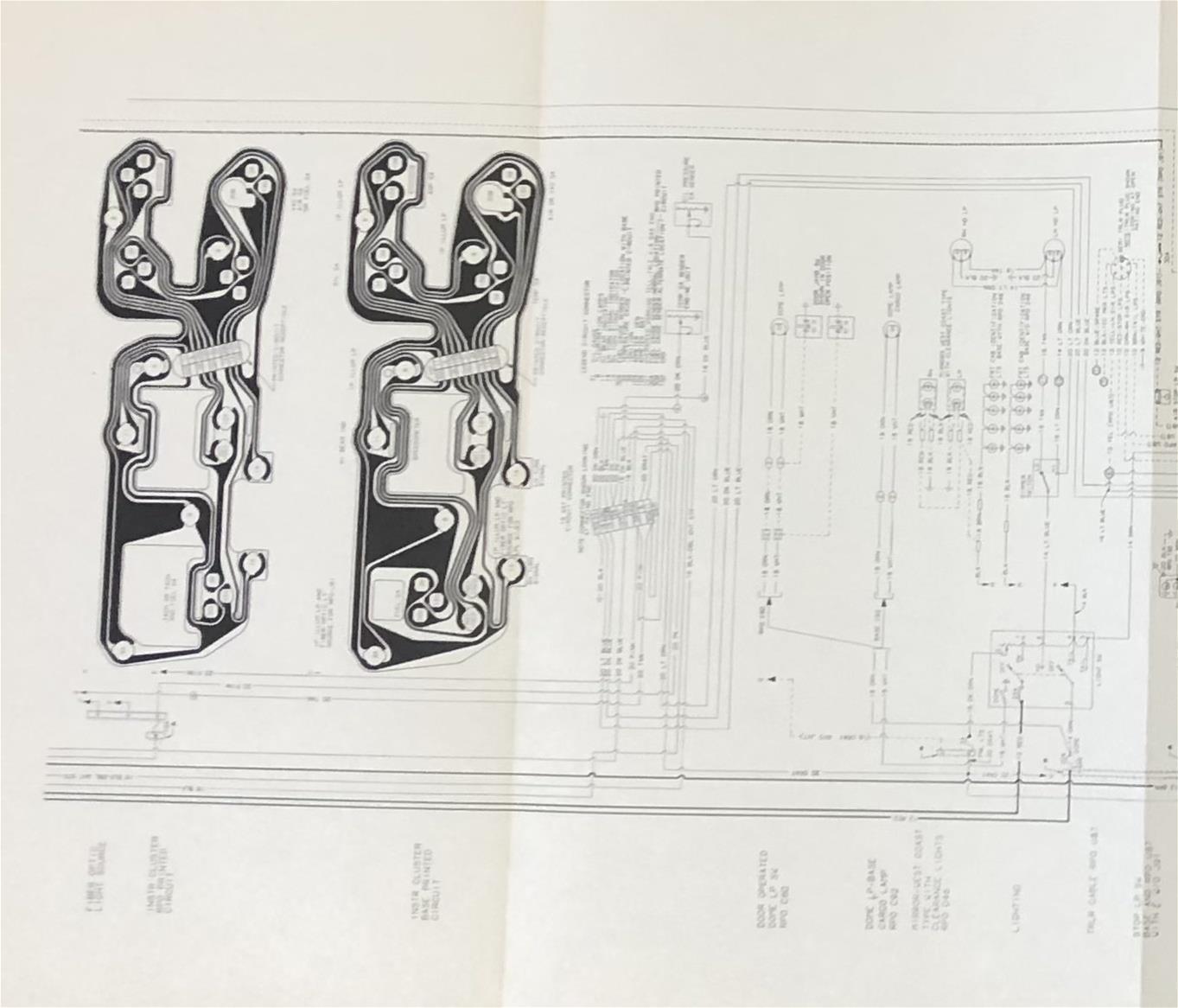

This is the original wiring diagram printed by GM for dealer mechanics. You can follow the wiring in your truck from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 8.5" x 11" when folded up, and opens up to 11" by 38". The diagram pictured is an example of this type when folded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info - the factory wiring diagram.
Wiring Diagrams Medium/Heavy Truck 1980 GM C6/w Diesel Engine
2
Included
This item is original.
11.00 x 8.50 x 0.10 inches
MD18711
Write a Review
Covers medium duty Chevrolet and GMC conventional truck models C6, C60, & C6000 with 4-53 diesel engine. For C6 & C7 8.2L or 3208 diesel engines, or gas engines see my other items. To verify that this is the correct diagram for your truck, you can check your VIN code. The 4th digit should be a D for the medium duty conventional cab, the 5th digit should be a D for the 4-53 diesel, and the 6th digit should be an A to indicate the 1980 model year.
1980 Chevrolet C60 C6D042
1980 Chevrolet C60 C6D062
1980 GMC C6000 C6D042
1980 GMC C6000 C6D062
1980 Chevrolet C60 1980 GMC C6000
