365198L80 Very Good $19.00
-
+

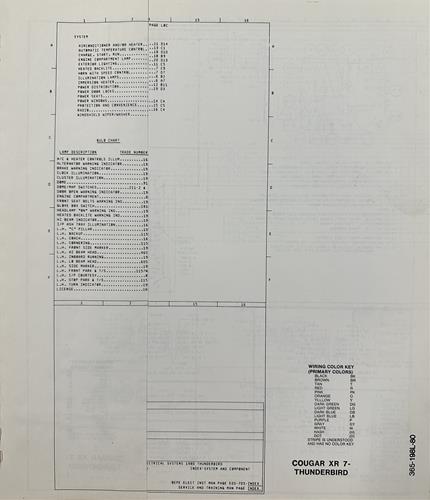

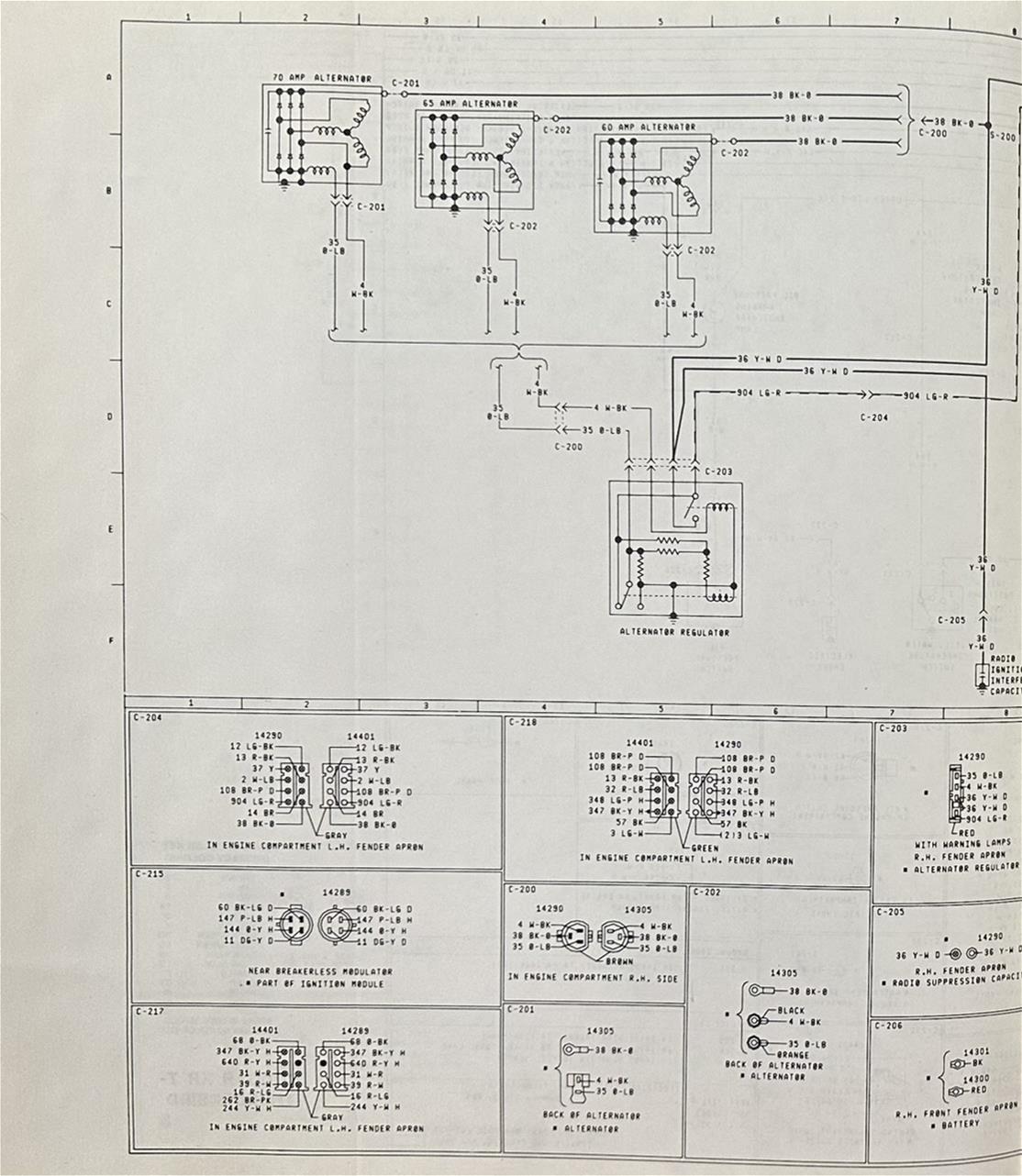

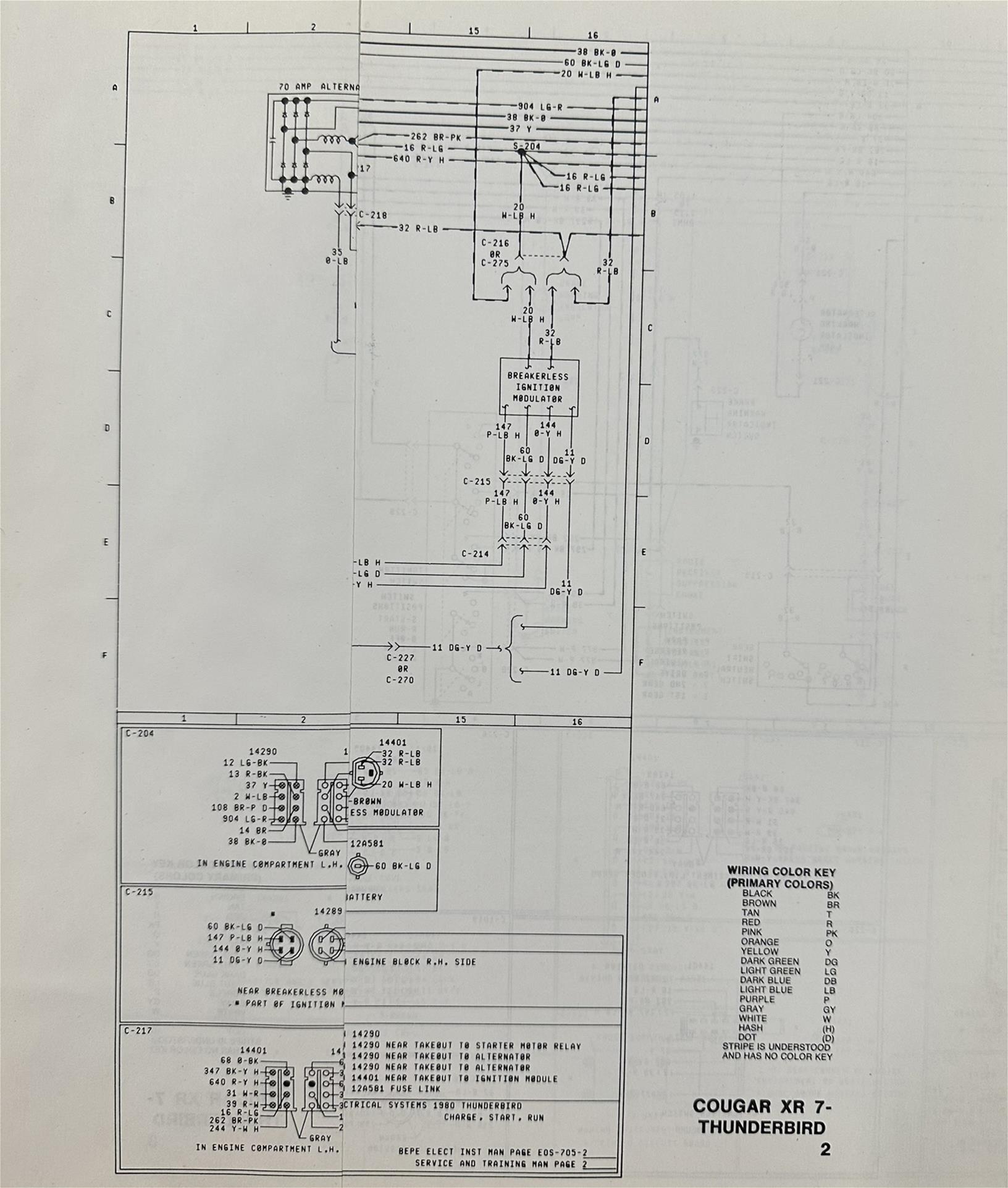

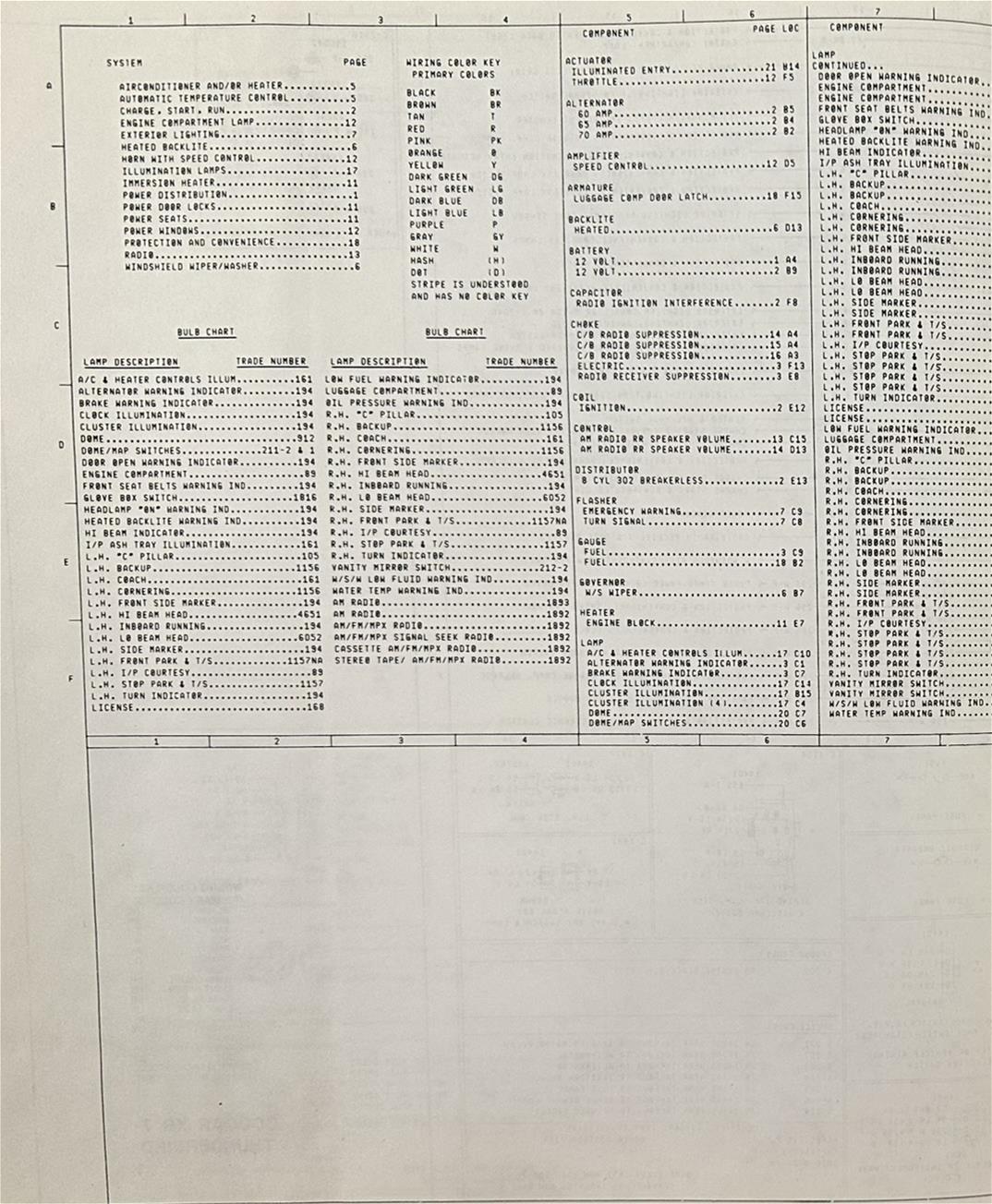

This is the original wiring diagram printed by Ford for dealer mechanics. You can follow all of the wiring in your vehicle from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 11" x 17" when folded up, and opens up to 11" by 27". Diagrams may be folded in half for shipping. The diagram pictured is an example of this type when unfolded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info—the factory wiring diagram.
Ford
1980 Car Wiring Diagrams Cougar XR7 Thunderbird
22
Included
This item is original.
17.00 x 11.00 x 0.25 inches
365198L80
Write a Review
1980 Ford Thunderbird Sedan 2-Door
1980 Ford Thunderbird Silver Anniversary Sedan 2-Door
1980 Ford Thunderbird Town Landau Sedan 2-Door
1980 Mercury Cougar XR-7 Sedan 2-Door
1980 Mercury XR-7
1980 Ford Thunderbird 1980 Mercury Cougar 1980 Mercury XR-7
