Item #: BM9838358AS1FLY1LBZ
Our Price: $ 49.00
Quantity:
  (min 1, max 999)
In stock now.

Description

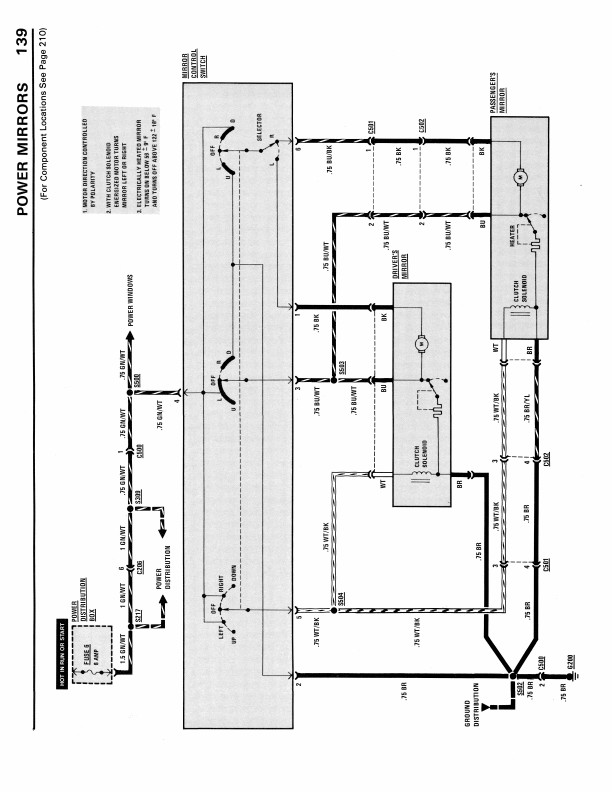

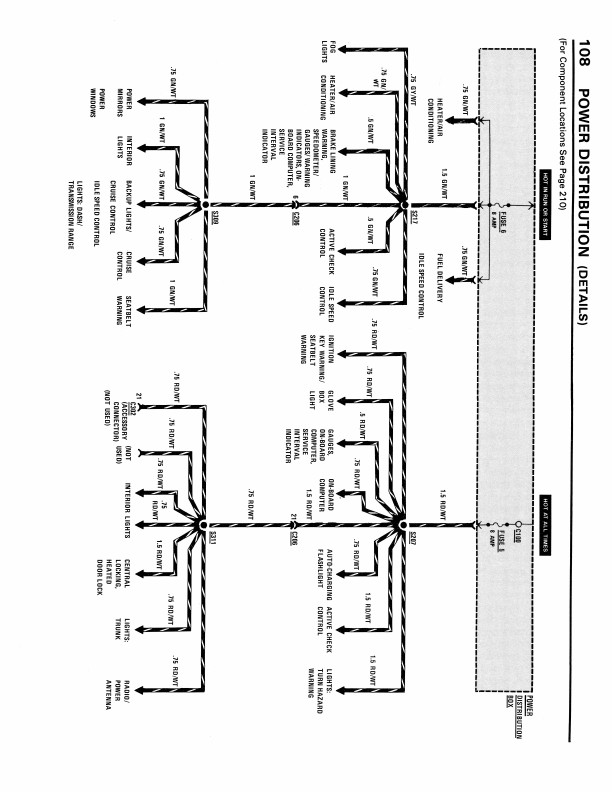

"1983 BMW 528e/533i Electrical Troubleshooting Manual" Written for BMW dealership mechanics, this factory-published original wiring diagram shows you how to follow the wiring from bumper-to-bumper. It will help you understand connector configurations, and locate and identify circuits, relays, and grounds. You will not find these wiring diagrams in the factory shop manual. Wiring diagrams are black and white, but they frequently have color codes printed on each line of the diagram that represents a wire. This manual covers US and Canadian 1982 BMW 528e and 533i models. This book is a brand new book, measures 11 in. x 8.5 in. and has 84 pages. Buy now for the best electrical information available.

Reviews

Be the first to submit a review on this product!
Review and Rate this Item

Specifications

Page Count: 84
Exact Title: "1983 BMW 528e/533i Electrical Troubleshooting Manual"
Wiring Diagrams?: Included
Authenticity: This item is a reproduction.
Dimensions: 8.50 x 11.00 x 0.25
OEM Part Number: 89891000138 REPRINT

Model-Years Application

This manual covers US and Canadian 1982 BMW 528e and 533i models.
1983 BMW 528e Sedan 4-Door
1983 BMW 533i Sedan 4-Door
