1984-1985 Dodge Caravan and Plymouth Voyager Minivan Assembly Manual Reprint

Price: $29.00
In stock now.
- +

Available to the public for the first time, this assembly manual is unlike anything you've ever seen. You'll see page after page of detailed illustrations of how each part fits others; this is a reproduction of the book that was originally used by workers on the factory assembly lines putting vans together. Use the part numbers and illustrations to help you verify original parts, to reassemble parts you are restoring, or to replace missing parts. You’ll find detailed parts illustrations and torque specs you haven’t seen anywhere else.  This reprinted manual covers these topics:

Chassis: see illustrations of

  • suspension
  • steering
    • steering gear
    • steering linkage
    • steering column
    • steering wheel
  • brakes
    • drums
    • discs
    • booster
    • vacuum booster
    • parking brake
    • brake lines
  • wheels

Power Train:  learn about:

  • carburetor
    • fuel pump
    • fuel lines
    • air cleaner & heater
  • engine cooling
    • radiator, hoses, and fan
    • coolant recovery system
  • engine driven components
    • alternator
    • air conditioning compressor
    • air conditioning condenser
    • air pump
    • aspirator
  • accelerator pedal
  • throttle controls
  • engine supports
  • oil filter
  • EGR system
  • ignition
    • starter
    • ignition cable
    • coil
  • transmission - the book shows how the transmission is mounted in the vehicle, but does not show the inside of the transmission
    • clutch
    • torque plate & converter
    • transmission
    • gearshift controls
    • drive shafts
    • clutch pedal and linkage
  • exhaust sytem
  • fuel tank
  • heat shield
  • speed control
  • engine block heater

Seats: seat upholstery.

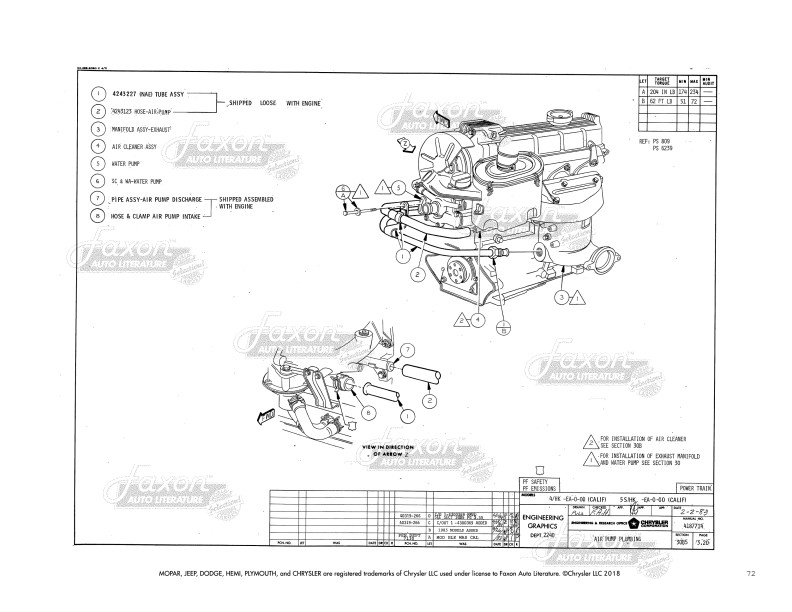

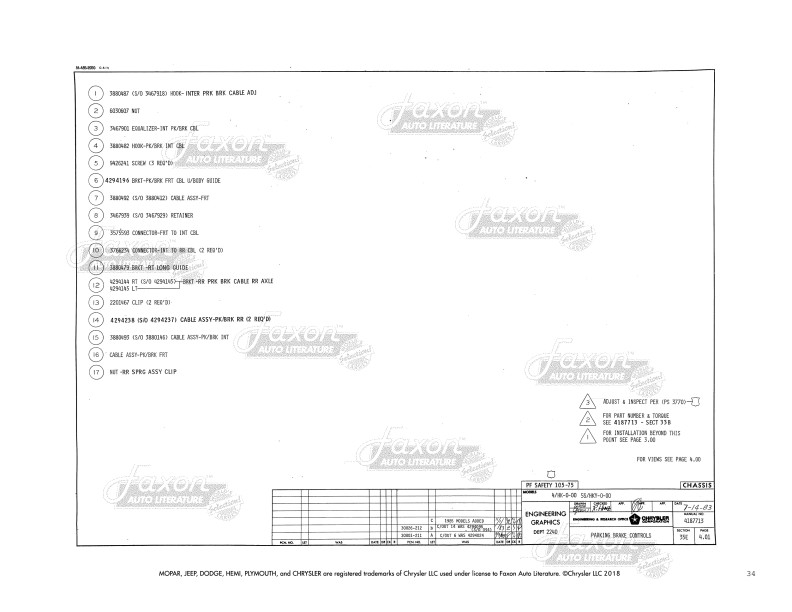

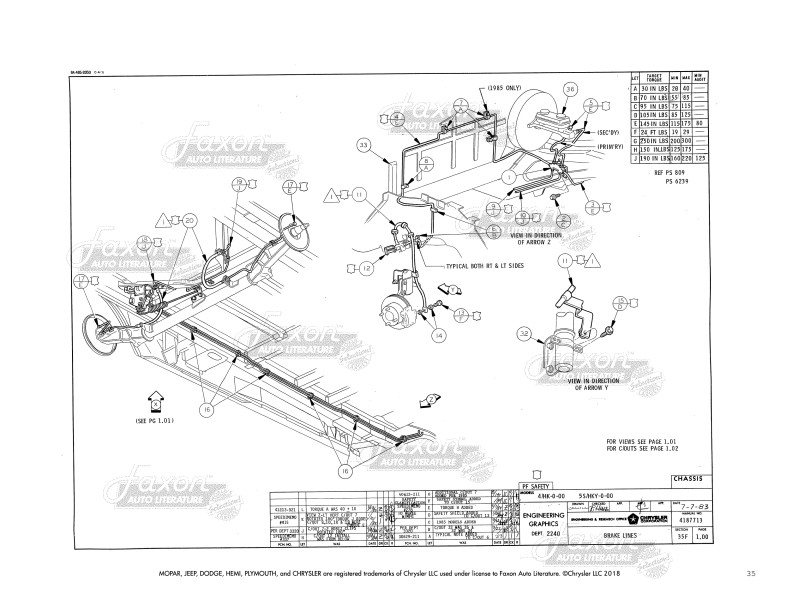

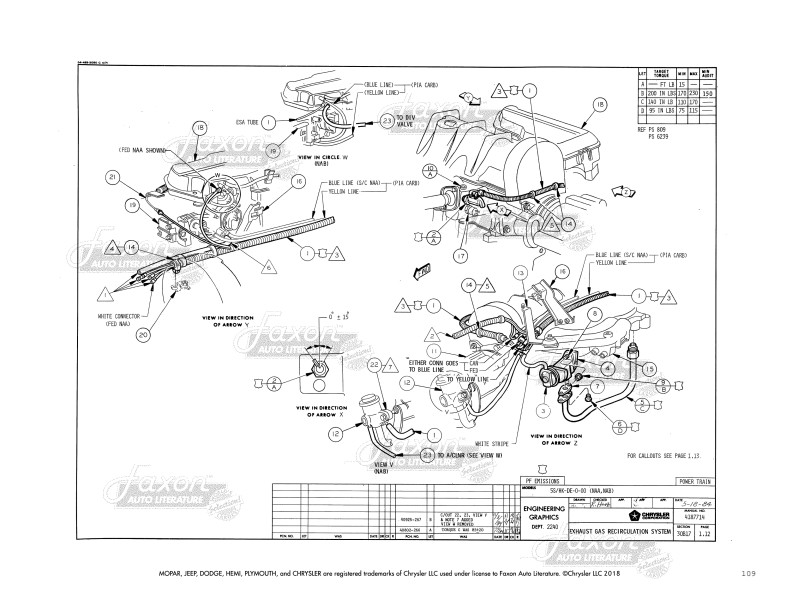

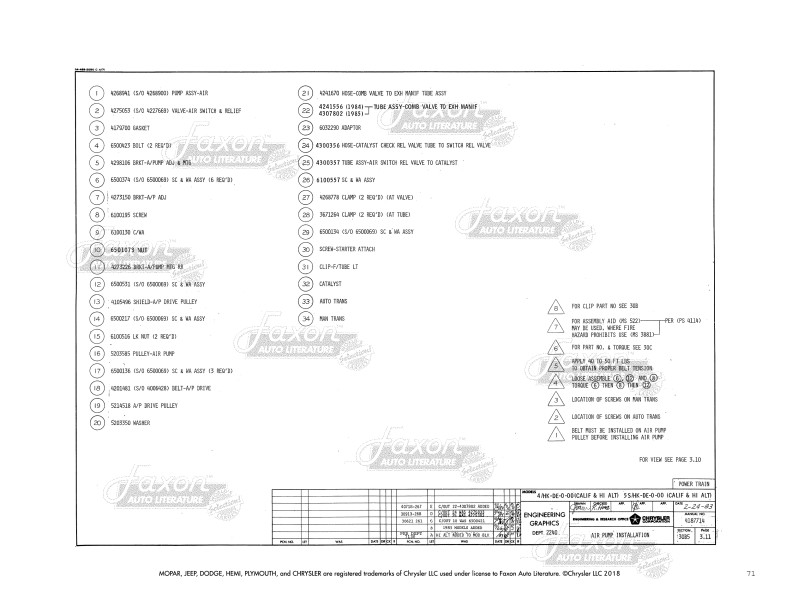

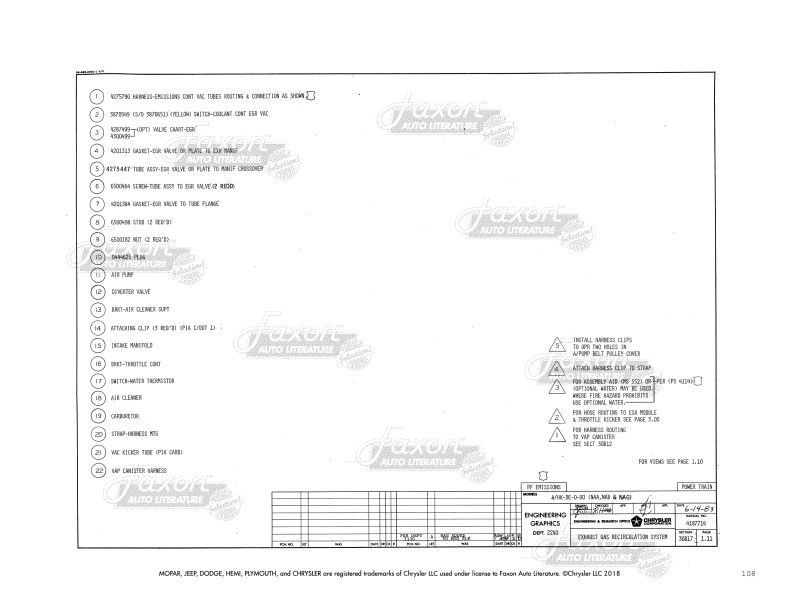

Please see the sample page image. All pages are watermarked with a background image like the sample page. There are exploded views and illustrations on just about every one of the book's pages. New condition.  Buy now to own this hard-to-find manual.

"1984-1985 Assembly Manual Front Wheel Drive Minivan Caravan Voyager"
Sold Separately
This item is a reproduction
10.80 x 8.35 x 0.35 inches
