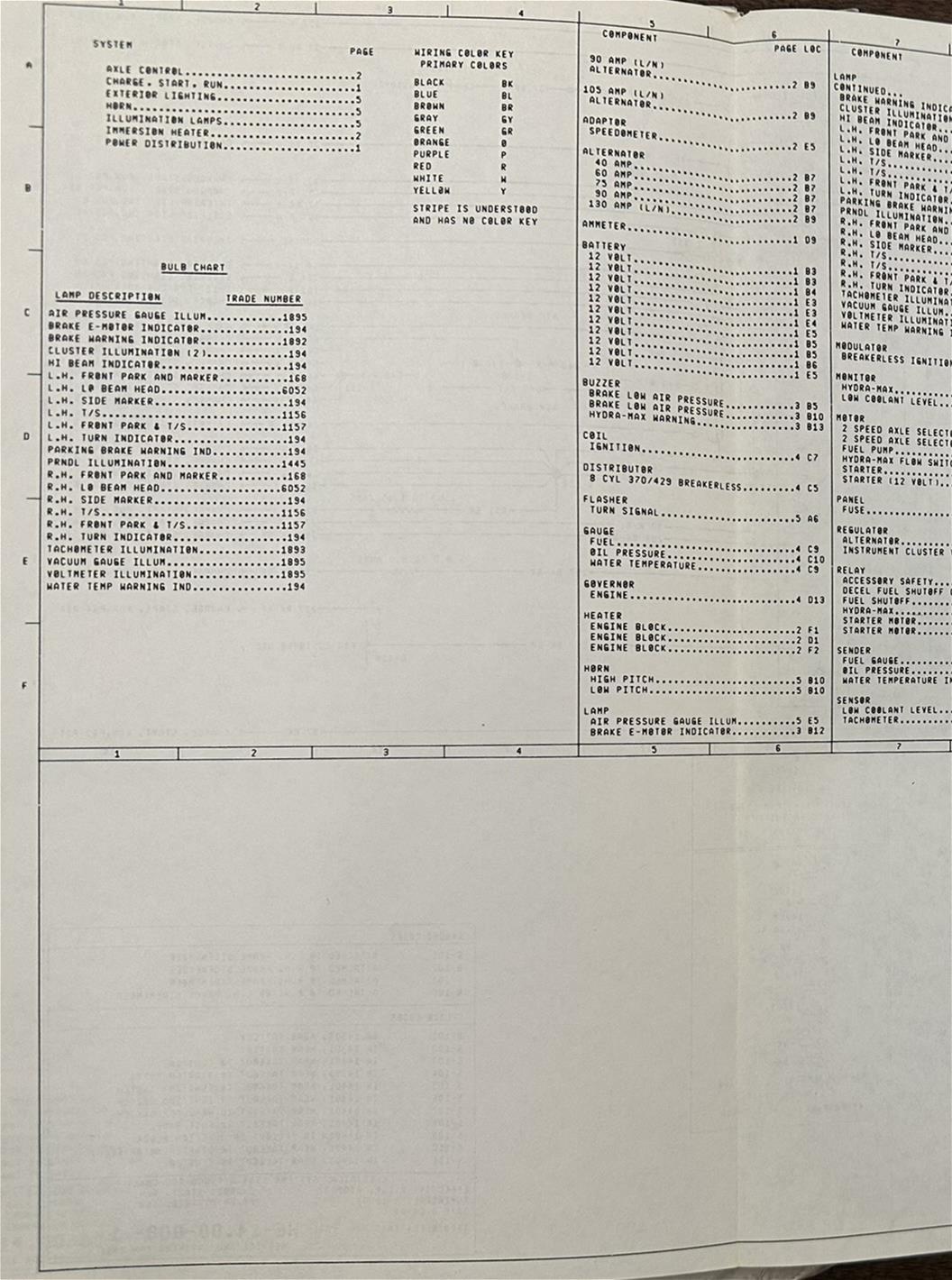

This is the original wiring diagram printed by Ford for dealer mechanics. You can follow the wiring in your truck from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 11" x 12.5" when folded up, and opens up to 11" by 24.5". Diagrams may be folded in half for shipping. The diagram pictured is an example of this type when unfolded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info--the factory wiring diagram.
Ford
1984 Truck Wiring Diagrams B F 600-800 (COWL)
5
You can be the first one to write a review.
To find out if you need a cab or a cowl wiring diagram, check the 3rd digit of the BODY code on the Vehicle Rating Decal. The number 7 indicates that the vehicle is a Cowl, anything else would indicate that the vehicle is a Cab. On cowl and windshield vehicles, the Vehicle Rating Decal is mounted on the right side of the cowl top panel under the hood. On all other vehicles, the Vehicle Rating Decal is mounted on the rear face of the left front door. You do not need to check this if you have a B-Series, all B-Series are Cowls. This diagram covers: 1984 F-600, F-700, F-800, FT-800, FT-8000, B-600 and B-700. If you also want to verify that your vehicle is a 1984, check the 10th digit of your VIN, which should be a E.
1984 Ford F F600
1984 Ford F F700
1984 Ford F F7000
1984 Ford F F800
1984 Ford F F8000
1984 Ford FT FT800
1984 Ford FT FT8000
1984 Ford School Bus Chassis B600
1984 Ford School Bus Chassis B700
1984 Ford School Bus Chassis B7000
1984 Ford F 1984 Ford FT 1984 Ford FT 1984 Ford School Bus Chassis
