1984 GM Body Specifications Assembly Manual Reprint

Price: $24.00
In stock now.
- +

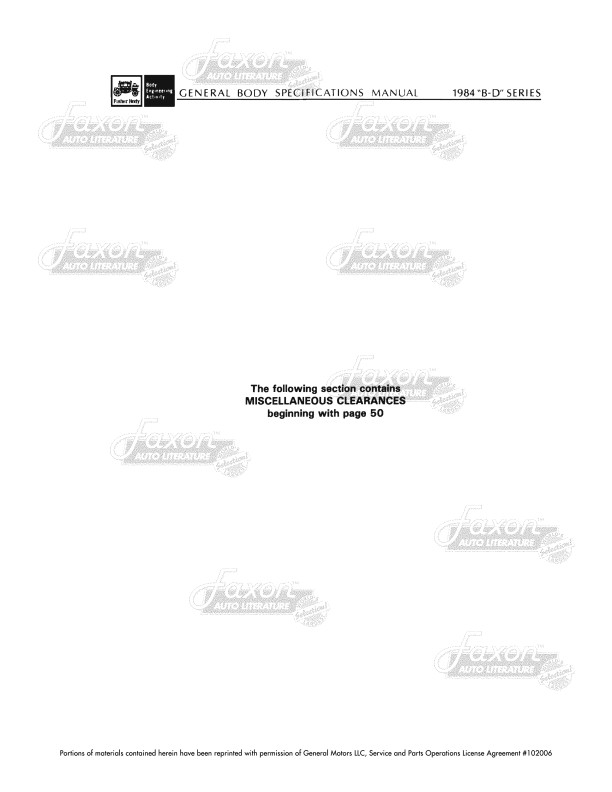

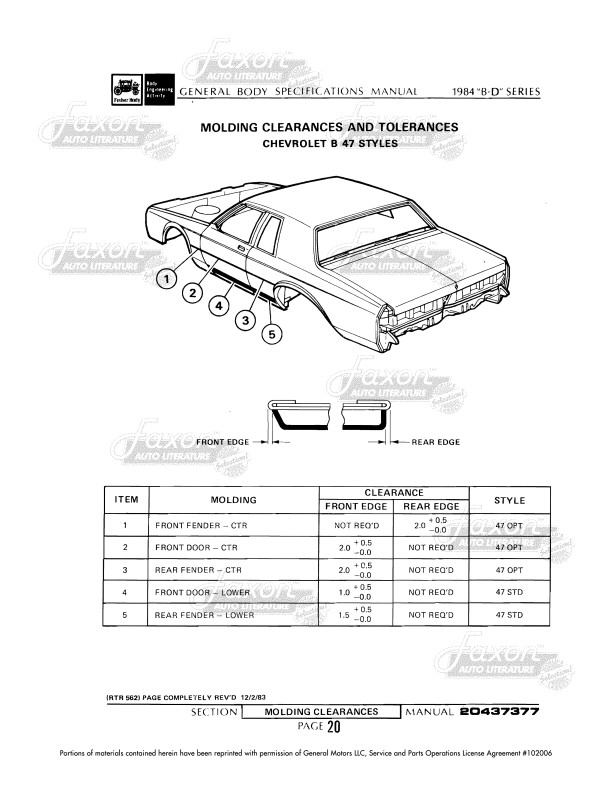

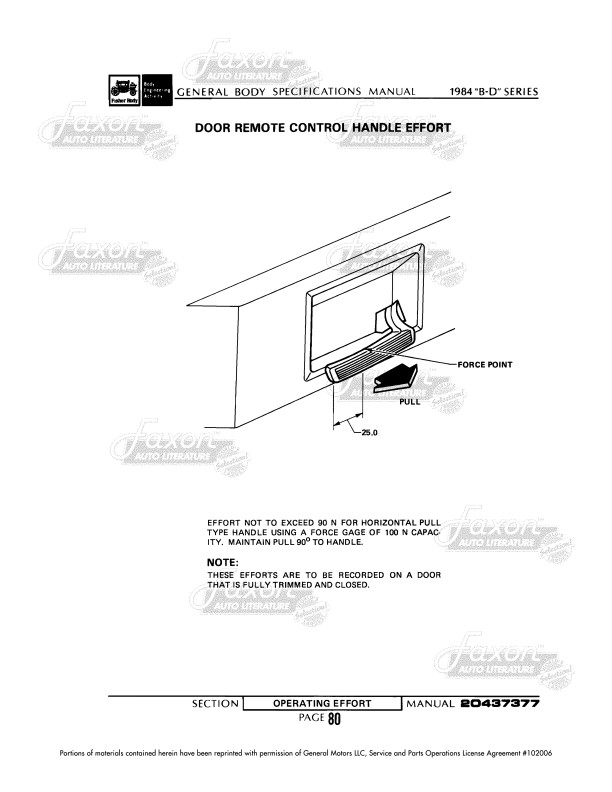

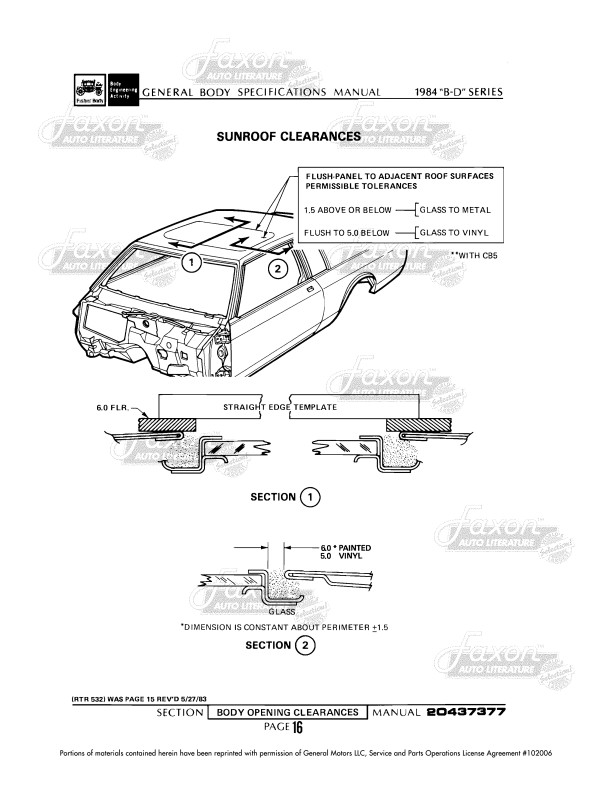

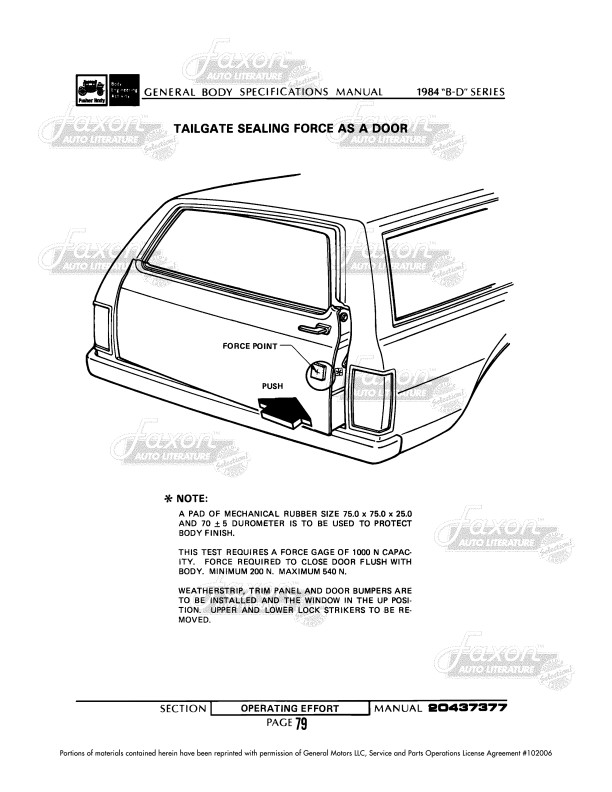

This assembly manual was written by GM engineers for use in the Fisher Body assembly plant. It gives you specifications for clearances, operating effort, leak testing, and torque. The body section specifies clearances between movable panels such as door to fender or door to door. The molding clearances section gives tolerances for body side moldings to door or panel edges. The miscellaneous clearances chapter specifies glass, seat, and bumper tolerances. Hundreds of clearance specs are included. These would be helpful after a collision, or even if things are just a little out of place from decades of wear. These specifications are useful for precise installation of glass, doors, lights, and other parts. In the operating effort section, you'll learn about testing door handles, keys, window regulators, door closing, sunshades, seat adjusters, and trunk lid. You'll also see instructions for performing leak tests. You get torque specs for a few types of fasteners.

Please see the table of contents image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
"General Body Specifications Manual 1984"
118
Sold Separately
This item is a reproduction
10.80 x 8.30 x 0.25 inches
GM98484BBA11FLY1EAP
Write a Review
1984 Buick Electra Estate Wagon Wagon 4-Door
1984 Buick Electra Limited Coupe 2-Door
1984 Buick Electra Limited Sedan 4-Door
1984 Buick Electra Park Avenue Coupe 2-Door
1984 Buick Electra Park Avenue Sedan 4-Door
1984 Buick LeSabre Custom Coupe 2-Door
1984 Buick LeSabre Custom Sedan 4-Door
1984 Buick LeSabre Estate Wagon
1984 Buick LeSabre Limited Coupe 2-Door
1984 Buick LeSabre Limited Sedan 4-Door
1984 Cadillac Commercial Chassis Cab & Chassis 4-Door
1984 Cadillac DeVille Cabriolet Coupe 2-Door
1984 Cadillac DeVille Coupe 2-Door
1984 Cadillac DeVille d'Elegance Coupe 2-Door
1984 Cadillac DeVille d'Elegance Sedan 4-Door
1984 Cadillac DeVille Sedan 4-Door
1984 Cadillac Fleetwood Brougham Coupe 2-Door
1984 Cadillac Fleetwood Brougham d'Elegance Coupe 2-Door
1984 Cadillac Fleetwood Brougham d'Elegance Sedan 4-Door
1984 Cadillac Fleetwood Brougham Sedan 4-Door
1984 Cadillac Fleetwood Formal Limousine 4-Door
1984 Cadillac Fleetwood Limousine 4-Door
1984 Chevrolet Caprice Classic Coupe 2-Door
1984 Chevrolet Caprice Classic Sedan 4-Door
1984 Chevrolet Caprice Classic Wagon 4-Door
1984 Chevrolet Impala Sedan 4-Door
1984 Oldsmobile 98 Regency Brougham Sedan 4-Door
1984 Oldsmobile 98 Regency Coupe 2-Door
1984 Oldsmobile 98 Regency Sedan 4-Door
1984 Oldsmobile Custom Cruiser Wagon 4-Door
1984 Oldsmobile Delta 88 Royale Brougham Coupe 2-Door
1984 Oldsmobile Delta 88 Royale Brougham LS Sedan 4-Door
1984 Oldsmobile Delta 88 Royale Brougham Sedan 4-Door
1984 Oldsmobile Delta 88 Royale Coupe 2-Door
1984 Oldsmobile Delta 88 Royale Sedan 4-Door
1984 Pontiac Parisienne Brougham Sedan 4-Door
1984 Pontiac Parisienne Sedan 4-Door
1984 Pontiac Parisienne Wagon 4-Door
