1985-1986 Dodge B Van Chassis & Powertrain Assembly Manual Reprint

Price: $34.00
In stock now.
- +
This book is a reproduction of a manual used by workers on the factory assembly lines putting vehicles together. You'll see page after page of detailed illustrations of how each part fits others.  Use the part numbers and illustrations to help you verify original parts, to reassemble parts you are restoring, or to replace missing parts. You’ll find detailed parts illustrations and torque specs you haven’t seen anywhere else. This reprinted manual gives you assembly illustrations for attaching parts to your engine, including hoses, belts, lines, linkages, and mounts. It does NOT show internal engine parts (pistons, for example) or internal transmission parts. Use this manual to help you add or remove chassis engine equipment, and/or to help identify parts that may be missing or incorrect. Sections include:
  • Fresh air intake
  • carburetor fuel pup, fuel lines, and choke assembly
  • radiator, hoses, fan, and shroud
  • fan and drive pulleys (alternator, cooling power steering, a/c compressor, air pump)
  • accelerator pedal
  • throttle controls and adjustments
  • power steering hoses
  • speedometer pinion and cable
  • aspirator
  • engine mounts
  • oil filter
  • engine vent system
  • EGR system
  • exhaust system
  • engine block heater
  • starter
  • ignition coil and cables
  • clutch linkage
  • transmission
  • transfer case
  • prop shaft
  • fuel system (lines and tank)
  • frame
  • crossmembers
  • suspension (axles, struts, control arm, sway bar, springs)
  • steering (steering gear, linkage, column, steering wheel)
  • brakes (discs, drums, booster, master cylinder, lines, hoses, parking brake)
  • wheels
  • spare tire carrier

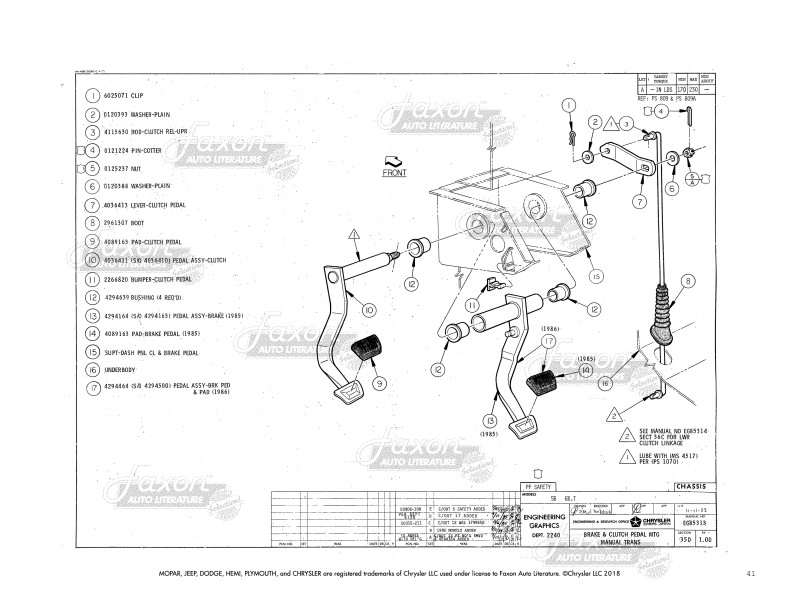

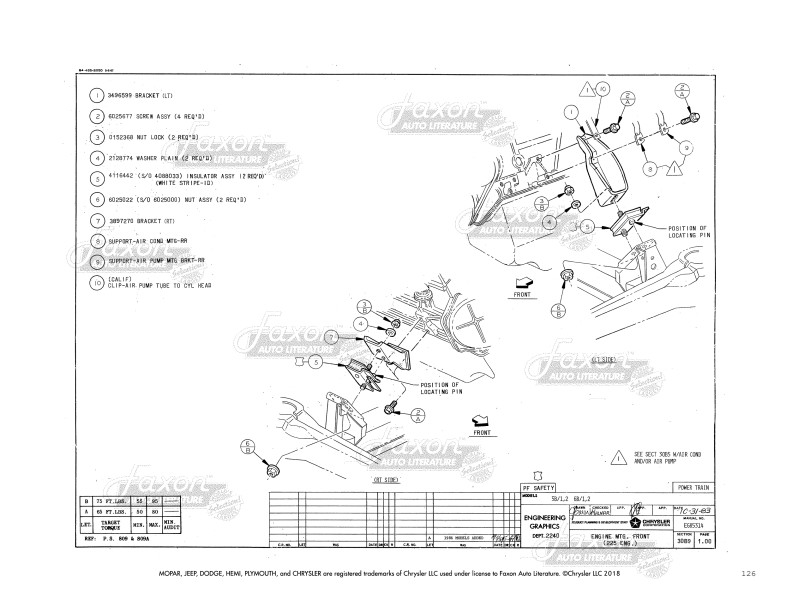

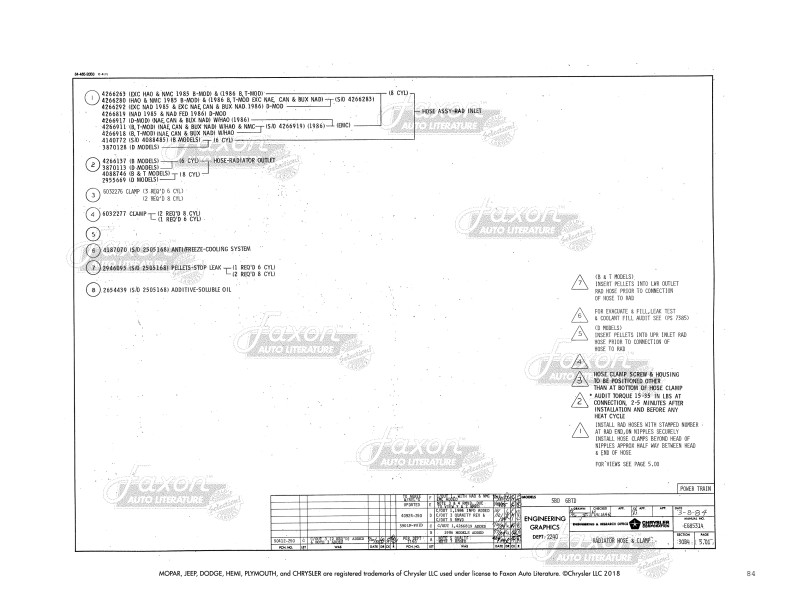

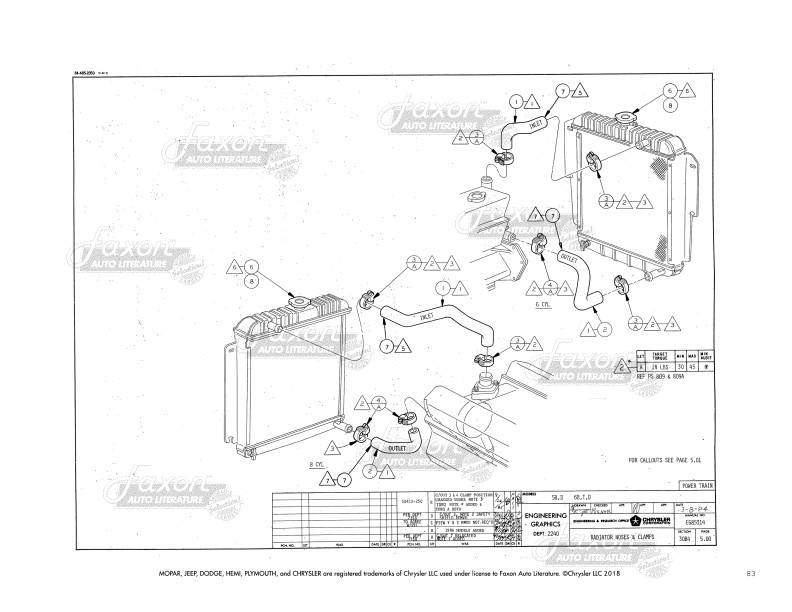

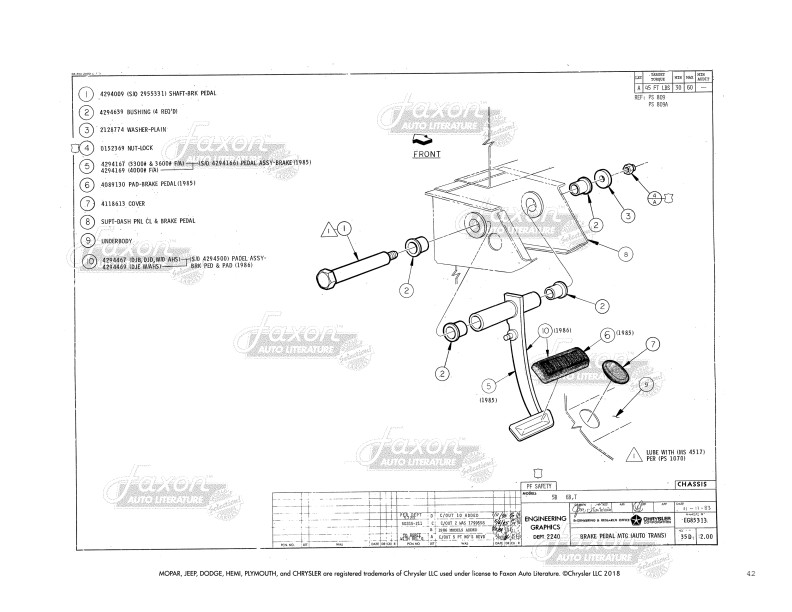

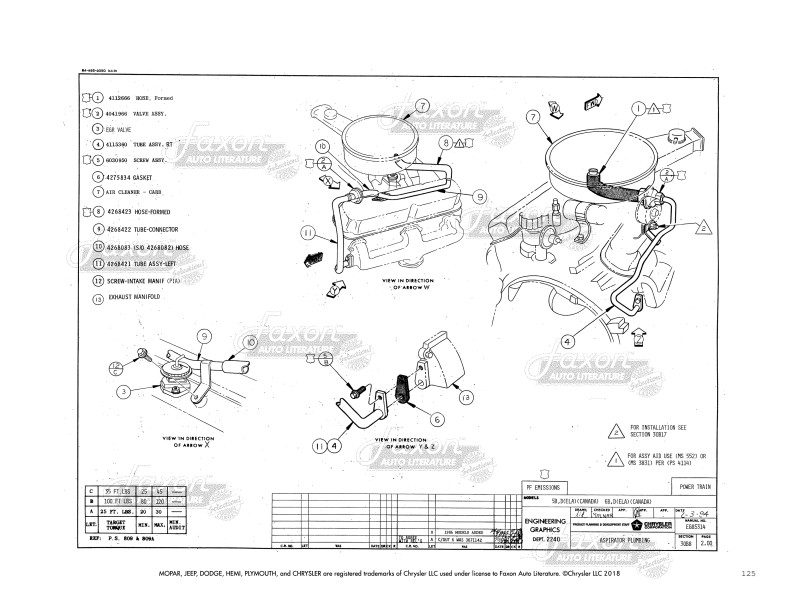

The book shows exploded views of these parts and includes original part numbers. There are illustrations on just about every one of the book's pages. We have made every effort to restore the book where possible.

Please see the sample page image. All pages are watermarked with a background image like the sample page. There are exploded views and illustrations on just about every one of the book's pages. New condition.  Buy now to own this never before available book.

211
"1985-1986 Assembly Manual Chassis & Powertrain Rear Wheel Drive Van"
Sold Separately
This item is a reproduction
10.80 x 8.30 x 0.35 inches
DB98586VNC11FLY1EAC
