1985 Ford Truck (CAB) Foldout Wiring Diagram F600 F700 F800 F7000 FT800 FT900 FT8000

Price: $39.00
  • Part #365198T85
The product is currently out of stock. Price subject to change.

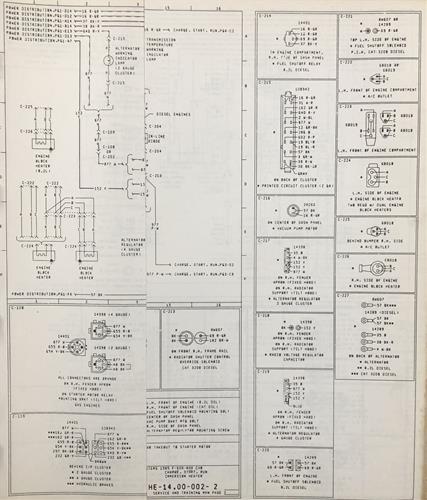

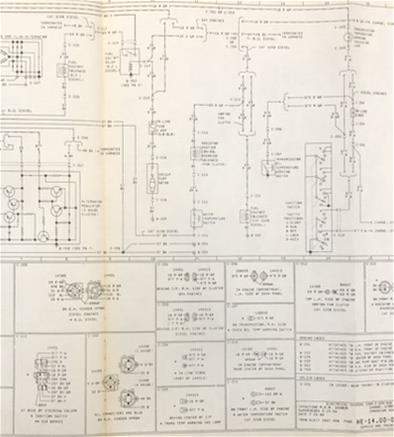

This is the original wiring diagram printed by Ford for dealer mechanics. You can follow the wiring in your truck from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 11" x 12.5" when folded up, and opens up to 11" by 24.5". Diagrams may be folded in half for shipping. The diagram pictured is an example of this type when unfolded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info--the factory wiring diagram.
Ford
1985 Truck Wiring Diagrams F600-800 Series (CAB)
8
Included
This item is original.
12.50 x 11.00 x 0.25 inches
365198T85
Write a Review
To find out if you need a cab or a cowl wiring diagram, check the 3rd digit of the BODY code on the Vehicle Rating Decal. The number 7 indicates that the vehicle is a Cowl and the letter G indicates that the vehicle is a Cowl with an electric fuel pump, anything else would indicate that the vehicle is a Cab. On cowl and windshield vehicles, the Vehicle Rating Decal is mounted on the right side of the cowl top panel under the hood. On all other vehicles, the Vehicle Rating Decal is mounted on the rear face of the left front door. This diagram covers: 1985 F-600, F-700, F-800, F-7000, FT-800, FT-900 and FT-8000.
1985 Ford F F600
1985 Ford F F700
1985 Ford F F7000
1985 Ford F F800
1985 Ford F F8000
1985 Ford FT FT800
1985 Ford FT FT8000
1985 Ford FT FT900
1985 Ford F 1985 Ford FT 1985 Ford FT
