1985 GMC S15 Chevy S10 Wiring Diagram Original Pickup Truck Blazer Jimmy

Price: $24.00
The product is currently out of stock. Price subject to change.

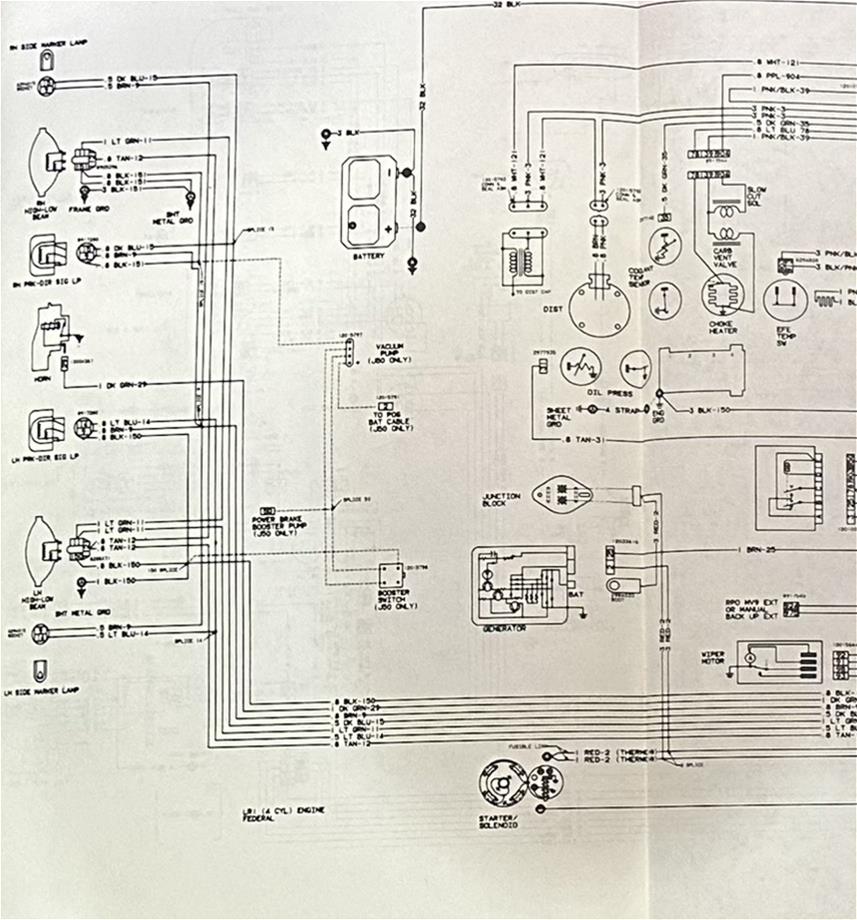

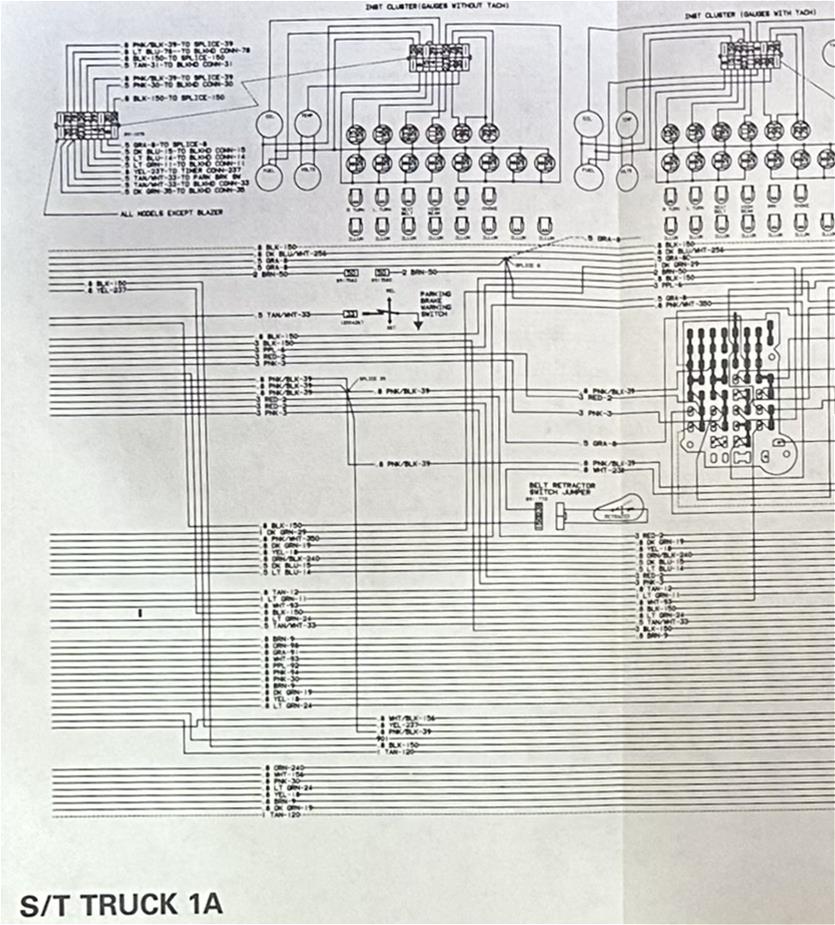

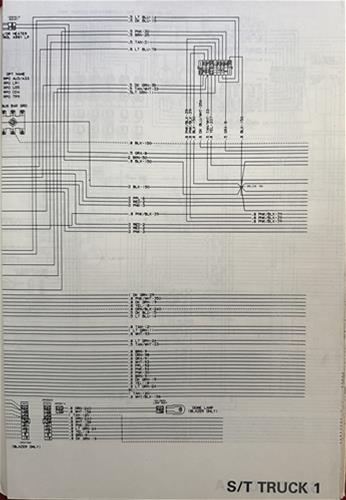

This is the original wiring diagram printed by GM for dealer mechanics. You can follow the wiring in your truck from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. The schematic measures 8.5" x 11" when folded up and opens up to 11" by 38". Buy now for the best electrical repair info - the factory wiring diagram.
General Motors
Wiring Diagrams Light Duty Truck 1985 GM ST
6
Included
This item is original.
11.00 x 8.50 x 0.10 inches
15598472
