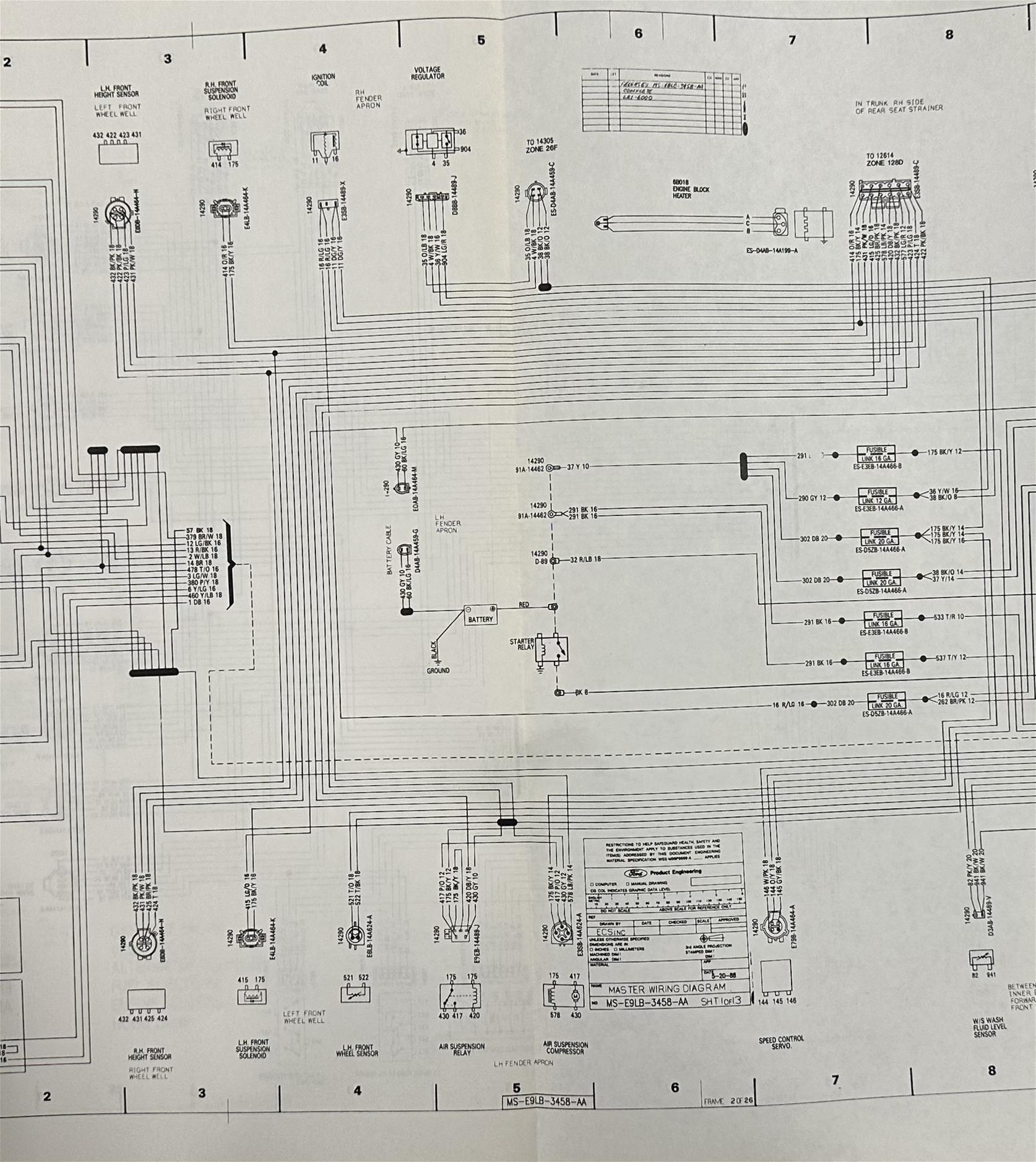

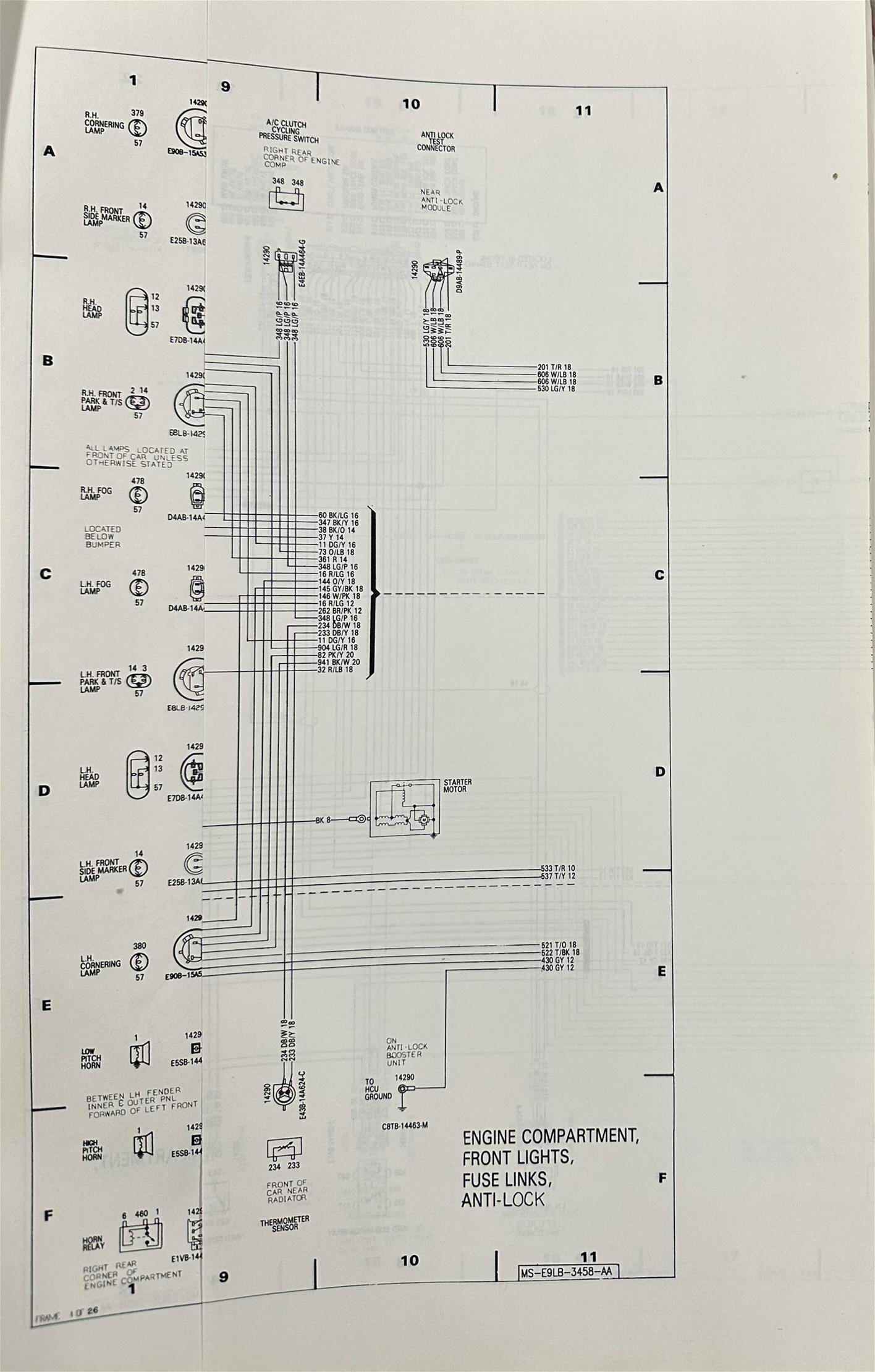

This is the original wiring diagram printed by Lincoln for dealer mechanics. You can follow the wiring in your vehicle from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 11" x 17" when folded up, and opens up to 11" by 27". Diagrams may be folded in half for shipping. The diagram pictured is an example of this type when unfolded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info—the factory wiring diagram.

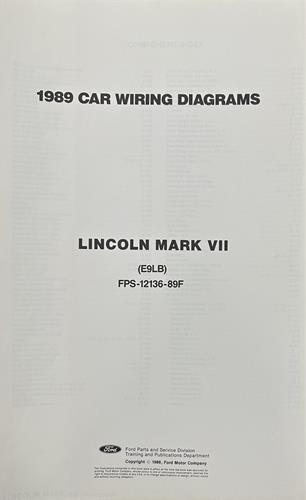

1989 Car Wiring Diagrams Lincoln Mark VII
This item is original.
17.00 x 11.00 x 0.25 inches
1989 Lincoln Mark VII Bill Blass Sedan 2-Door
1989 Lincoln Mark VII LSC Sedan 2-Door
1989 Lincoln Mark VII
