1955 Fisher Body Welding Assembly Manual Reprint - Oldsmobile Buick Century Special

Price: $49.00
  • Part #GM95555BBA11FLY1EAW
In stock now.
- +
This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.

  • Doors: Sound insulator, window frame, inner and outer panels
  • Front and rear seats: seat back and bottom, seat frames, springs
  • Underbody: how floor pan is welded in, and also how other parts are welded to floor pan
  • Rear quarter: wheelhouse, folding top compartment, fins, lock pillar, inner and outer quarter panels, trunk hinges
  • Roof: roof rails, dome lamp support
  • Side frame: inner and outer rocker panels, side roof rail
  • Final assembly: welding many of the above large parts to each other, glass channels, roof panels

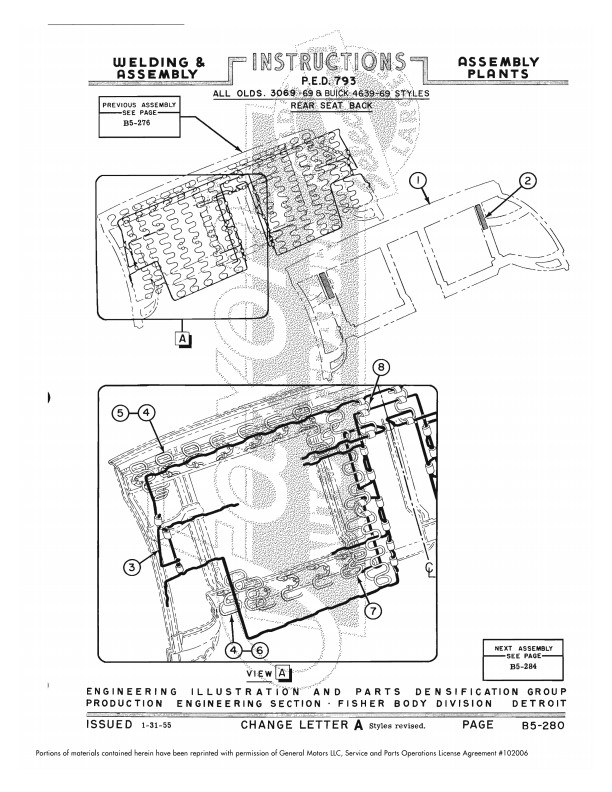

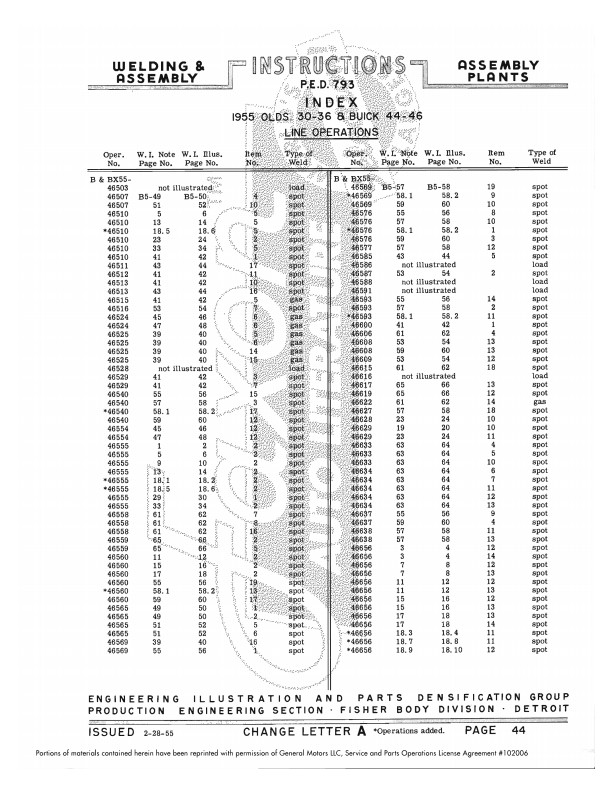

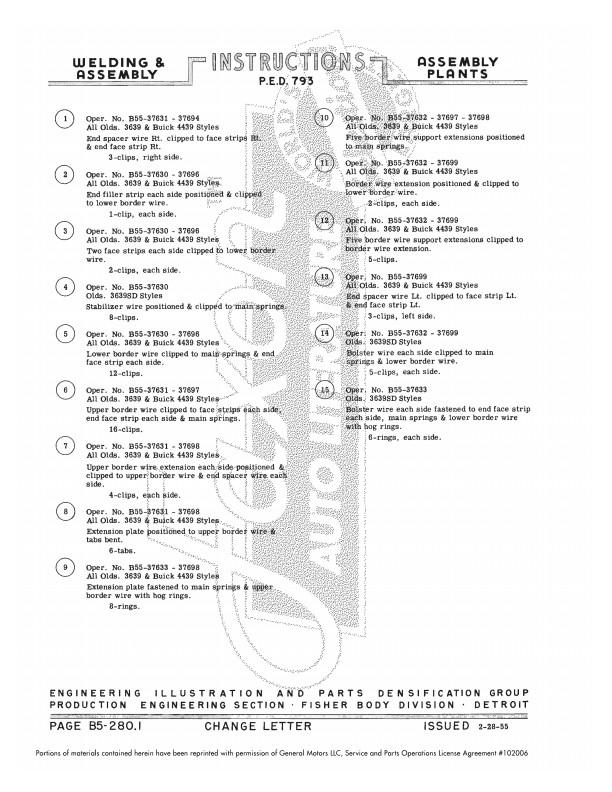

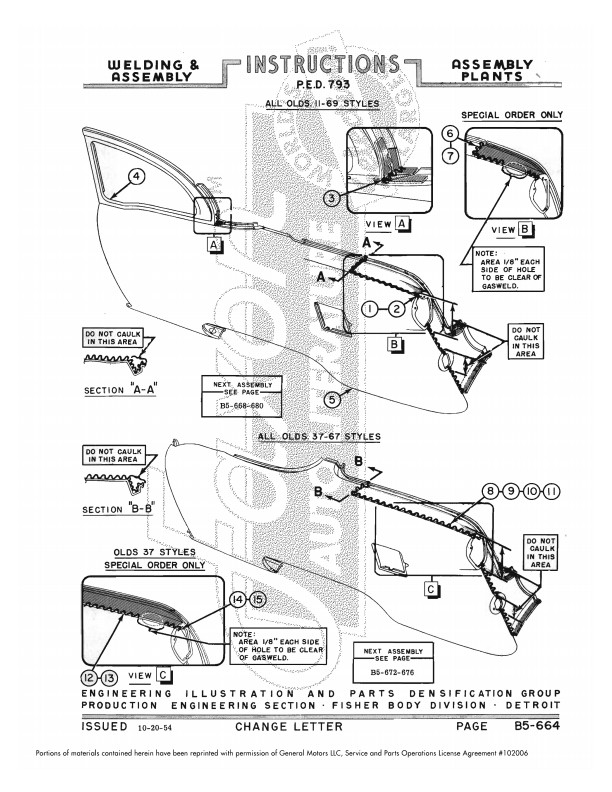

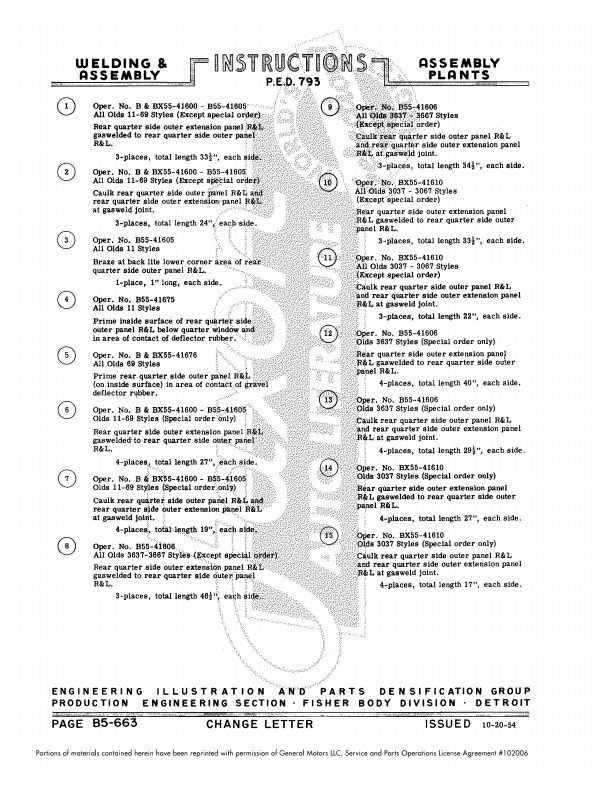

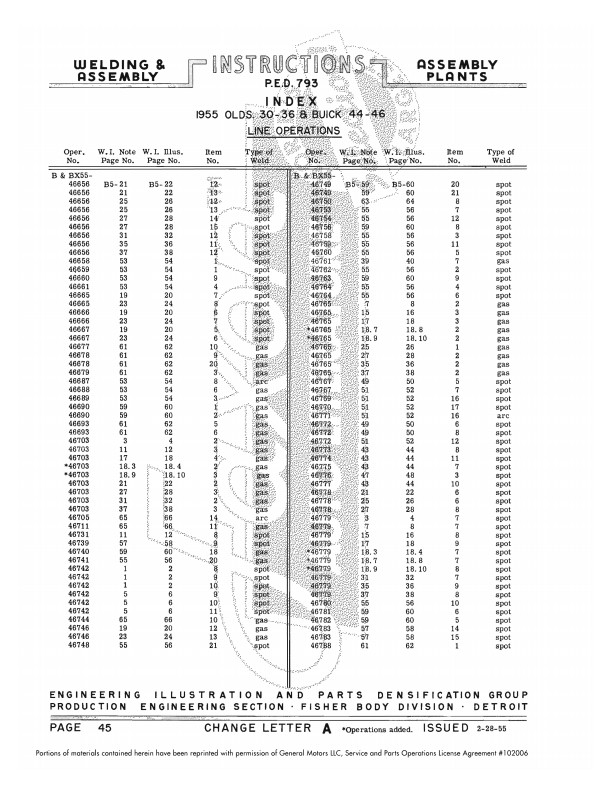

    The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the table of contents image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
  • Faxon Auto Literature
    "Welding Assembly Manual Instructions Specifications 1955 Buick Century Buick Special All Oldsmobile Assembly Plants"
    Sold Separately
    This item is a reproduction
    8.50 x 11.00 x 0.50 inches
    Write a Review
    This manual covers 1955 Buick and Oldsmobile B/BX bodies, including all Olds and Buick Century and Special. Includes all body styles, including coupe, sedan, and convertible coupe.
    1955 Buick Century
    1955 Buick Special
    1955 Oldsmobile 88
    1955 Oldsmobile 98
    1955 Oldsmobile Super 88
    1955 Buick Century 1955 Buick Special 1955 Oldsmobile 88 1955 Oldsmobile 98 1955 Oldsmobile Super 88
