1956 Chevrolet Pontiac Fisher Body Welding Assembly Manual Reprint

Price: $39.00
In stock now.
- +
This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you're replacing parts due to rust, you'll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.

  • Rear quarter: glass supports, folding top compartment, wheelhouse, trunk hinge supports, lock pillar, inner and outer quarter panels, tail lamp opening reinforcements, side roof rail, location of wiring clips, tailgate supports and hinges
  • Front End: cowl/firewall welds
  • Front and rear seats: seat back, bottom, and springs
  • Underbody: how floor pan is welded in, and also how other parts are welded to floor pan, Pontiac spare tire pan
  • Side frame: inner and outer rocker panels, front pillar, center pillar, rear pillar
  • Final assembly: welding many of the above large parts parts to each other, roof panels welded to window frames, dash

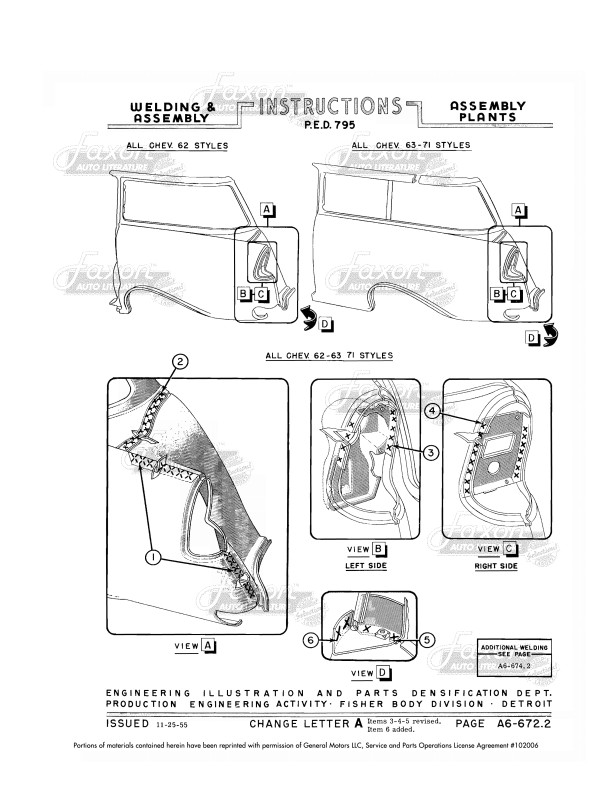

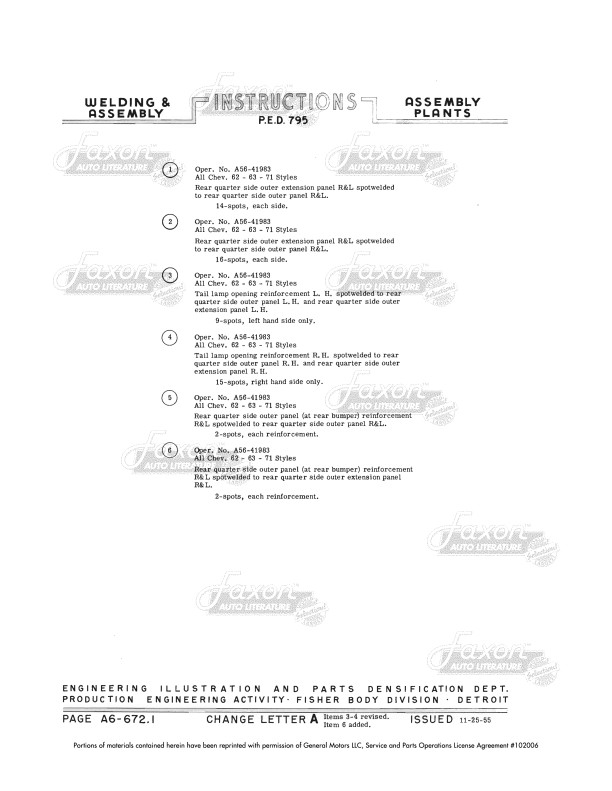

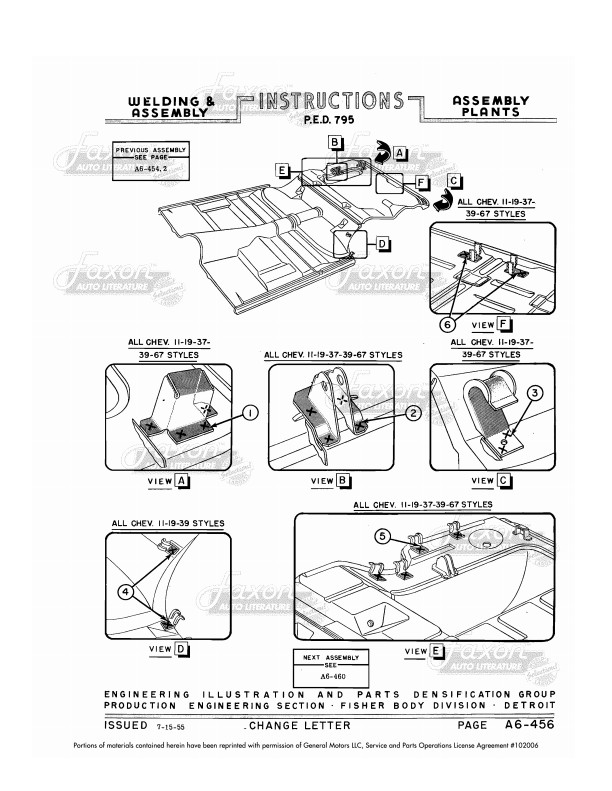

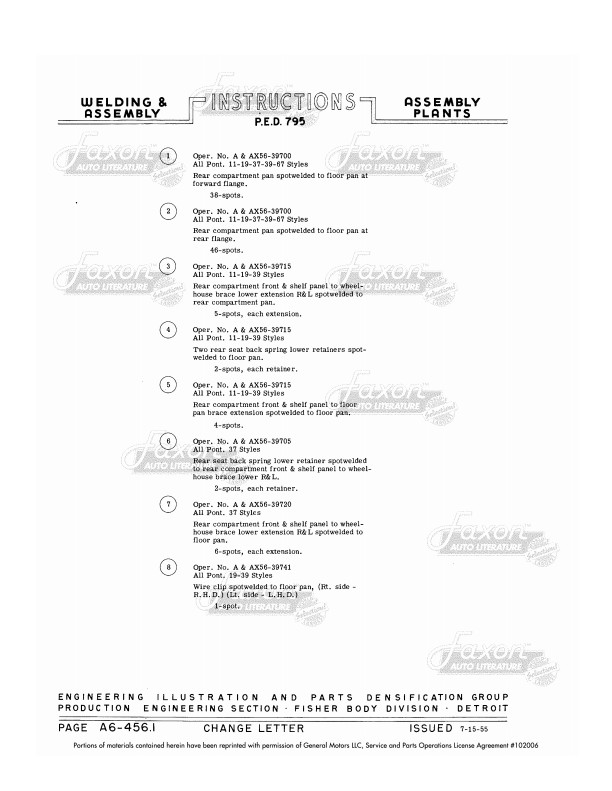

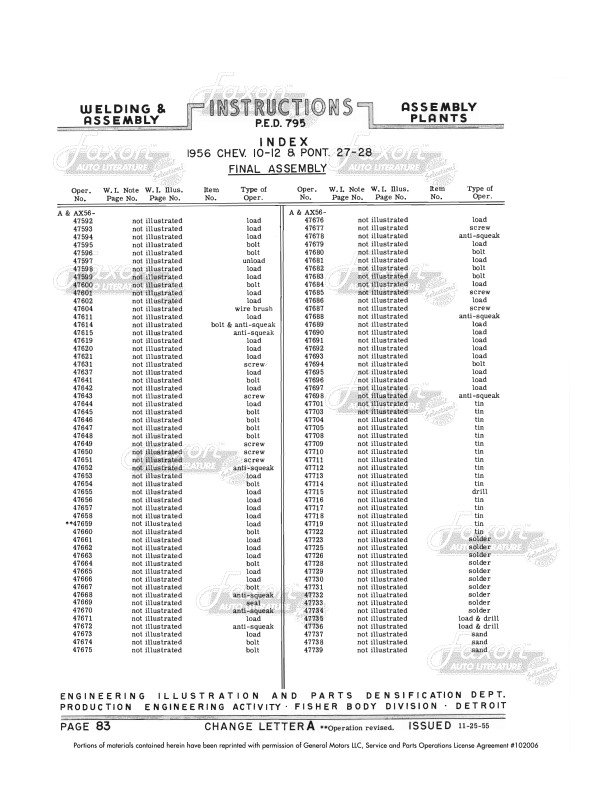

    The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the sample page image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
  • "Specifications Manual Chevrolet Cars and Pontiac Welding Assembly Manual 1956"
    Sold Separately
    This item is a reproduction
    8.30 x 10.75 x 1.00 inches
    Write a Review
    This manual covers 1956 Chevrolet and Pontiac cars, with all body styles including 2-door sedan, 4-door sedan, coupe, 4-door hardtop, convertible, 2-door wagon, 4-door station wagon, and sedan delivery.
