1959 Chevrolet and Pontiac Fisher Body Welding Assembly Manual Reprint

Price: $39.00
  • Part #GM95959AAA11FLY1EAW
In stock now.
- +
This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.

  • Front End: how dash is welded in, firewall welds
  • Rear quarter: inner and outer quarter panels, fins, lock pillar, gas tank filler neck, folding top compartment, wheelhouse, seatback, trunk hinges
  • Front and rear seats: seat back and bottom, seat frames, springs
  • Underbody: how floor pan is welded in, and also how other parts are welded to floor pan and rocker panels
  • Roof: roof rails, dome lamp support
  • Side frame: inner and outer rocker panels, front pillar, center pillar, rear pillar
  • Final assembly: welding many of the above large parts to each other, parts welded to shroud, glass channels, roof panels, attaching doors and tailgate

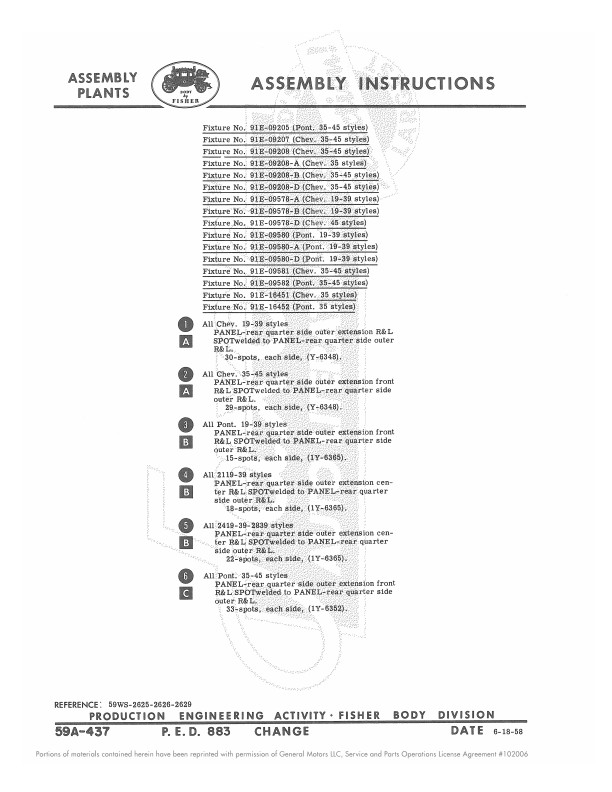

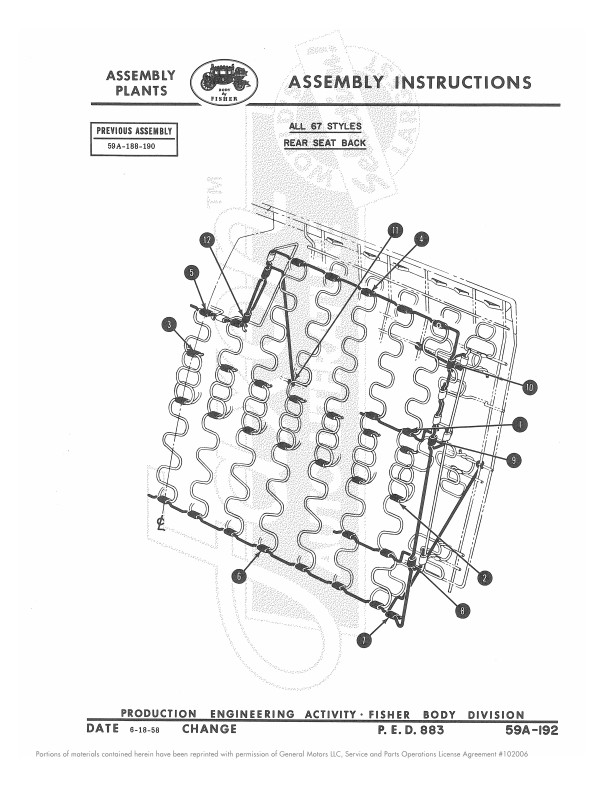

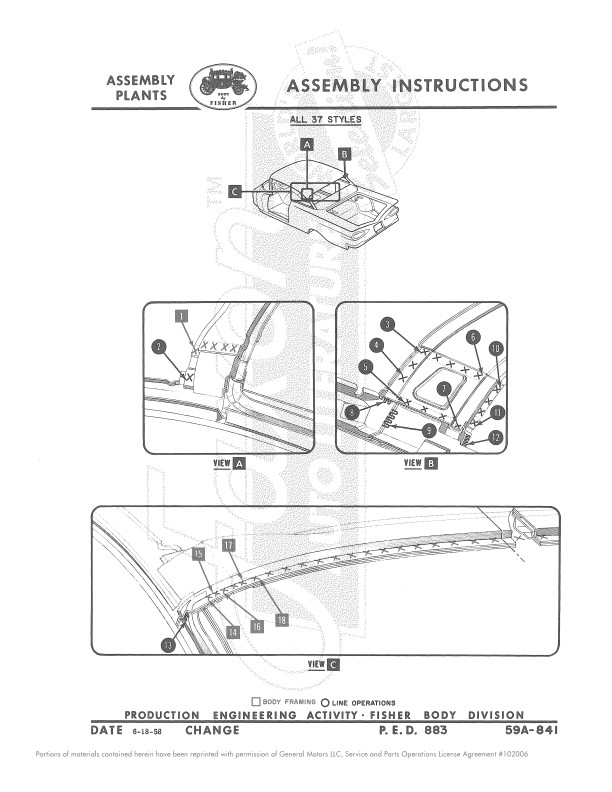

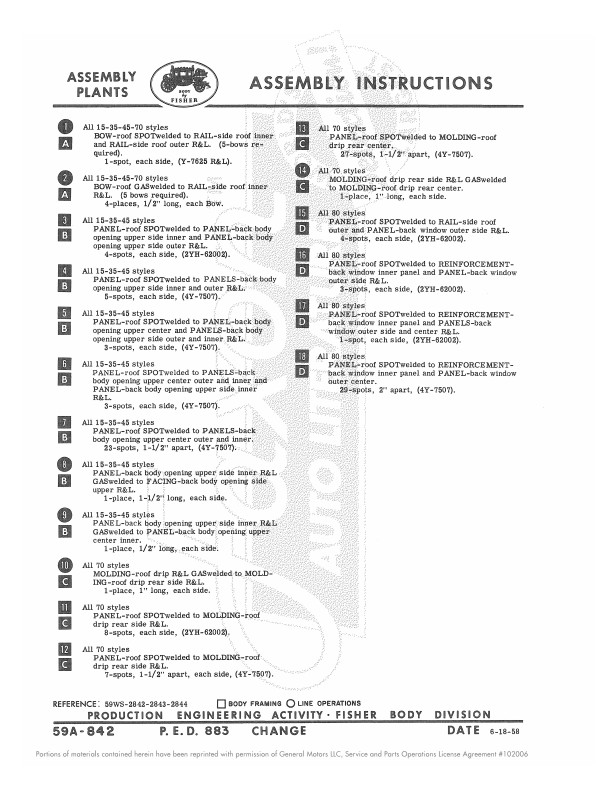

    The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the table of contents image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
  • Faxon Auto Literature
    "Assembly Plants 1959 Chevrolet Pontiac Body Welding Assembly Manual"
    590
    Sold Separately
    This item is a reproduction
    8.30 x 11.00 x 1.25 inches
    GM95959AAA11FLY1EAW
    Write a Review
    Includes all body styles, including coupe, sedan, convertible, station wagon, sedan delivery, and El Camino.
