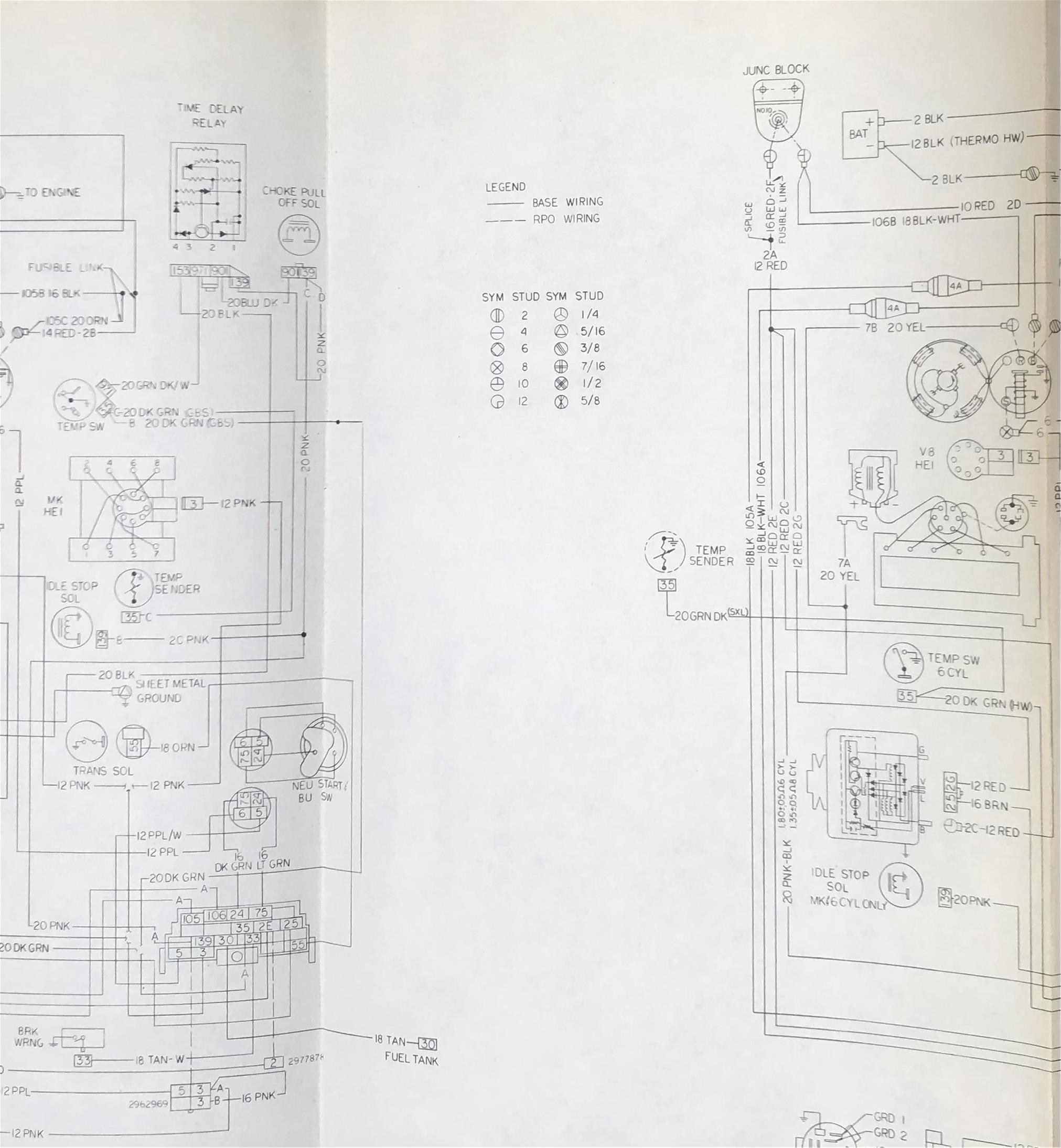

This is the original wiring diagram printed by GM for dealer mechanics. You can follow the wiring in your truck from bumper-to-bumper. It will help you to understand connector configurations, and locate & identify circuits, relays, and grounds. Although the schematic is in black and white, the color of each wire is noted. You will not find this diagram in your shop manual. The schematic measures 8.5" x 11" when folded up, and opens up to 11" by 38". The diagram pictured is an example of this type when folded, but is not the actual diagram for your vehicle. Buy now for the best electrical repair info - the factory wiring diagram.

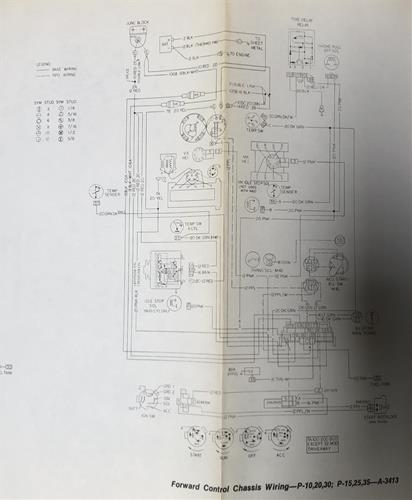

"Forward Control Chassis Wiring - P-10, 20, 30; P-15, 25, 35 A-3413"
This item is original.
11.00 x 8.50 x 0.10 inches
Write a Review
This manual covers 1975 Chevy & GMC forward control truck chassis, including three-quarter ton, one ton, P 10, P 20, P 30, P 15 P 25, P35. See my other items for the motorhome chassis wiring diagram. To verify that this is the correct diagram for your truck, you can check your VIN code. The 2nd digit should be a P for the forward control model, the 4th digit should be a 1, 2, or 3 to indicate the 10-35 series, the 5th digit should be a 2 for the chassis cowl, and the 6th digit should be a 5 for the 1975 model year.
