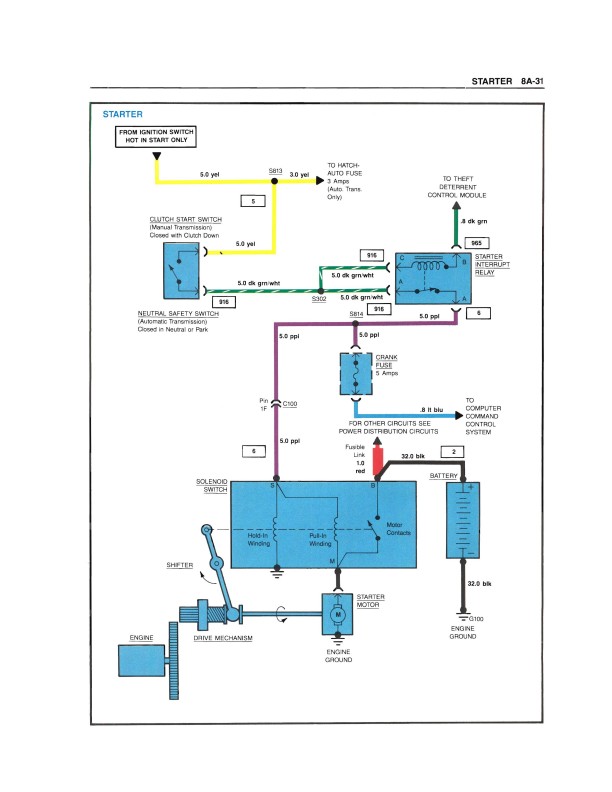

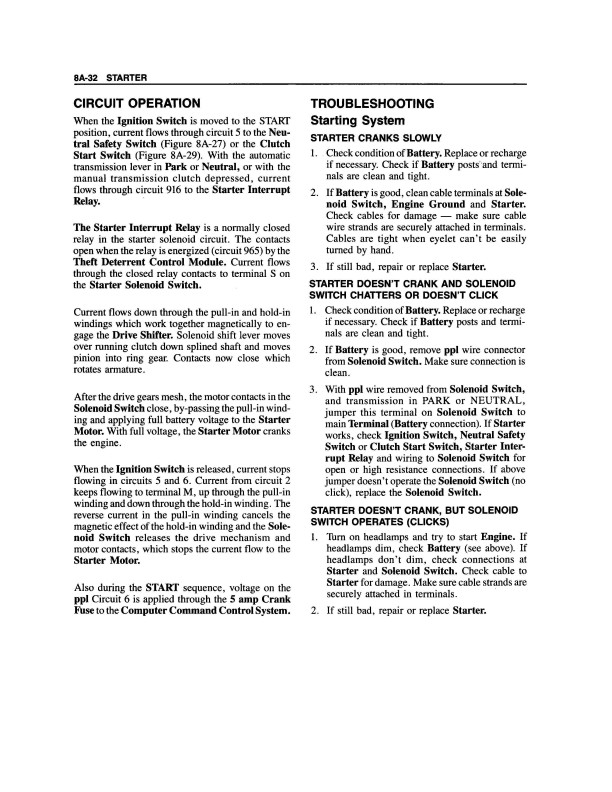

Written for Chevrolet dealership mechanics, this book will help you troubleshoot or diagnose electrical problems. You will find electrical circuit diagrams broken down so that you can perform specific tests. Look for troubleshooting maps and/or diagnostic trees designed to take you through the process of finding your problem step by step. The specifications in this book will help you to understand connector configurations, and locate & identify harnesses, circuits, relays, and grounds. This type of book can be used in place of a wiring diagram--and was by Chevy. About a third of the pages of this book are in color and are reproduced here in color. Buy now for the best electrical information available.
"1984 Corvette Electrical Troubleshooting Shop Manual Supplement"
This item is a reproduction
11.00 x 8.30 x 0.30 inches
This book covers all 1984 Corvette models.
1984 Chevrolet Corvette Hatchback 2-Door
