This book is a reproduction of a manual originally used by workers on the factory assembly lines putting cars together. You'll see page after page of detailed illustrations of how each part fits others. Use the part numbers and illustrations to help you verify original parts, to reassemble parts you are restoring, or to replace missing parts. You’ll find detailed parts illustrations and torque specs you haven’t seen anywhere else.
This reprinted manual gives you assembly illustrations for attaching parts to your chassis and engine, including hoses, belts, lines, linkages, and mounts. It does NOT show internal engine parts (pistons, for example). Use this manual to help you add or remove engine equipment, and/or to help identify parts that may be missing or incorrect. You will find illustrations for assembly of:
- carburetor (shows carburetor installation, but not internal carburetor parts),
- throttle body air cleaner
- radiator hoses, fan, and motor
- coolant recovery system
- belts for alternator, power steering, and air conditioning compressor
- accelerator pedal
- throttle control and ajdustment
- aspirator
- enigne supports
- oil filter
- crankcase vent system
- vapor canister and hose routing
- EGR system
- starter
- ignition cables
- speedometer drive pinion
- drive shafts
- gearshift controls
- clutch and flyweel
- torque plate and converter
- clutch pedal and linkage
- exhaust sytem
- fuel tank
- speed control
- engine block heater
- power steering hoses
- suspension
- steering gear and linkage
- steering column
- steering wheel
- brakes (disc and drum)
- power brake booster vacuum hoses
- brake pedal, bracket, booster, and lines
- parking brake lever and controls
- wheels

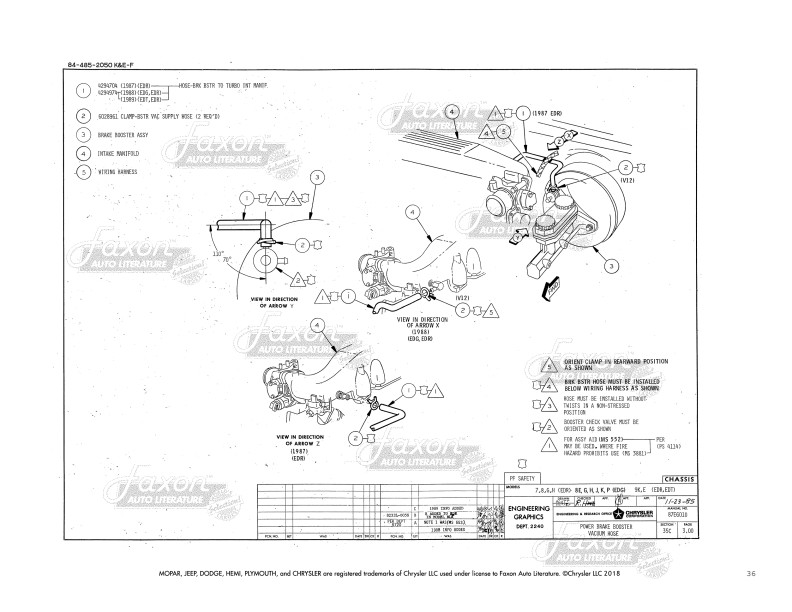

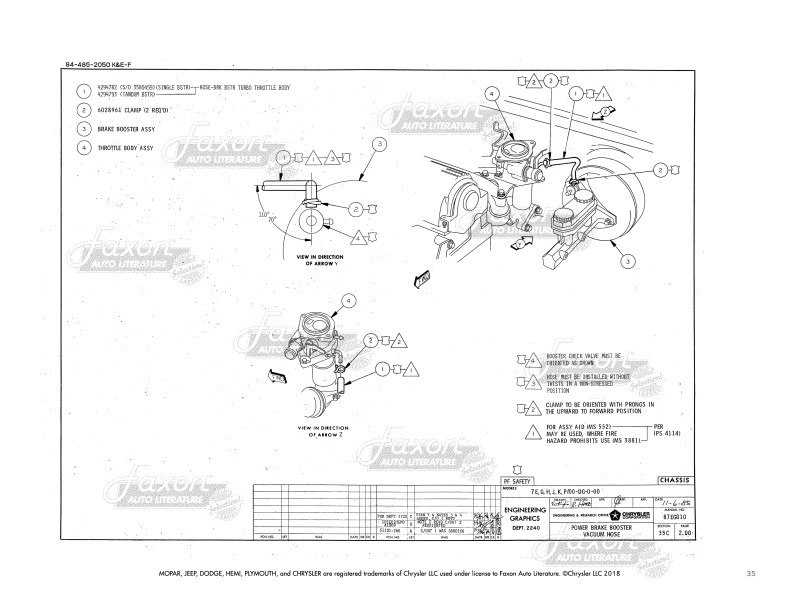

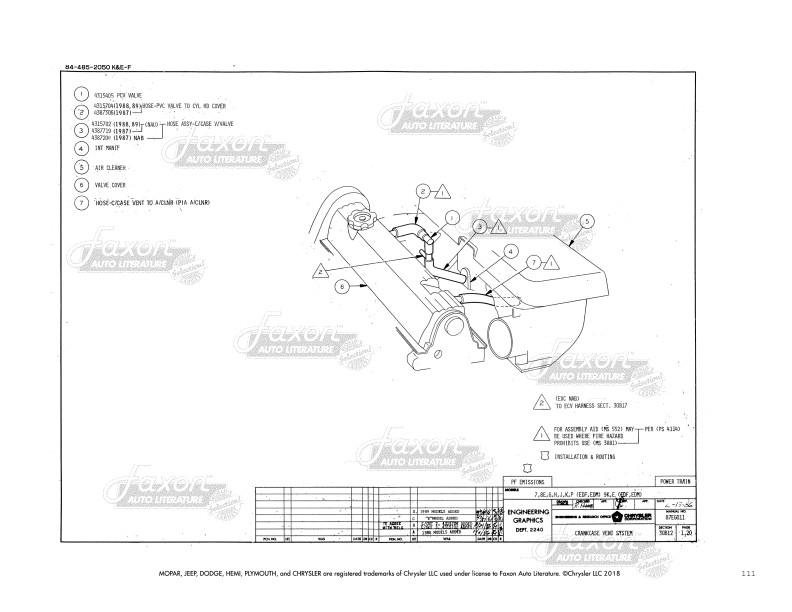

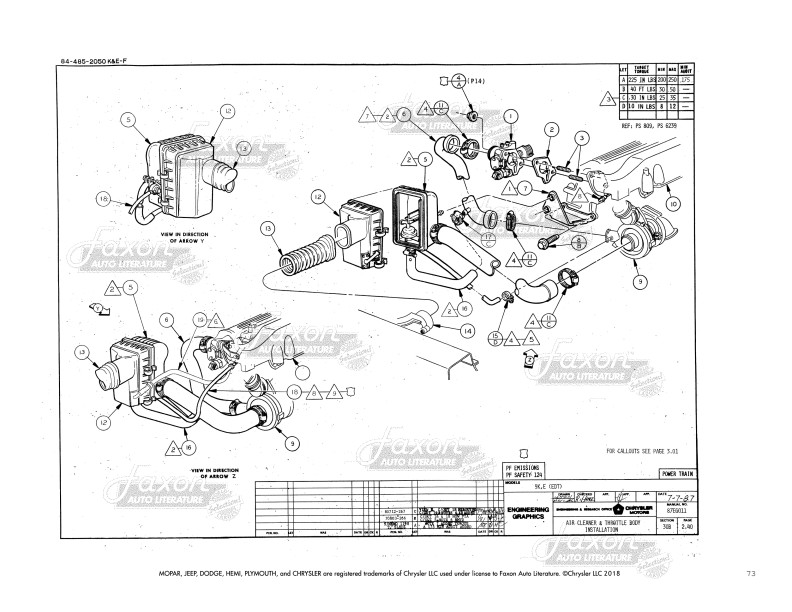

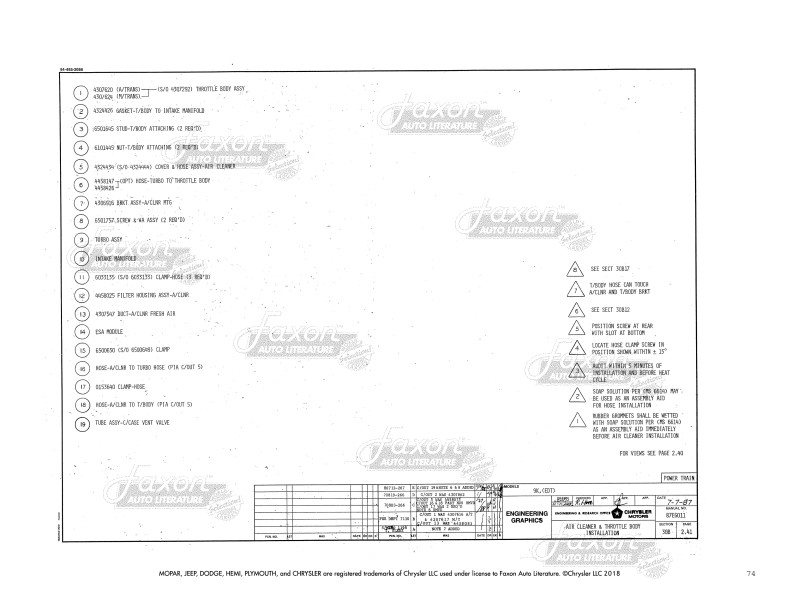

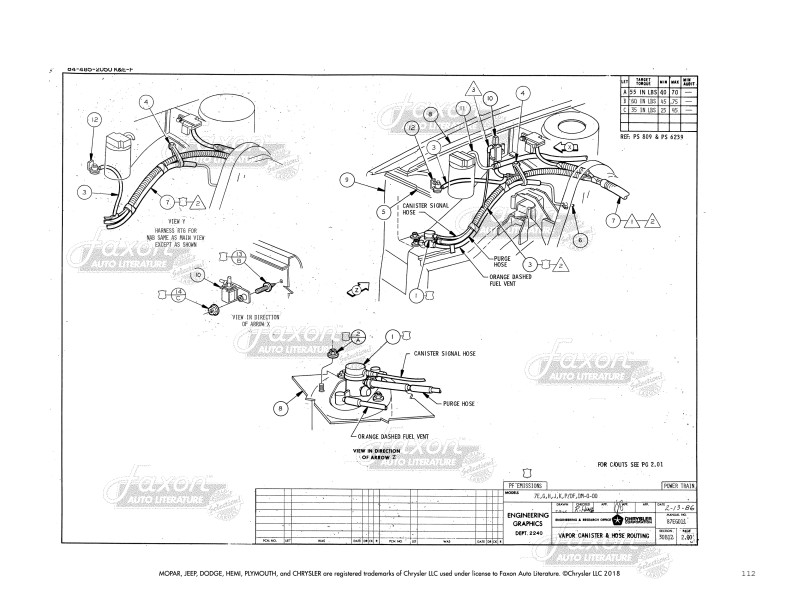

Please see the sample page image. All pages are watermarked with a background image like the sample page.The book shows exploded views of these parts and includes original part numbers. There are illustrations on just about every one of the book's pages. New condition. Buy now to own this information you won’t find anywhere else.
