This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.
- Front and rear seats: seat back and bottom, seat frames, springs
- Underbody: how floor pan is welded in, and also how other parts are welded to floor pan
- Front End: how dash is welded in
- Rear quarter: wheelhouse, folding top compartment, lock pillar, inner and outer quarter panels
- Roof: roof rails, dome lamp support
- Side frame: inner and outer rocker panels, side roof rail
- Final assembly: welding many of the above large parts to each other, glass channels, roof panels.

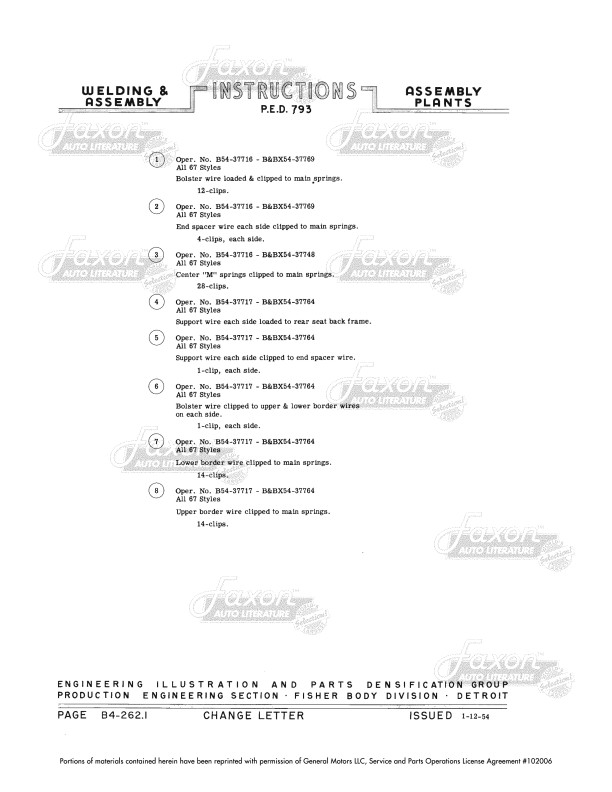

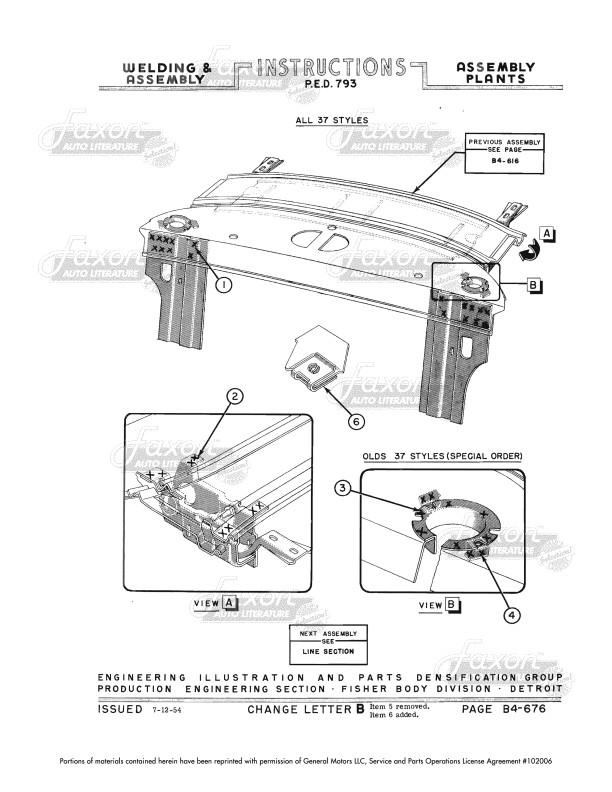

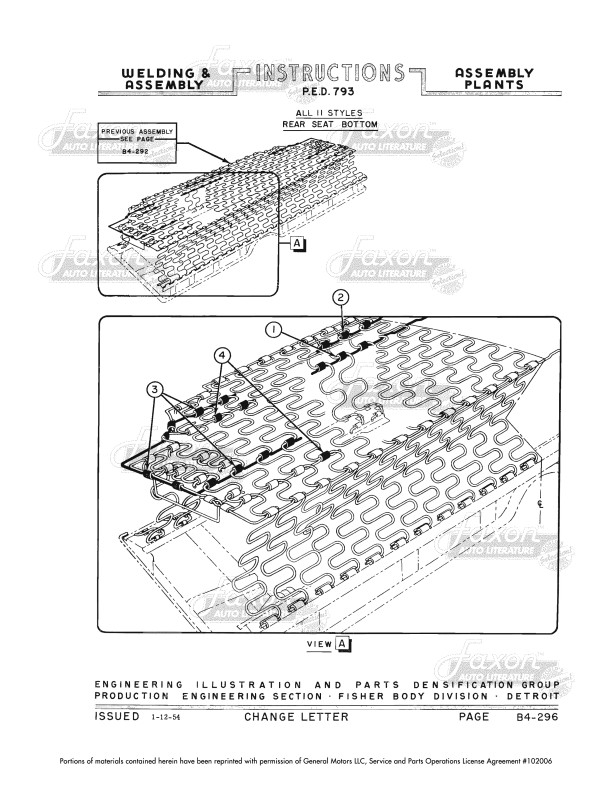

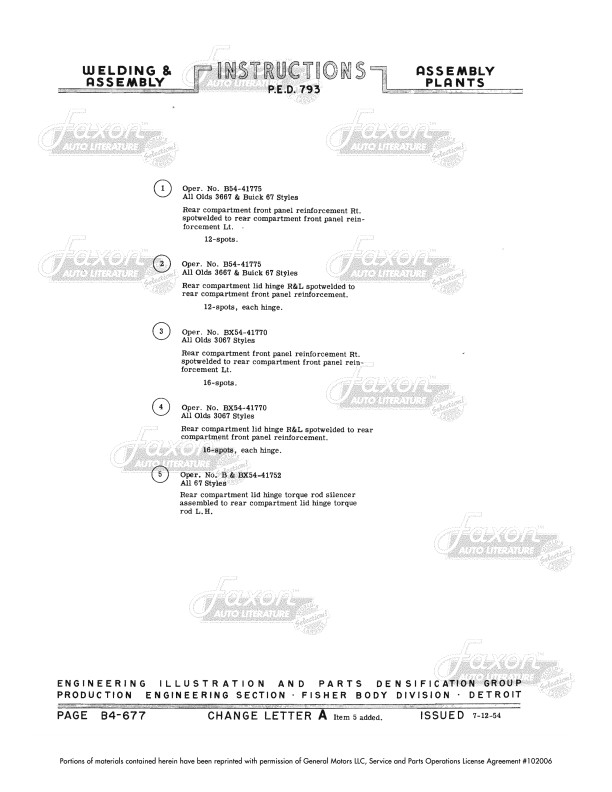

The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the table of contents image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
