This assembly manual is unlike anything you've ever seen. This Fisher body plant assembly manual shows how metal body parts are welded together - it shows the location of hundreds of welds. It’s helpful for hidden welds holding up parts you might need to remove and replace. If you’re replacing parts due to rust, you’ll find out how to replace mounting parts that have rusted away. The book is particularly useful if the car has had damage from a wreck. You learn the specific type of weld (stitch, gas, seam, etc.) that was originally used in each location.
- Rear quarter: Inner and outer quarter panels, wheelhouse, glass supports, arm rest supports, wiring clips
- Dome lamp support
- Seat springs
- Side frame: inner and outer rocker panels, front pillar, center pillar, rear pillar
- Underbody: how floor pan is welded in, and also how other parts are welded to floor pan and rocker panels
- Final assembly: welding many of the above large parts parts to each other, parts welded to shroud, roof panels, glass channels, hood hinges
In addition to the above information that applies to all models, a few sections apply only to specific models: - Buick dash
- Cadillac Fleetwood 75 - inner and outer doors, center partition, roof rails, seat frame

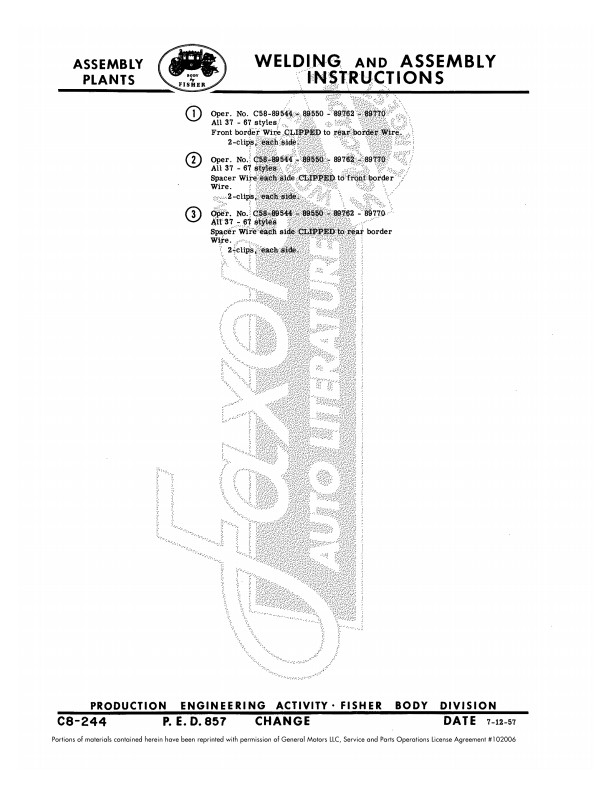

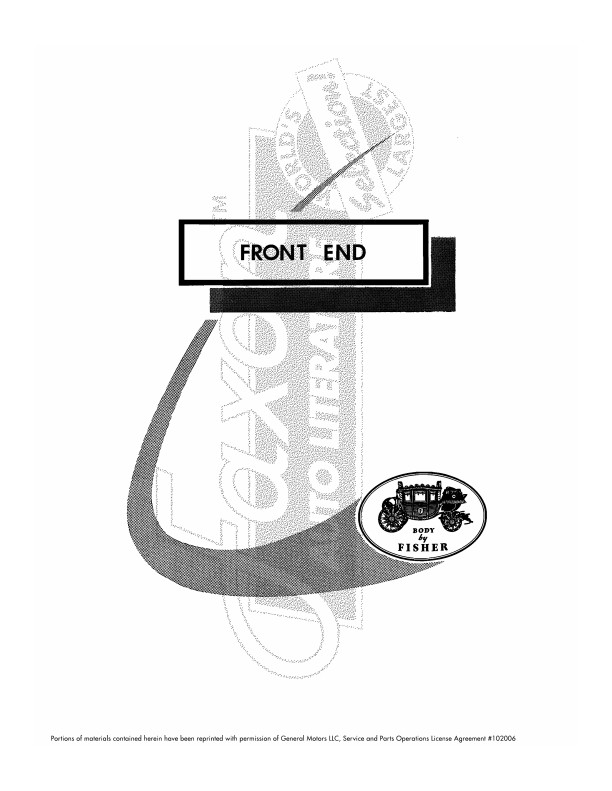

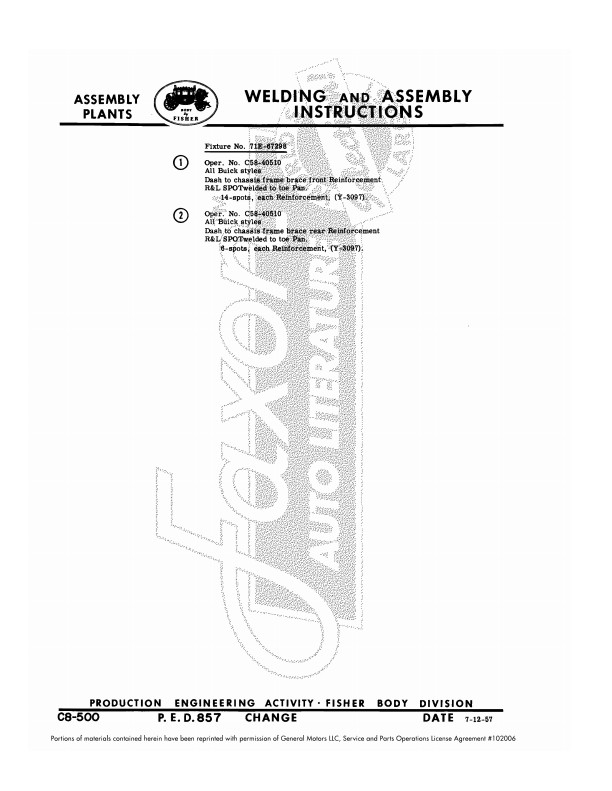

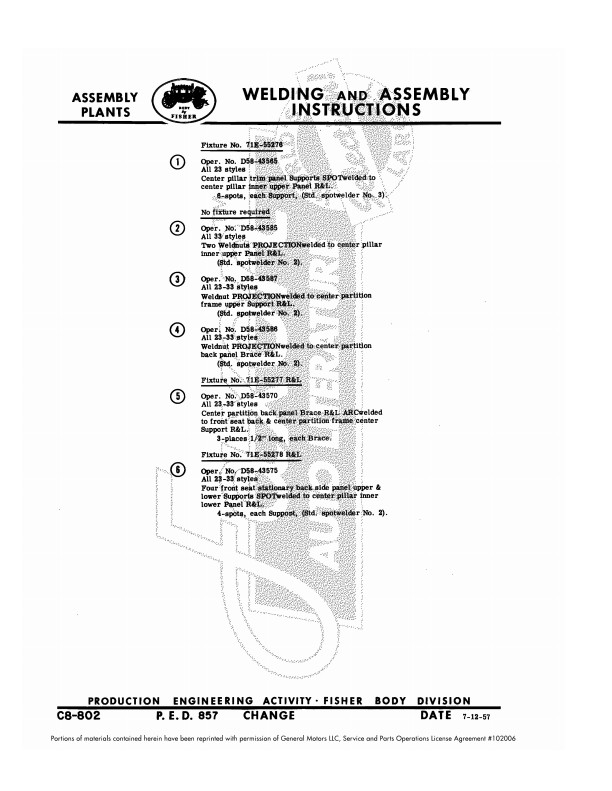

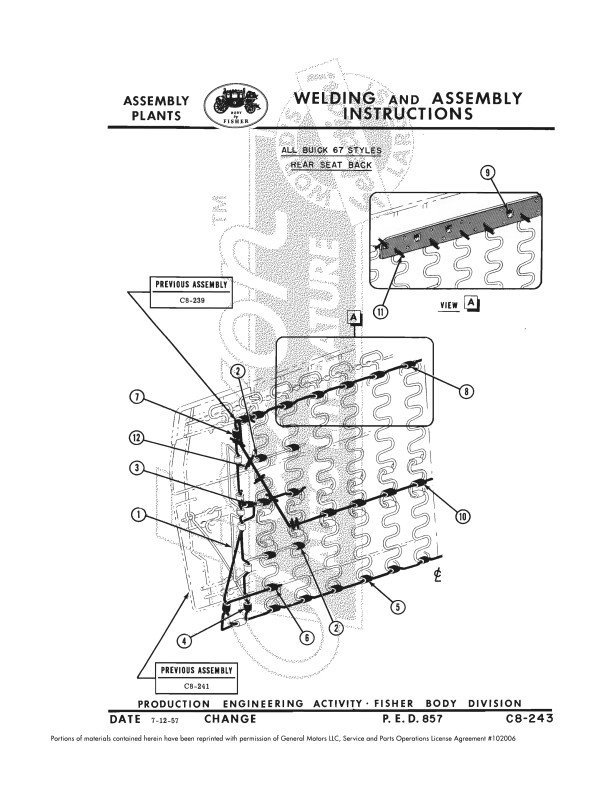

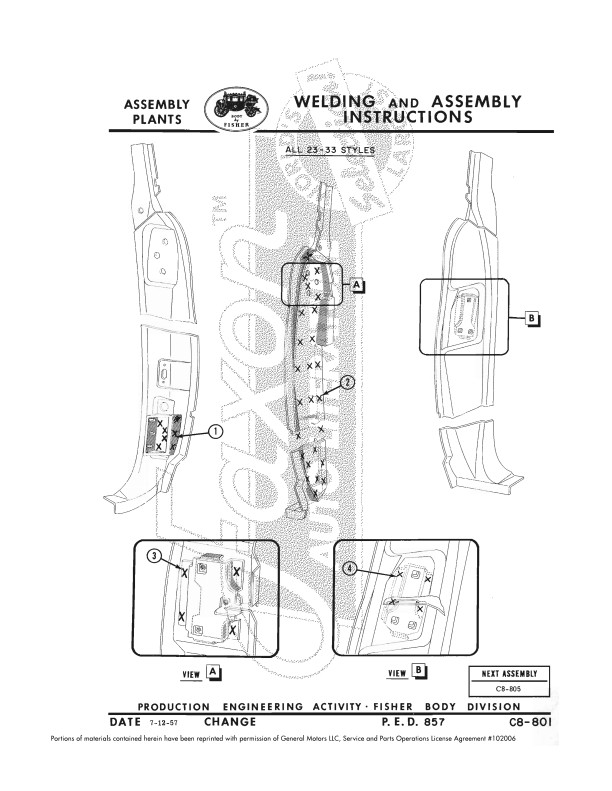

The book covers cars from the firewall back; the hood and front fenders are not covered (because these were assembled at the chassis assembly plant and not the Fisher body plant). Please see the sample page image. All pages are watermarked with a background image like the sample page. Buy now to own this hard-to-find manual.
