1987-1989 Dodge Truck & Van Power Train Assembly Manual Reprint

Price: $29.00
  • Part #DB98789VNC11FLY1EAE
In stock now.
- +
This book is a reproduction of a manual originally used by workers on the factory assembly lines putting vehicles together. You'll see page after page of detailed illustrations of how each part fits others.  Use the part numbers and illustrations to help you verify original parts, to reassemble parts you are restoring, or to replace missing parts. You’ll find detailed parts illustrations and torque specs you haven’t seen anywhere else. This reprinted manual gives you assembly illustrations for attaching parts to your engine, including hoses, belts, lines, linkages, and mounts. It does NOT show internal engine parts (pistons, for example) or internal transmission parts. Use this manual to help you add or remove engine equipment, and/or to help identify parts that may be missing or incorrect. Sections include:

  • air pump
  • air cleaner, air heater, and air intake
  • engine mounts
  • oil filter
  • engine vent system
  • EGR system
  • exhaust system
  • engine block heater
  • starter
  • ignition coil and cables
  • clutch linkage
  • tranmission
  • shifter
  • transfer case
  • prop shaft
  • fuel system (lines and tank)

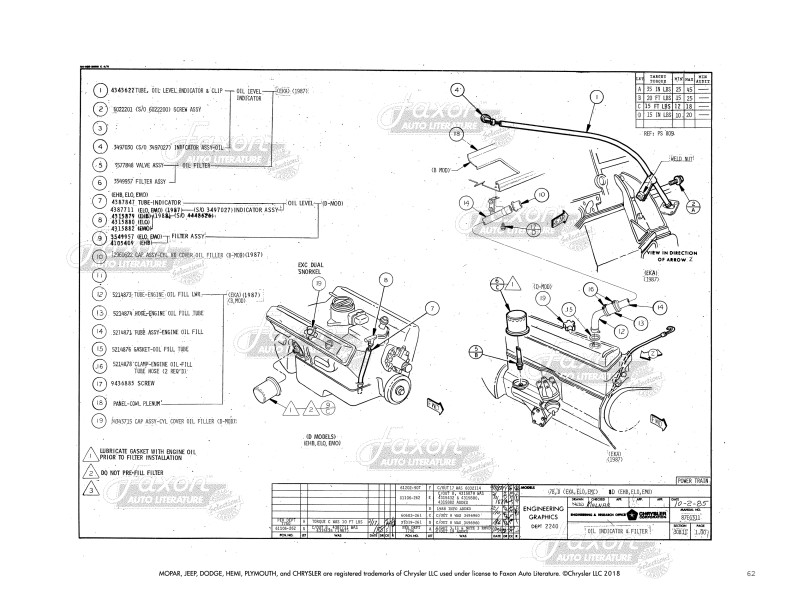

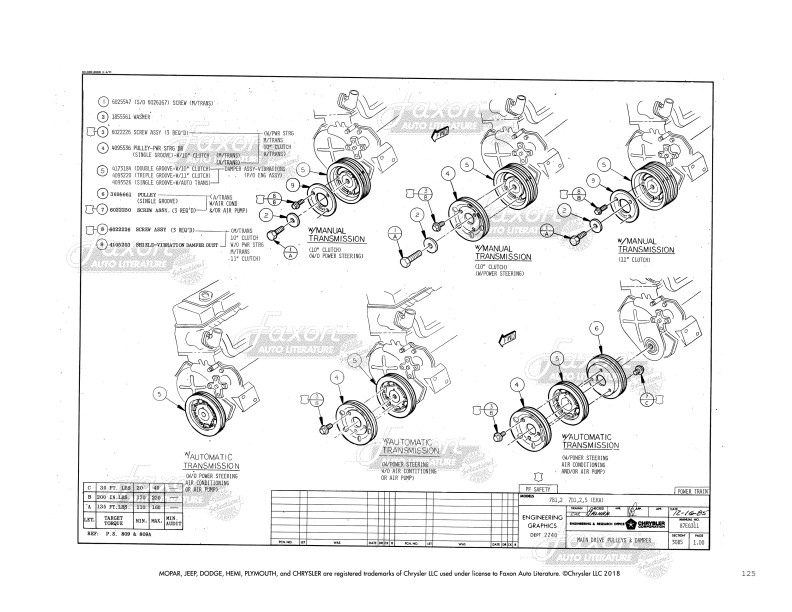

The book shows exploded views of these parts and includes original part numbers. There are illustrations on just about every one of the book's pages. This 8.5 x 11 inch book is in new condition. Like all assembly manuals, this is reproduced from a book made for use inside the factory, and never intended for the public. Therefore, the print (like the print in original assembly manuals) is occasionally light. We have made every effort to restore the book where possible. Buy now to own this never before available book.
316
"1987-1989 Assembly Manual Power Train Rear Wheel Drive Van/Wagon D&W 100-350 Ramcharger"
Faxon Auto Literature
Sold Separately
This item is a reproduction
10.80 x 8.30 x 0.70 inches
DB98789VNC11FLY1EAE
Write a Review
Includes both gas and diesel engines.
