1969 Dodge Charger Engine Equipment Assembly Manual Reprint

Price: $24.00
In stock now.
- +

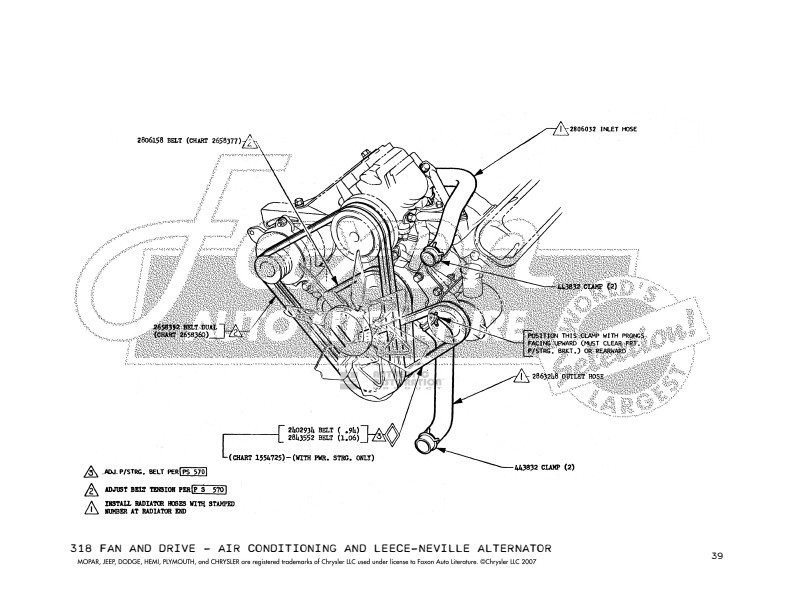

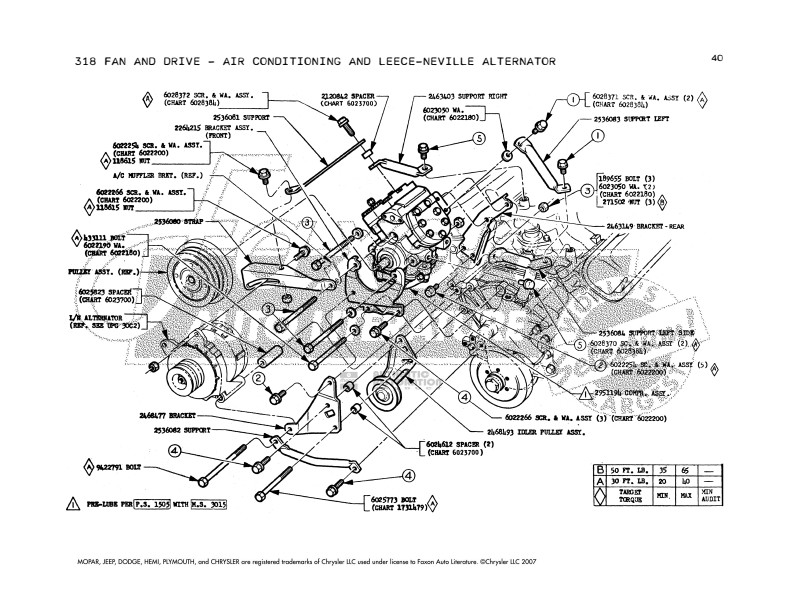

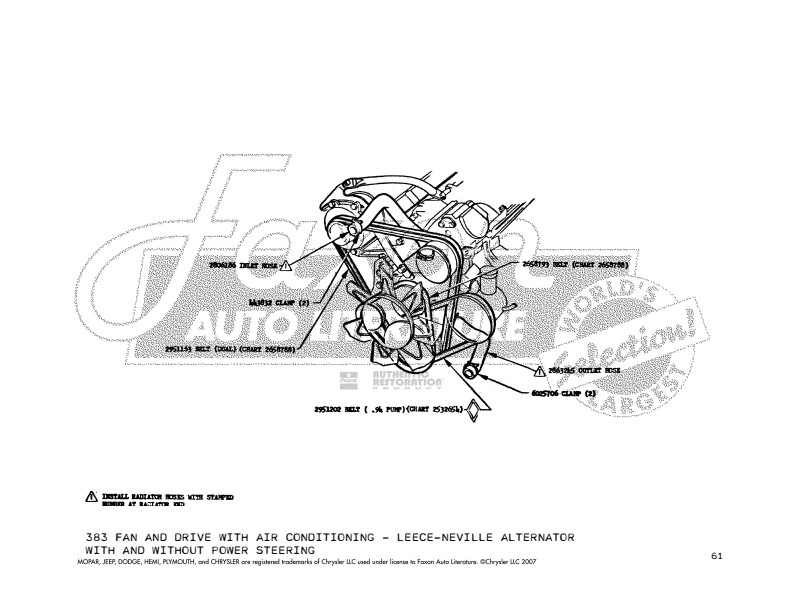

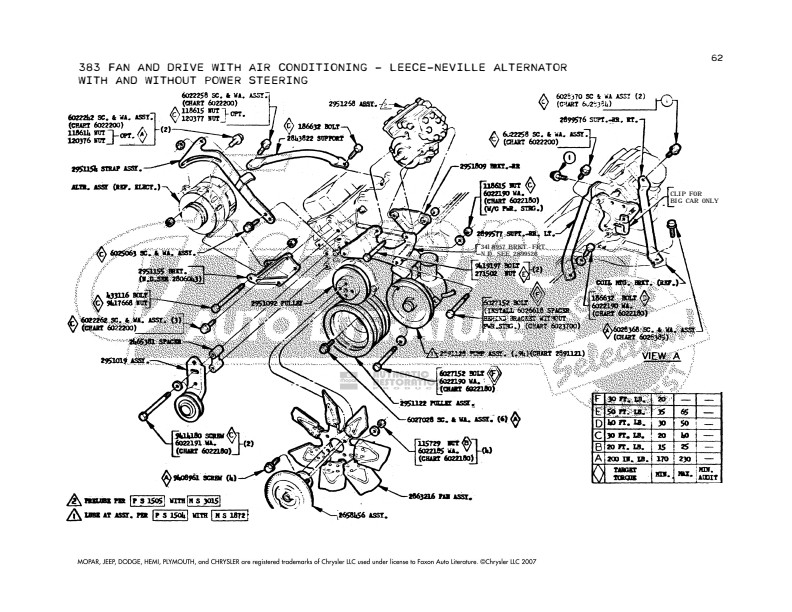

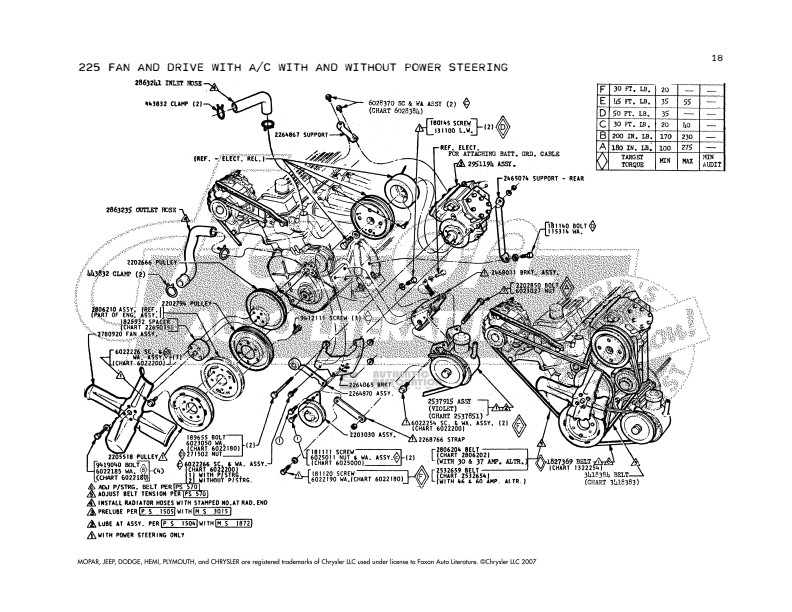

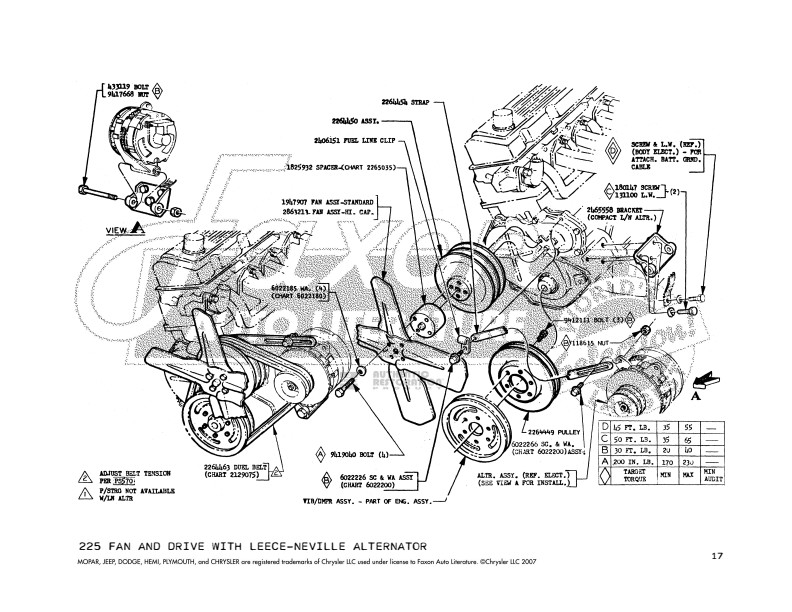

This book is a reproduction of a manual originally used by workers on the factory assembly lines putting cars together. You'll see page after page of detailed illustrations of how each part fits others. Use the part numbers and illustrations to help you verify original parts, to reassemble parts you are restoring, or to replace missing parts. You’ll find detailed parts illustrations and torque specs you haven’t seen anywhere else. This reprinted manual gives you assembly illustrations for attaching parts to your engine, including hoses, belts, lines, linkages, and mounts. It does NOT show internal engine parts (pistons, for example). Use this manual to help you add or remove engine equipment, and/or to help identify parts that may be missing or incorrect. You will find illustrations for assembly of carburetor (shows carburetor installation, but not internal carburetor parts), fuel lines, vacuum lines, throttle linkage (including adjustment instructions), accelerator pedal, fan and drive, engine mounts/supports, and starter. The book shows exploded views of these parts and includes original part numbers. There are illustrations on just about every one of the book's 106 pages. Covers all 1969 Dodge Chargers, including 500, SE, and R/T models. It shows all engines, including 225, 318, 383, 440, and 426 Hemi. This 8.5 x 11 inch book is in new condition. Like all assembly manuals, this is reproduced from a book made for use inside the factory, and never intended for the public. Therefore, the print (like the print in original assembly manuals) is occasionally light. We have made every effort to restore the book where possible. It includes a page title for each picture and a table of contents. Buy now to own this never before available book.
106
"1969 Dodge Engine Assembly Manual Charger, 500, SE, and R/T"
Sold Separately
This item is a reproduction
11.00 x 8.50 x 0.31 inches
DB96969CRA11FLY1EAN
includes toc and index
Write a Review
This manual covers all 1969 Dodge Chargers, including 500, SE, and R/T models.
1969 Dodge Charger
1969 Dodge Charger 500
1969 Dodge Charger R/T
1969 Dodge Charger SE
